G-20242
Regulus

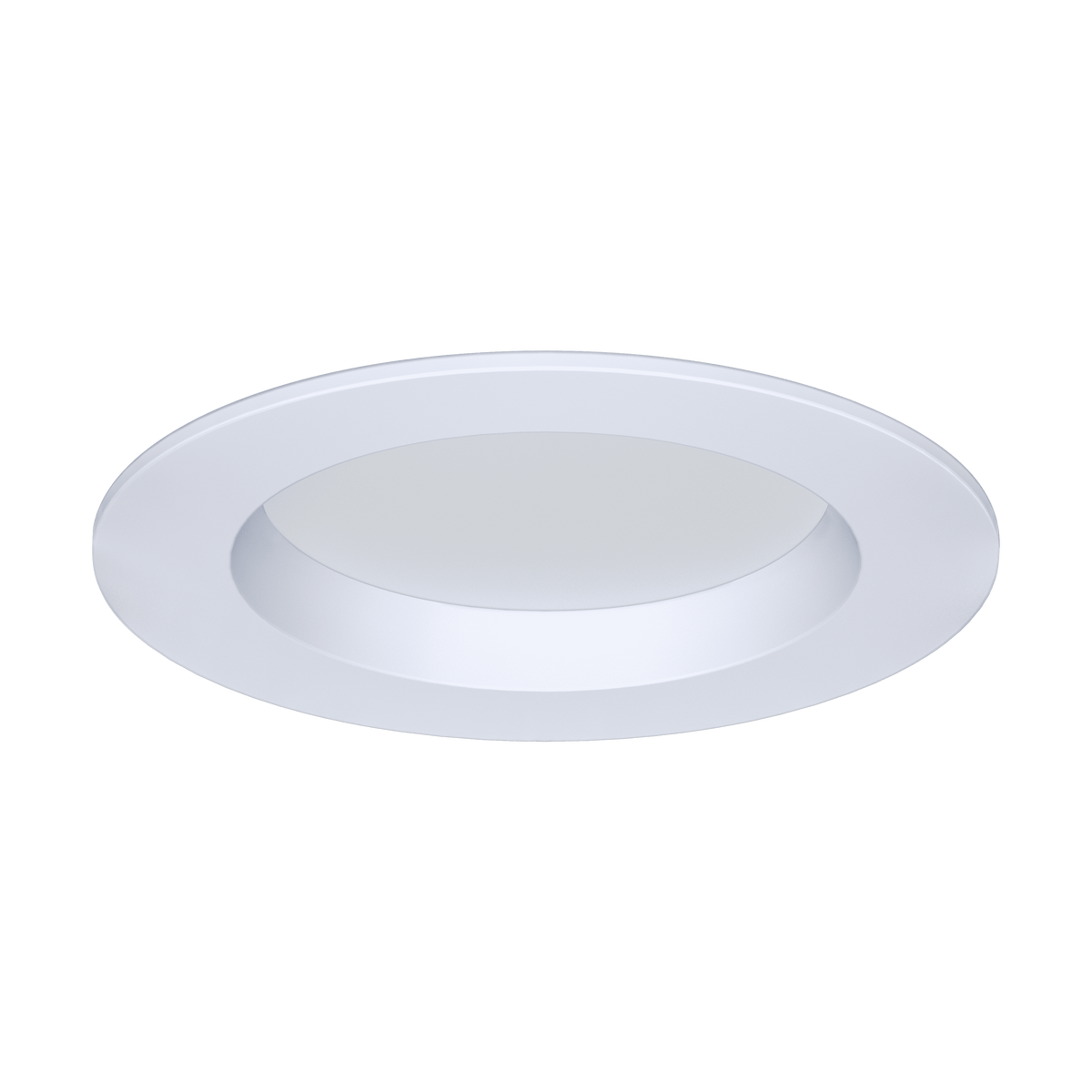

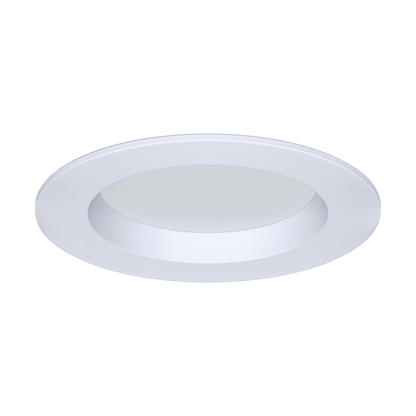

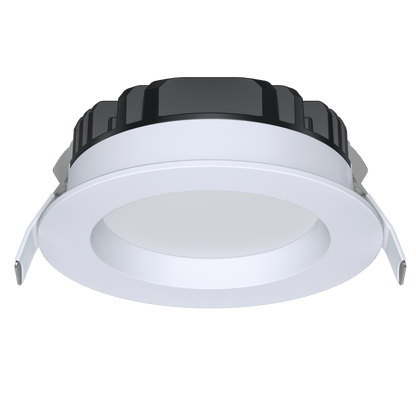

5" round regress slim

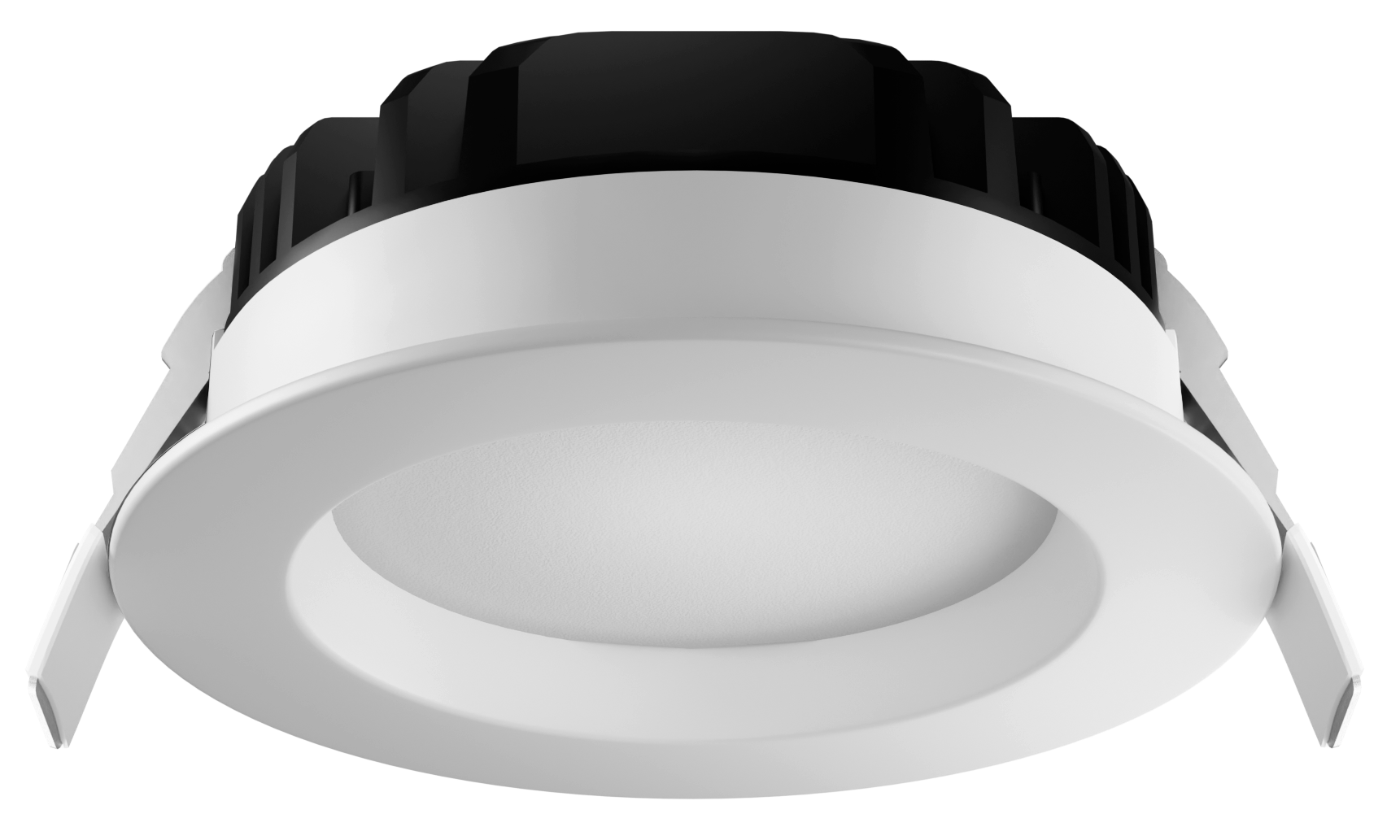

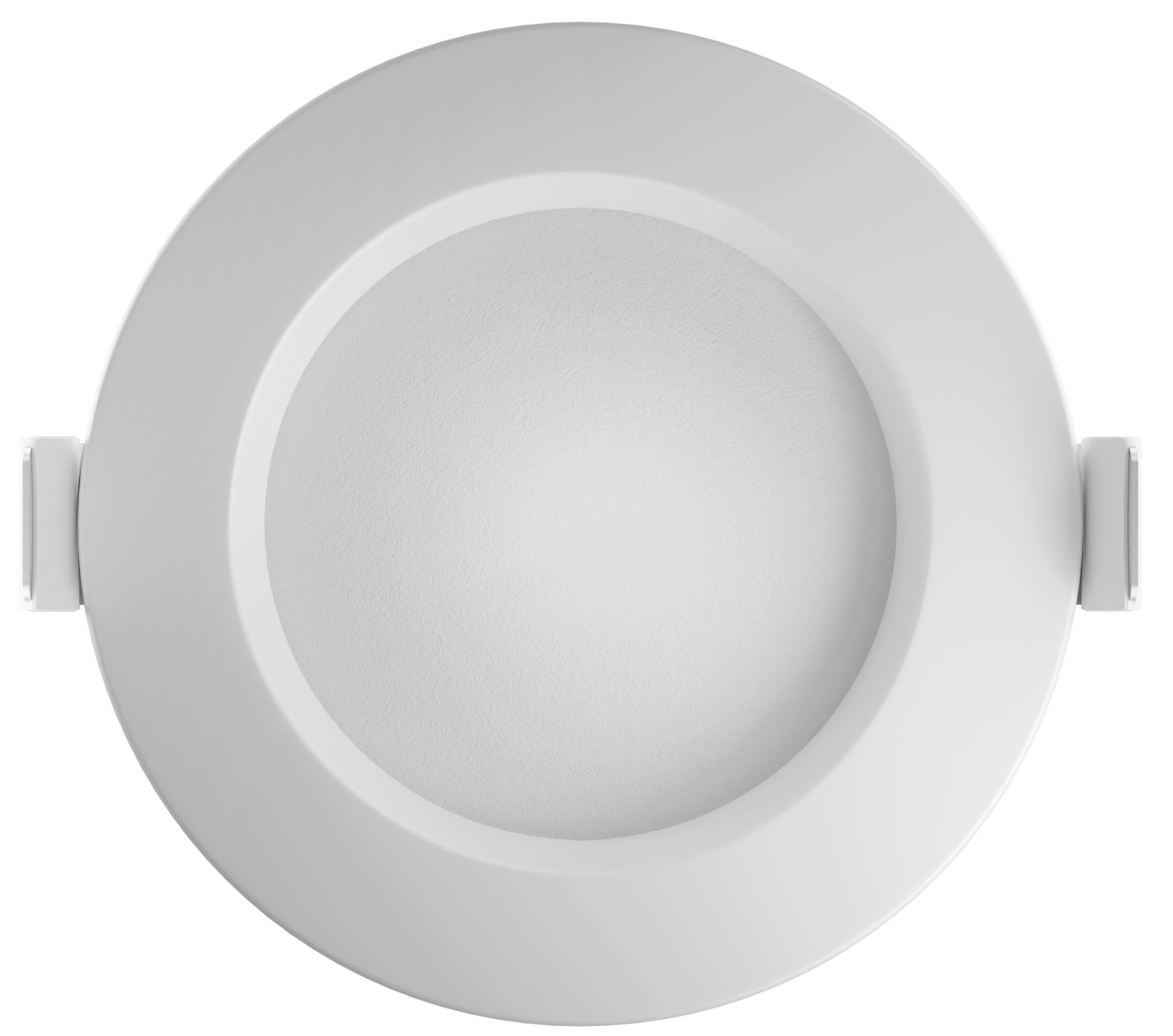

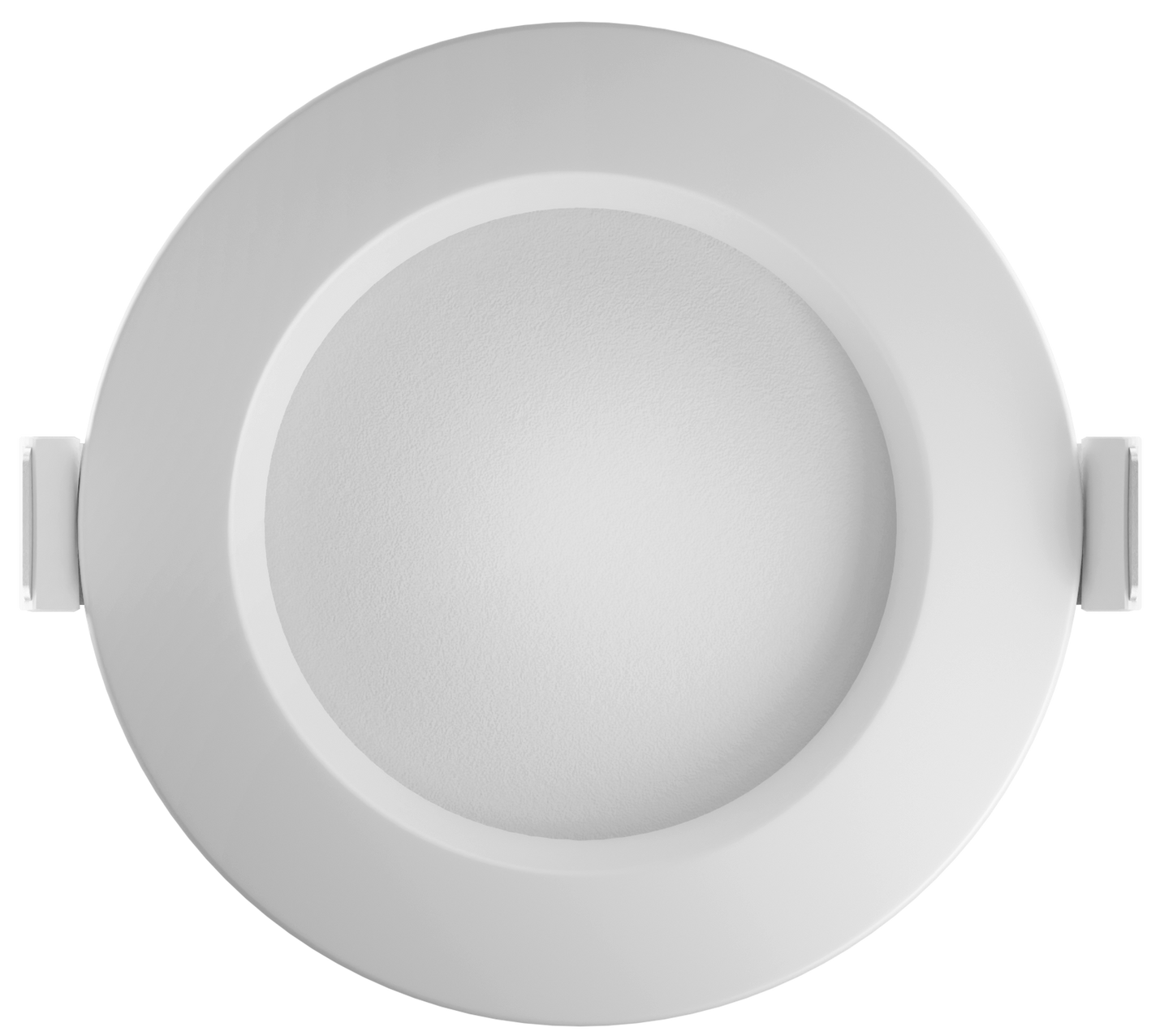

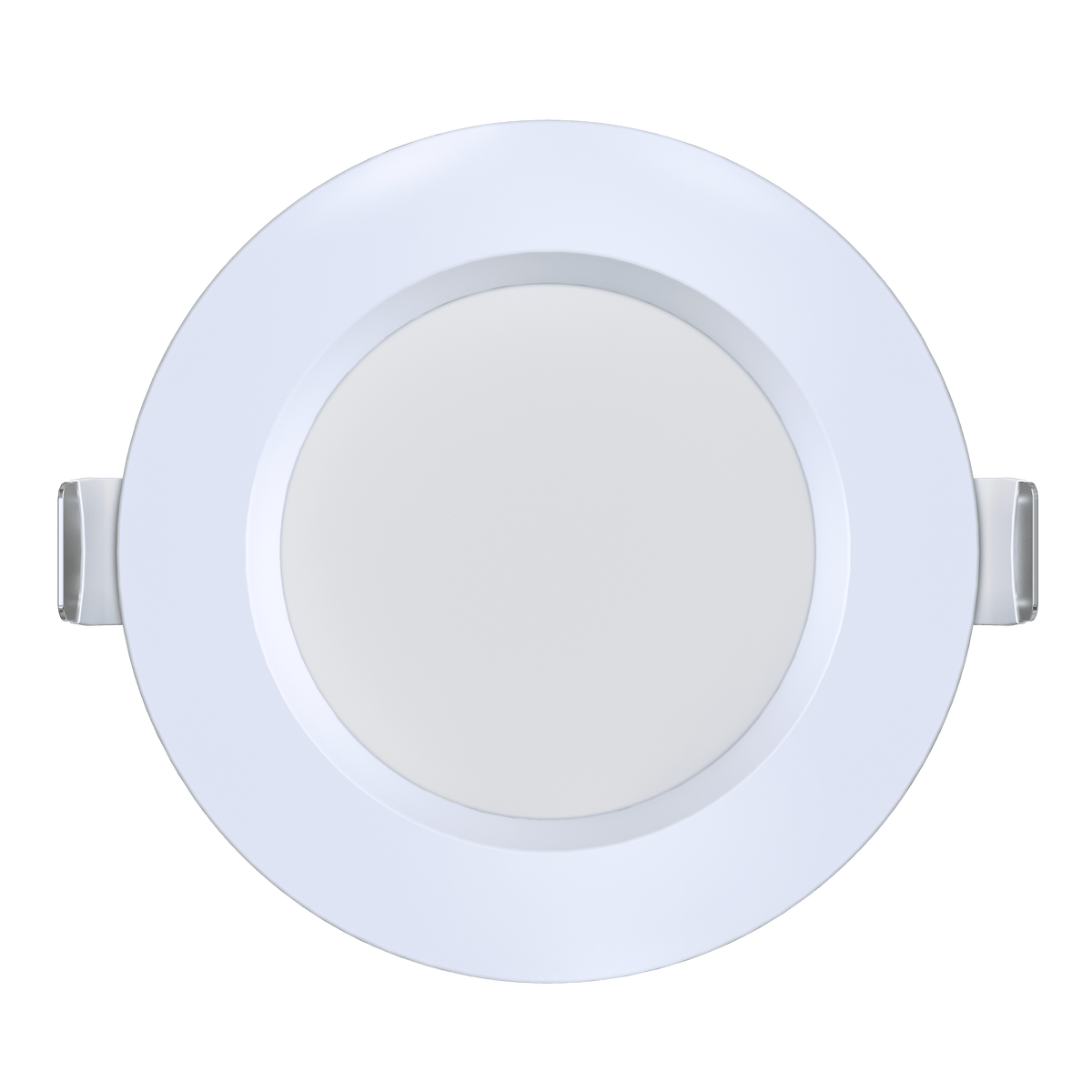

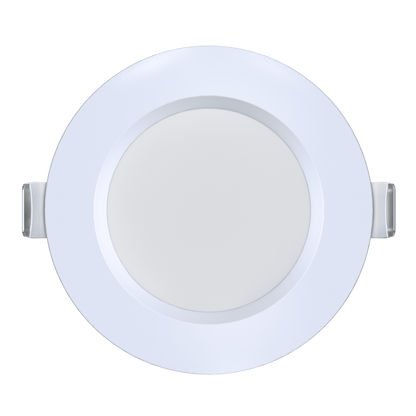

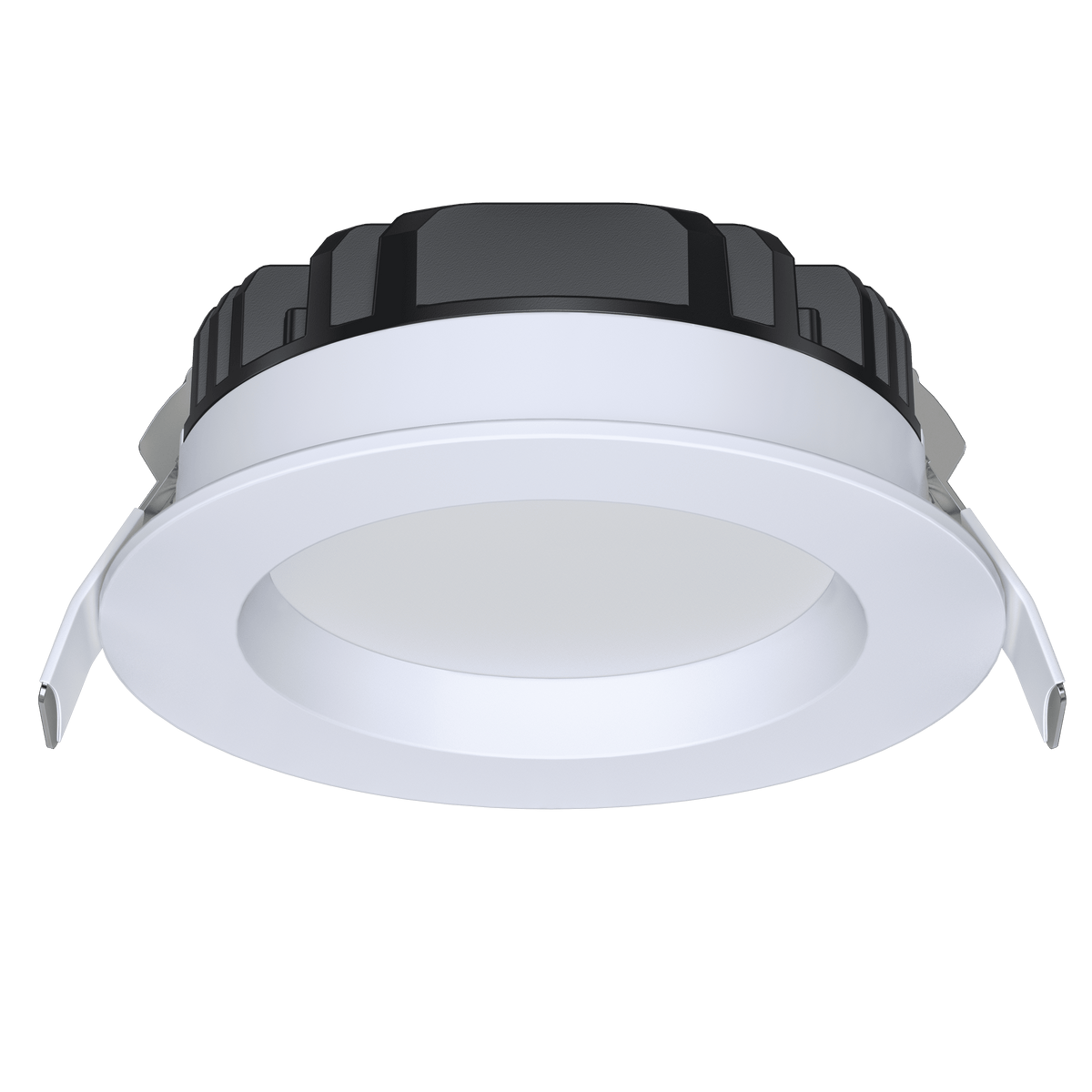

5" Round Regress slim

27,30,35,41,50k
Dimmable
1800 Lumens
23 Watts
120 V
View full details

Information

General Specs
Product Code
G-20242
Description
RS5/23W/R/LED/5CCT
shape
Round
style
Trimmed
size
5 Inch
finish
White
diffuser
Frosted
number of lights
1

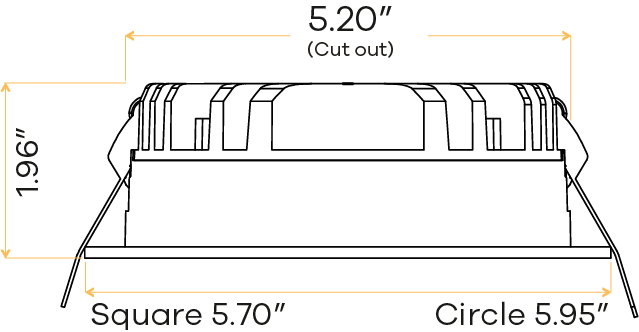

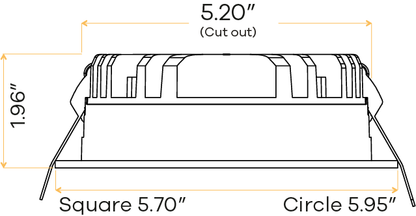

cutout
5.20"
OD (Outside dimensions)
5.95"
height
1.96"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354202424
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1800
CRI
>90
beam spread deg
100°
Electrical Specs
watt
23W
volts
120V
output current
540mA
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (8 Punchouts) G-98810 (8 Punchouts) G-19982 (5 Punchouts)
Colored Covers
G-22050 Black G-22051 Bronze G-22052 Nickel G-22053 Brass G-22054 Copper
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95826 22 Watt
