G-22241
Regulus

4" round wattage select regress slim

4" Round Wattage Select Regress slim

27,30,35,41,50k
Dimmable
1100/1550/2050 Lumens
10/15/20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-22241
Description

RS4/20W/3WS/R/LED/5CCT

shape
Round
style
Trimmed
size
4 Inch
finish
White
diffuser
Frosted
number of lights
1

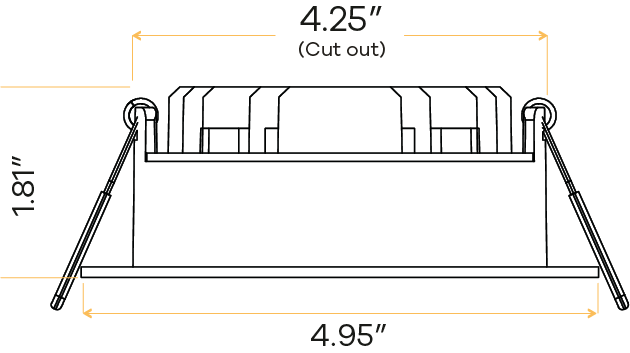

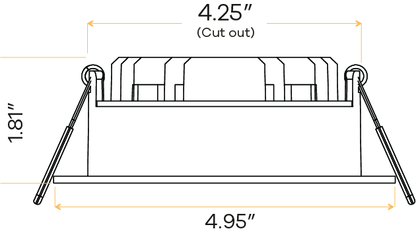

cutout
4.25”
OD (Outside dimensions)
4.95"
height
1.81"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379222410
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1100/1550/2050
CRI
>90
beam spread deg
100°
Electrical Specs
watt
10/15/20W
volts
120-277V
output current
350mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Instruction Sheet IES

Accessories

Colored Covers
G-48460 Black G-22041 Bronze G-22042 Nickel G-22043 Brass G-22044 Copper
New construction plate
G-19975 (4 Punchouts) G-19979 (4 Punchouts) G-19969 (1 Punchouts) G-19982 (4 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 10 Watt G-95825 14 Watt G-95826 20 Watt
