G-98522
Commercial

4" round regress fixture

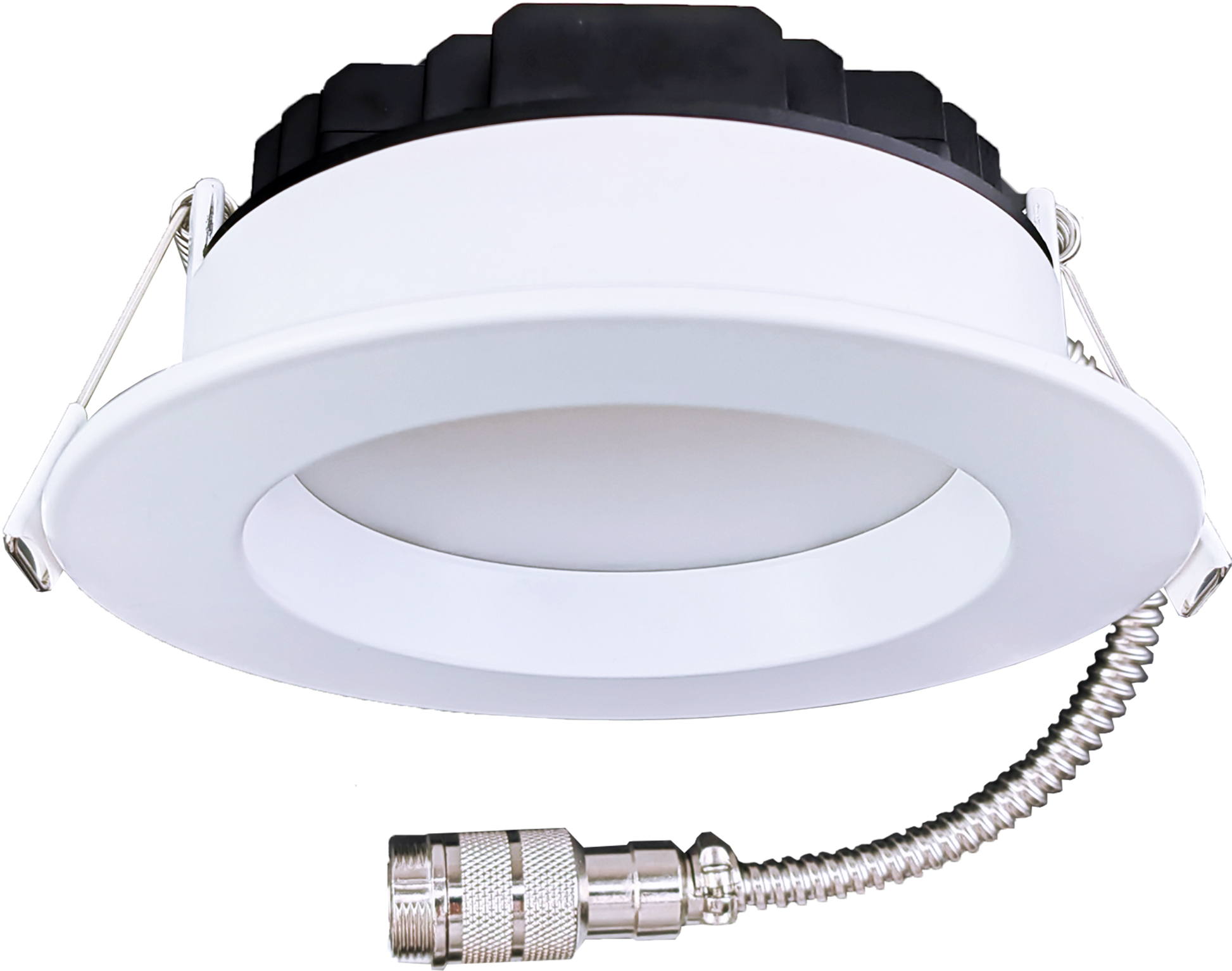

4" Round Regress Fixture

27,30,35,41,50k
Dimmable
1400/2000 Lumens
15/20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98522
Description
RS4/15W-IC/20W-NIC/RD/LED/5CCT/BX
shape
Round
style
Trimmed
size
4 Inch
finish
White
diffuser
Frosted
number of lights
1

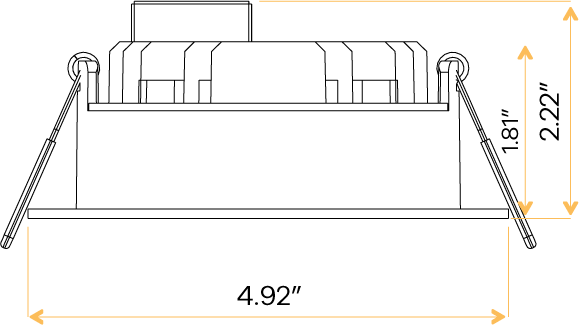

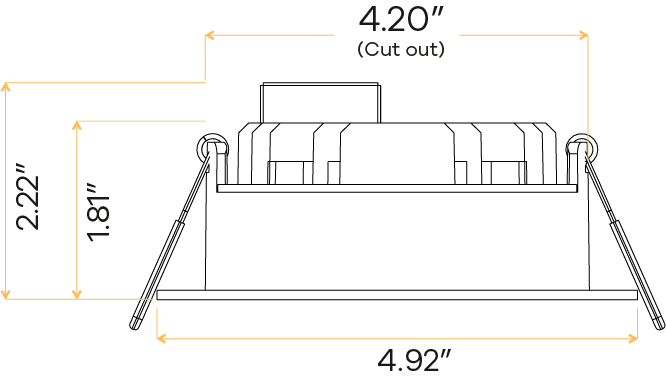

cutout
4.20"
OD (Outside dimensions)
4.92"
height
2.22"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431985224
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400/2000
CRI
>90
beam spread deg
100°
Electrical Specs
watt
15/20W
volts
120-277V
output current
515/355mA
plenum rated
Chicago
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
5 Years
IC Rated
Only at 15W
classification
ETL, Title 24, Energy Star

Downloads

Product Spec IES

Accessories

Extension Cords
G-98628 (15 Ft) G-98629 (30 Ft)
Colored Covers
G-48460 Black G-22041 Bronze G-22042 Nickel G-22043 Brass G-22044 Copper
