G-98521
Commercial

3" round regress fixture

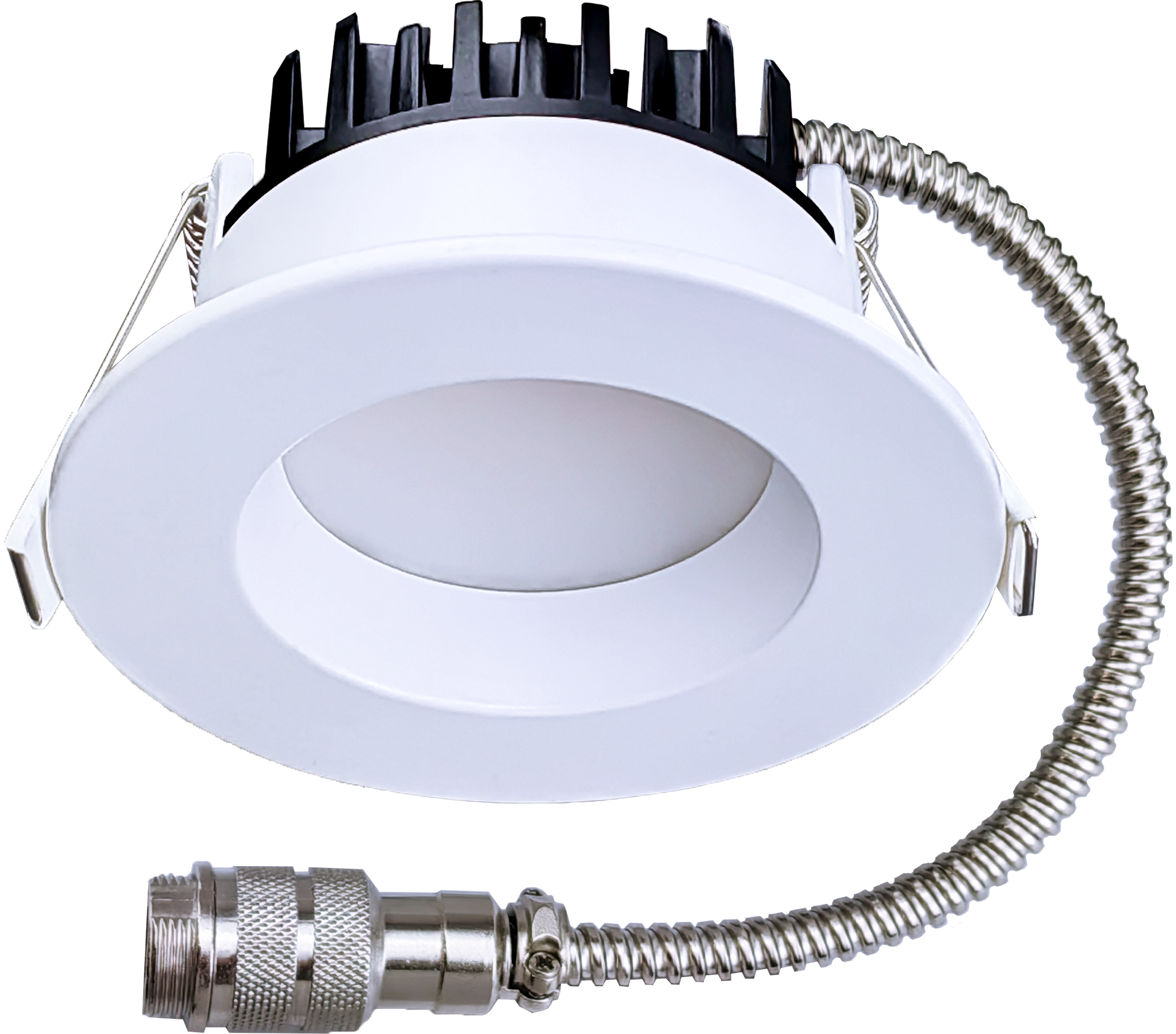

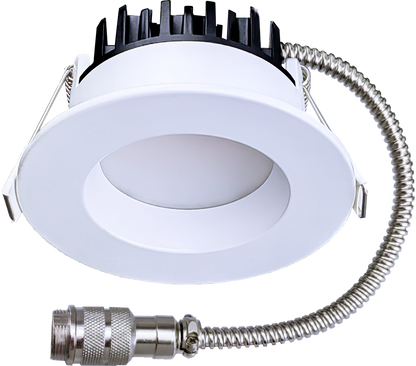

3" Round Regress Fixture

27,30,35,41,50k
Dimmable
750/1050 Lumens
10/15 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98521
Description
RS3/10W-IC/15W-NIC/RD/LED/5CCT/BX
shape
Round
style
Trimmed
size
3 Inch
finish
White
diffuser
Frosted
number of lights
1

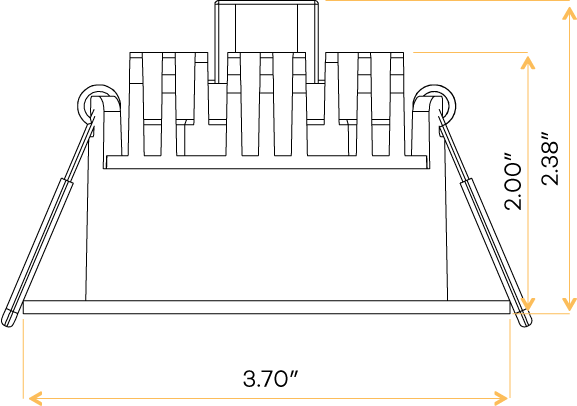

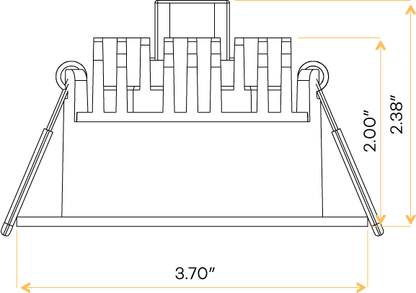

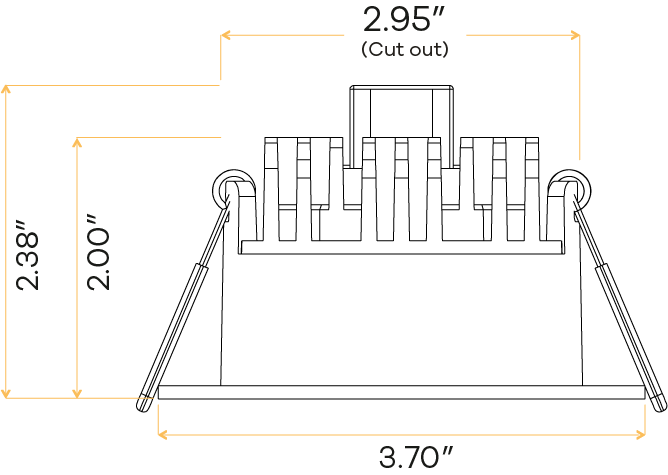

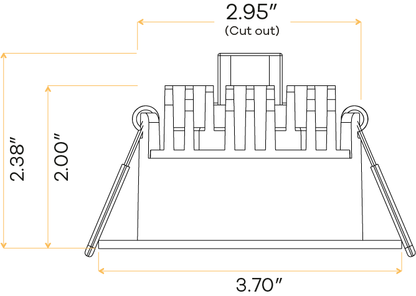

cutout
2.95"
OD (Outside dimensions)
3.70"
height
2.38"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431985217
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
750/1050
CRI
>90
beam spread deg
100°
Electrical Specs
watt
10/15W
volts
120-277V
output current
355/230mA
plenum rated
Chicago
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
5 Years
IC Rated
Only at 10W
classification
ETL, Title 24, Energy Star

Downloads

Product Spec Instruction Sheet IES

Accessories

New construction plate
G-98800 (3 Punchouts) G-98810 (3 Punchouts) G-19969 (0 Punchouts) G-19982 (1 Punchouts)
Colored Covers
G-22030 Black G-22031 Bronze G-22032 Nickel G-22033 Brass G-22034 Copper
Extension Cords
G-98628 (15 Ft) G-98629 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
