G-98526
Commercial

8" round regress fixture

8" Round Regress Fixture

27,30,35,41,50k
Dimmable
5000/8000 Lumens
50/80 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98526
Description
RS8/50W-IC/80W-NIC/RD/LED/5CCT/BX
shape
Round
style
Trimmed
size
8 Inch
finish
White
diffuser
Frosted
number of lights
1

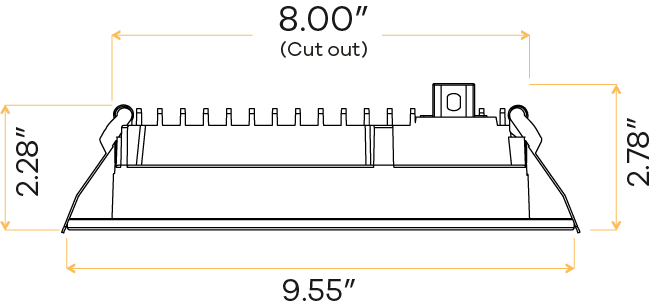

cutout
8.00"

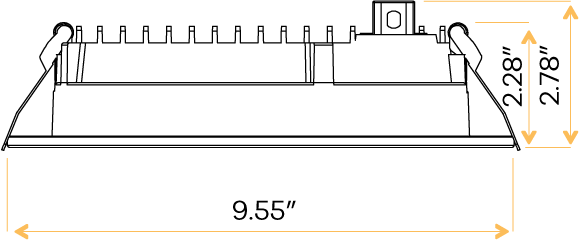

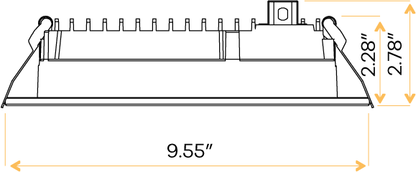

OD (Outside dimensions)
9.55"
height
2.78"
mounting
Clip-in
Packaging Information
master pack
4
Barcode
024431985262
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
5000/8000
CRI
>90
beam spread deg
100°
Electrical Specs
watt
50/80W
volts
120-277V
output current
2030/1300mA
plenum rated
Chicago
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
5 Years
IC Rated
Only at 50W
classification
ETL, Title 24, Energy Star

Downloads

Product Spec IES

Accessories

New construction plate
G-19982 (8 Punchouts)
Colored Covers
G-22080 Black G-22081 Bronze G-22082 Nickel G-22083 Brass G-22084 Copper
Extension Cords
G-98628 (15 Ft) G-98629 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
