G-98523
Commercial

5" round regress fixture

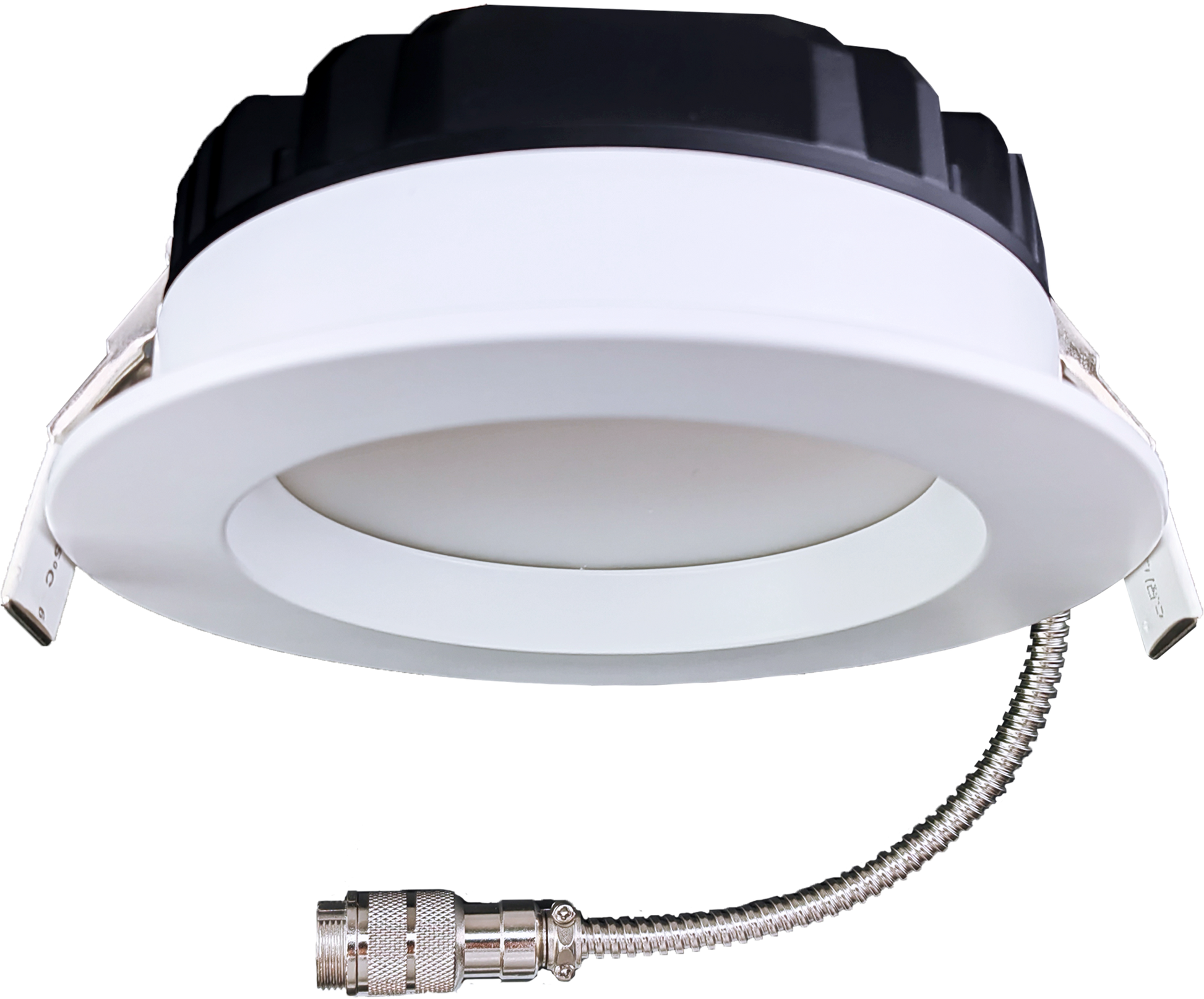

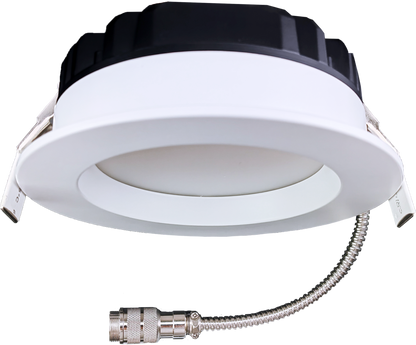

5" Round Regress Fixture

27,30,35,41,50k
Dimmable
2000/3000 Lumens
23/32 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98523
Description
RS5/23W-IC/32W-NIC/RD/LED/5CCT/BX
shape
Round
style
Trimmed
size
5 Inch
finish
White
diffuser
Frosted
number of lights
1

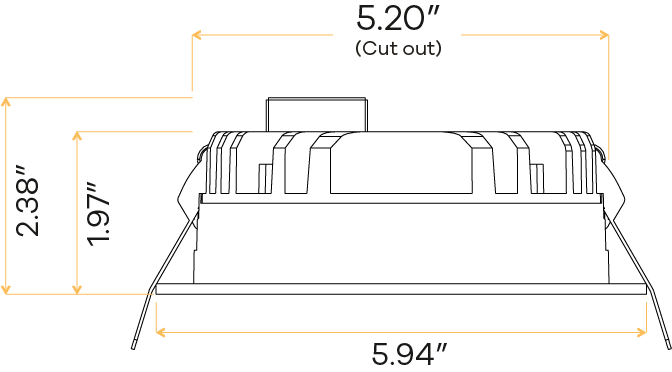

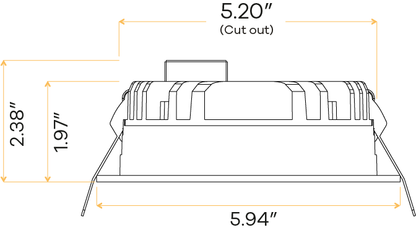

cutout
5.20"

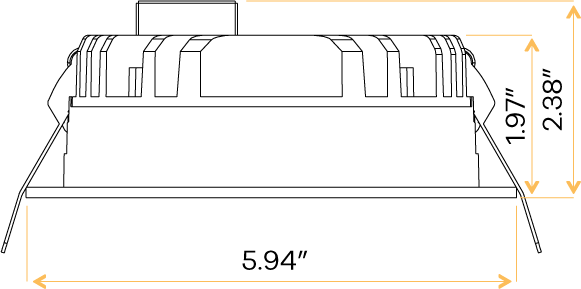

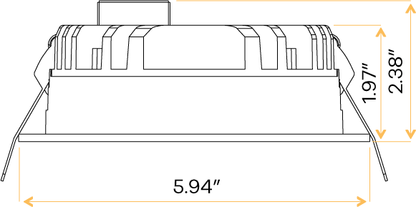

OD (Outside dimensions)
5.94"
height
2.38"
mounting
Clip-in
Packaging Information
master pack
12
Barcode
024431985231
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
2000/3000
CRI
>90
beam spread deg
100°
Electrical Specs
watt
23/32W
volts
120-277V
output current
755/540mA
plenum rated
Chicago
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
5 Years
IC Rated
Only at 23W
classification
ETL, Title 24, Energy Star

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (8 Punchouts) G-98810 (5 Punchouts)
Colored Covers
G-22050 Black G-22051 Bronze G-22052 Nickel G-22053 Brass G-22054 Copper
Extension Cords
G-98628 (15 Ft) G-98629 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
