G-20222
Star

5" round flushed slim

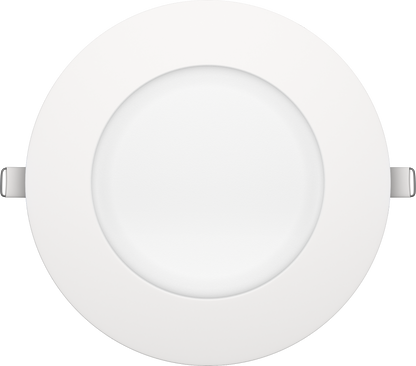

5" Round Flushed slim

27,30,35,41,50k
Dimmable
1350 Lumens
15 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20222
Description
S5/15W/R/LED/5CCT
shape
Round
style
Trimmed
size
5 Inch
finish
White
diffuser
Frosted
number of lights
1

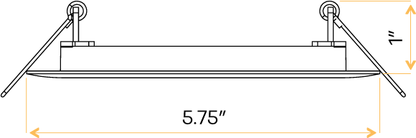

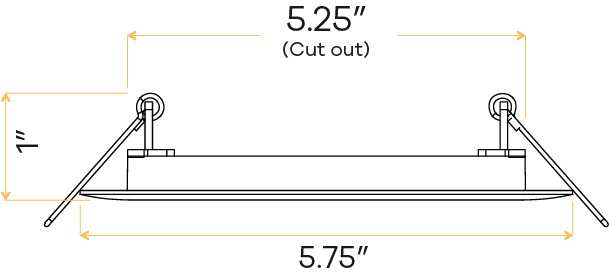

cutout
5.25”
OD (Outside dimensions)
5.90"
height
1.00"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354202226
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1350
beam spread deg
100°
Electrical Specs
watt
15W
volts
120-277V
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet Location
warranty
3 Years
classification
ETL Listed

Downloads

Product Spec IES

Accessories

Colored Covers
G-48376 Black G-48377 Nickel G-48378 Bronze G-48384 Brass G-23750 Red G-23751 Orange G-23752 Yellow G-23753 Green G-23754 Blue G-23755 Rose Blush
New construction plate
G-19979 (6 Punchouts) G-19975 (6 Punchouts) G-19981 (3 Punchouts) G-19982 (5 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt
