G-02227
Star

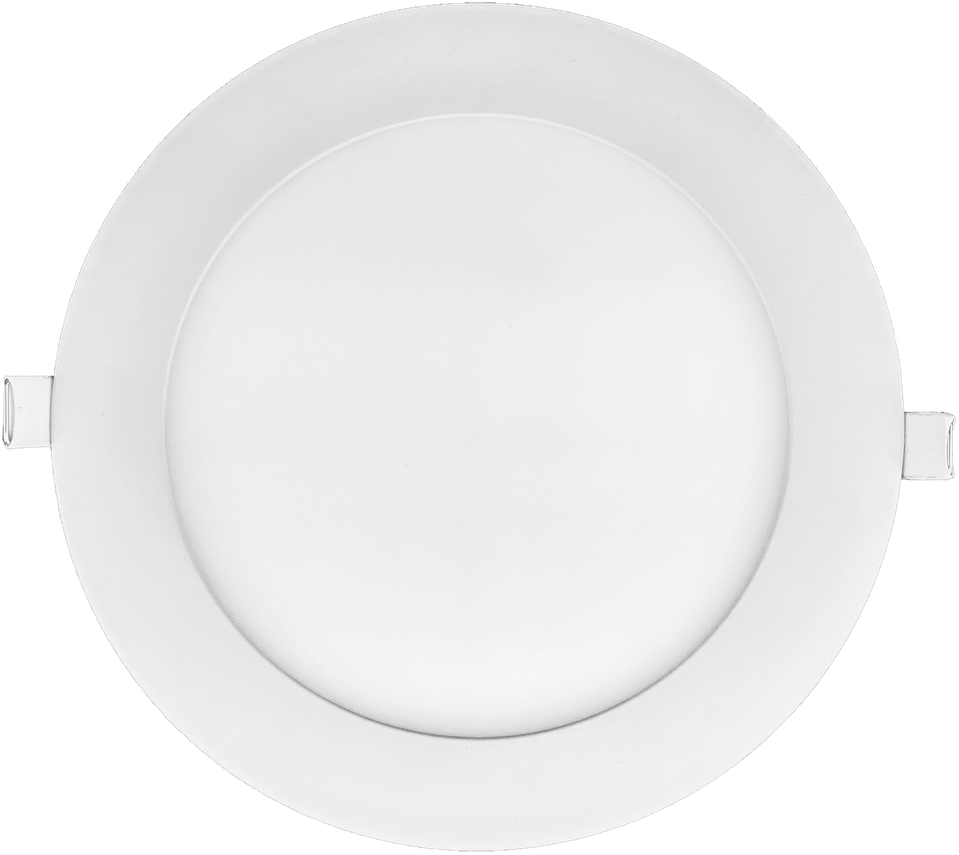

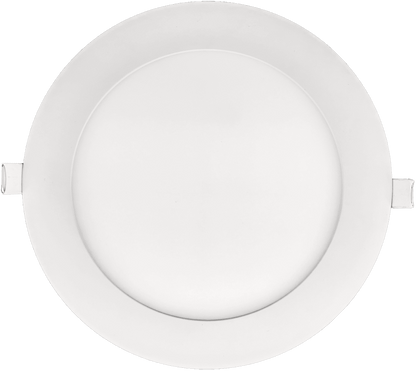

7" round flushed slim

7" Round Flushed slim

27,30,35,41,50k
Dimmable
2400 Lumens
25 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-02227
Description
S7/25W/R/LED/5CCT
shape
Round
style
Trimmed
size
7 Inch
finish
White
diffuser
Frosted
number of lights
1

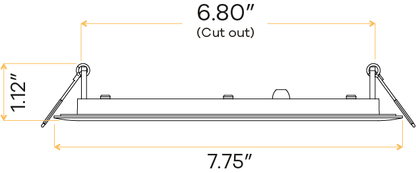

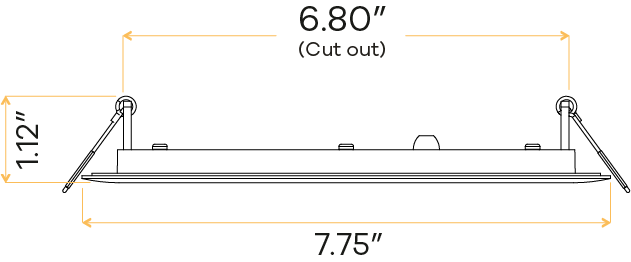

cutout
6.80”

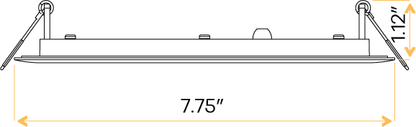

OD (Outside dimensions)
7.75"
height
1.12"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379022270
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
2400
beam spread deg
100°
Electrical Specs
watt
25W
volts
120-277V
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet Location
warranty
3 Years
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-19982 (7 Punchouts)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
