G-48338
Regulus

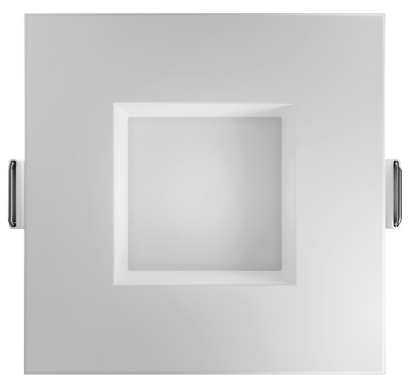

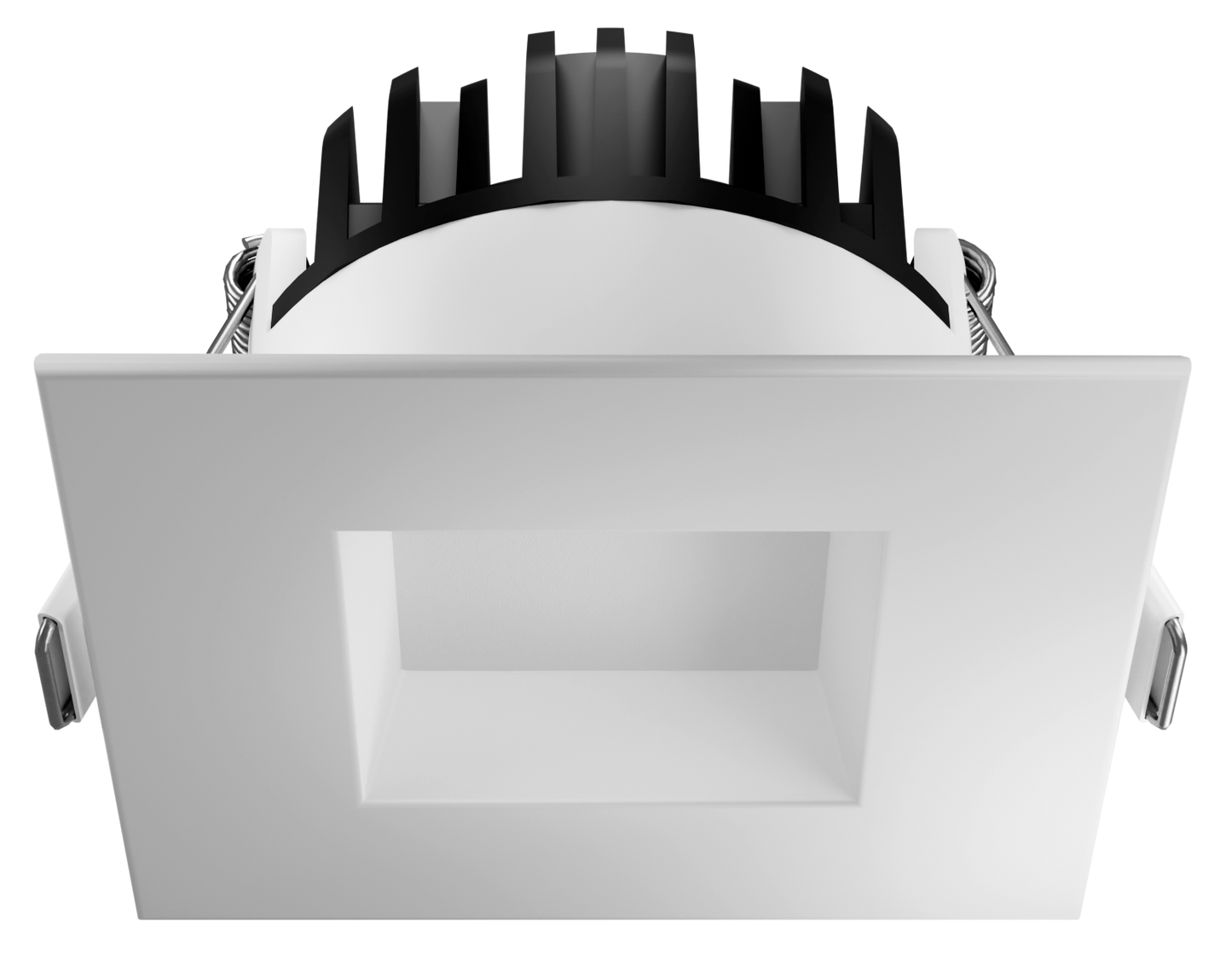

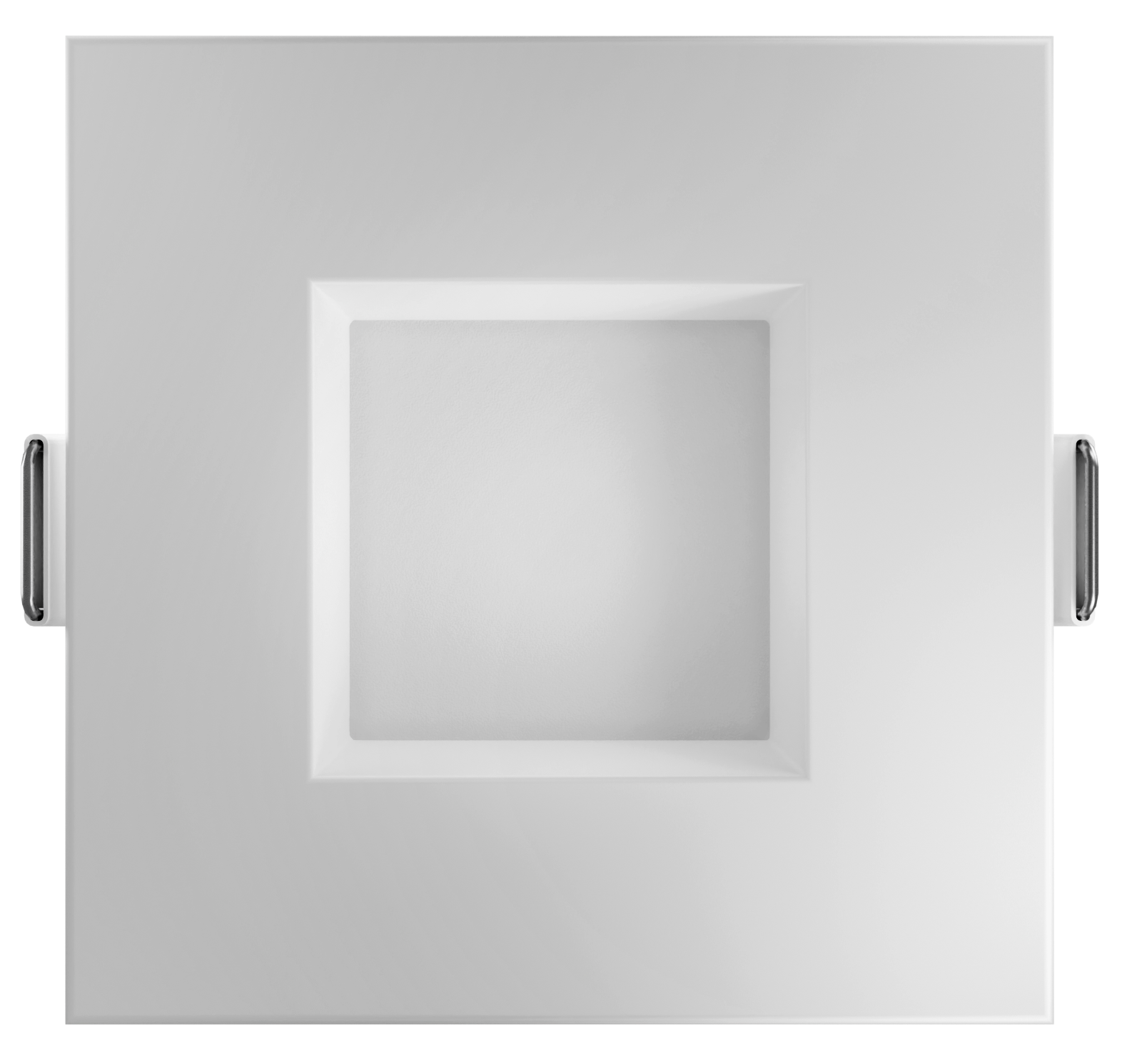

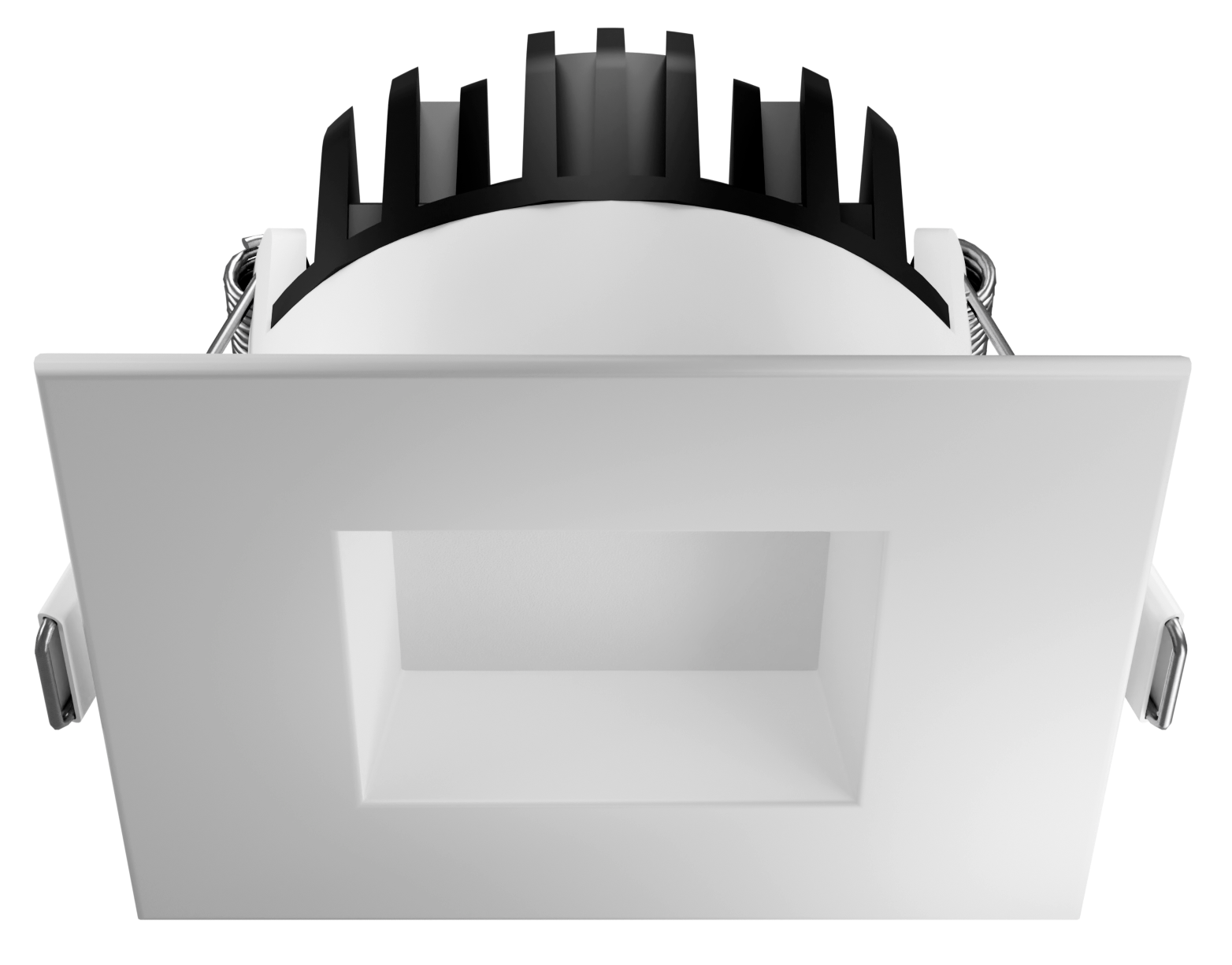

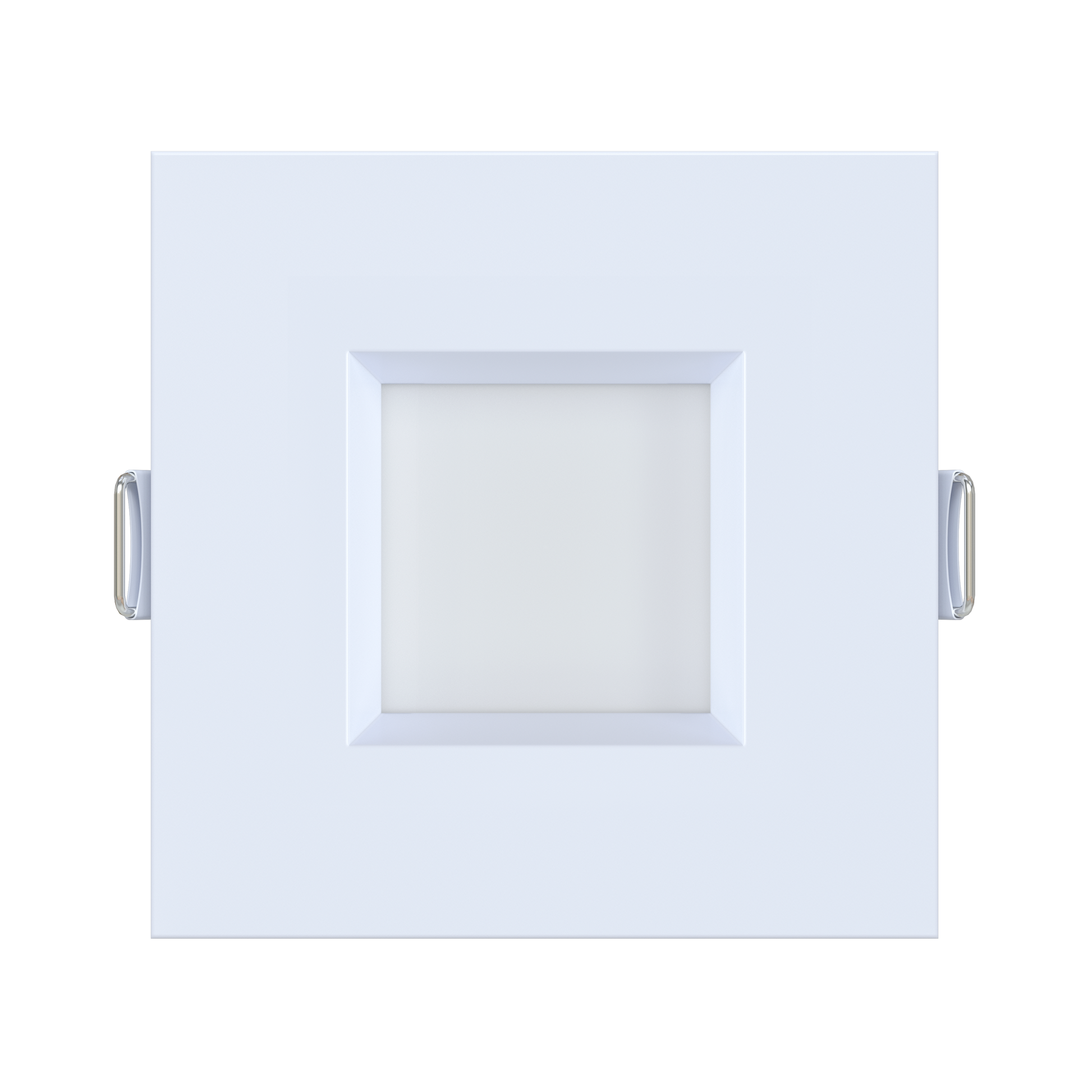

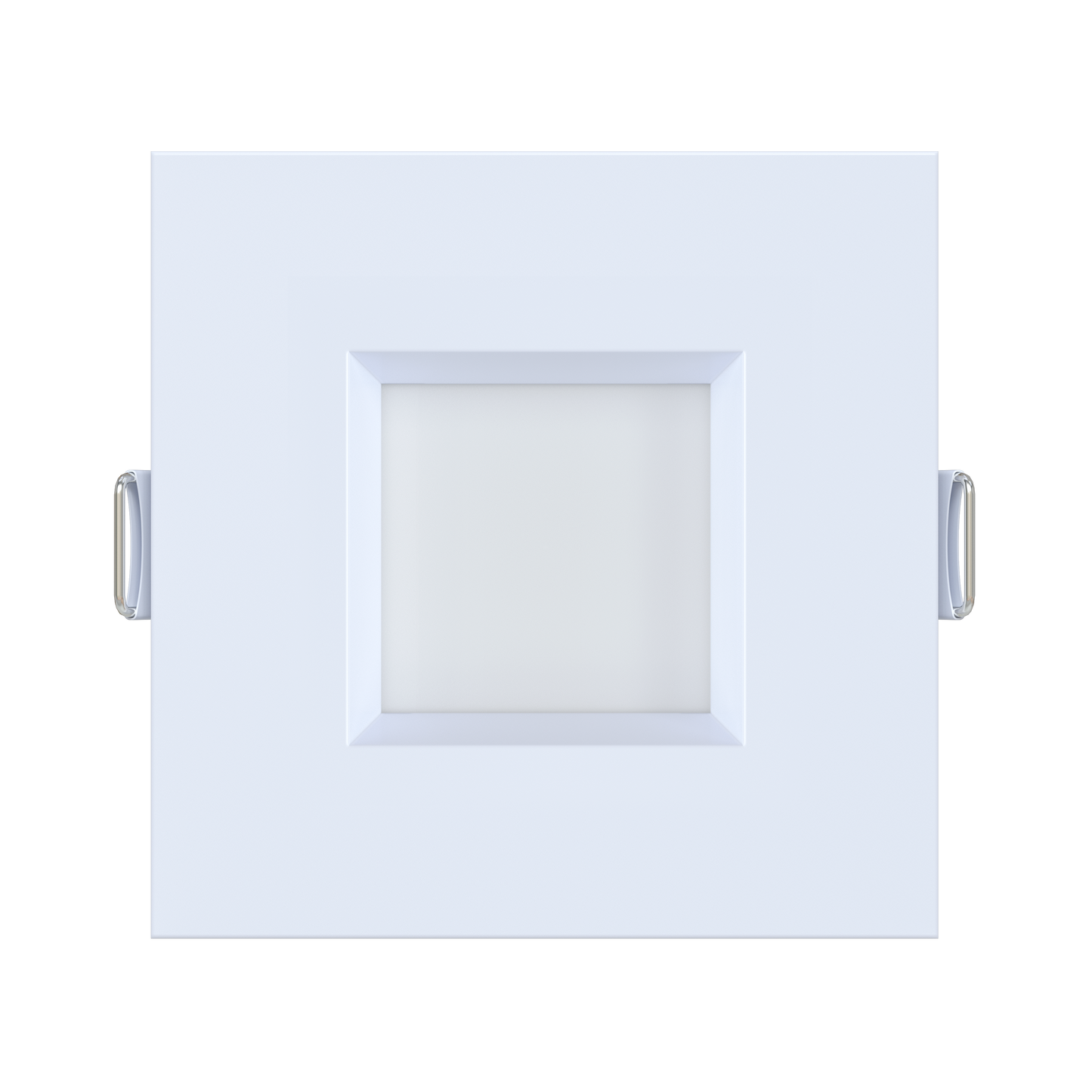

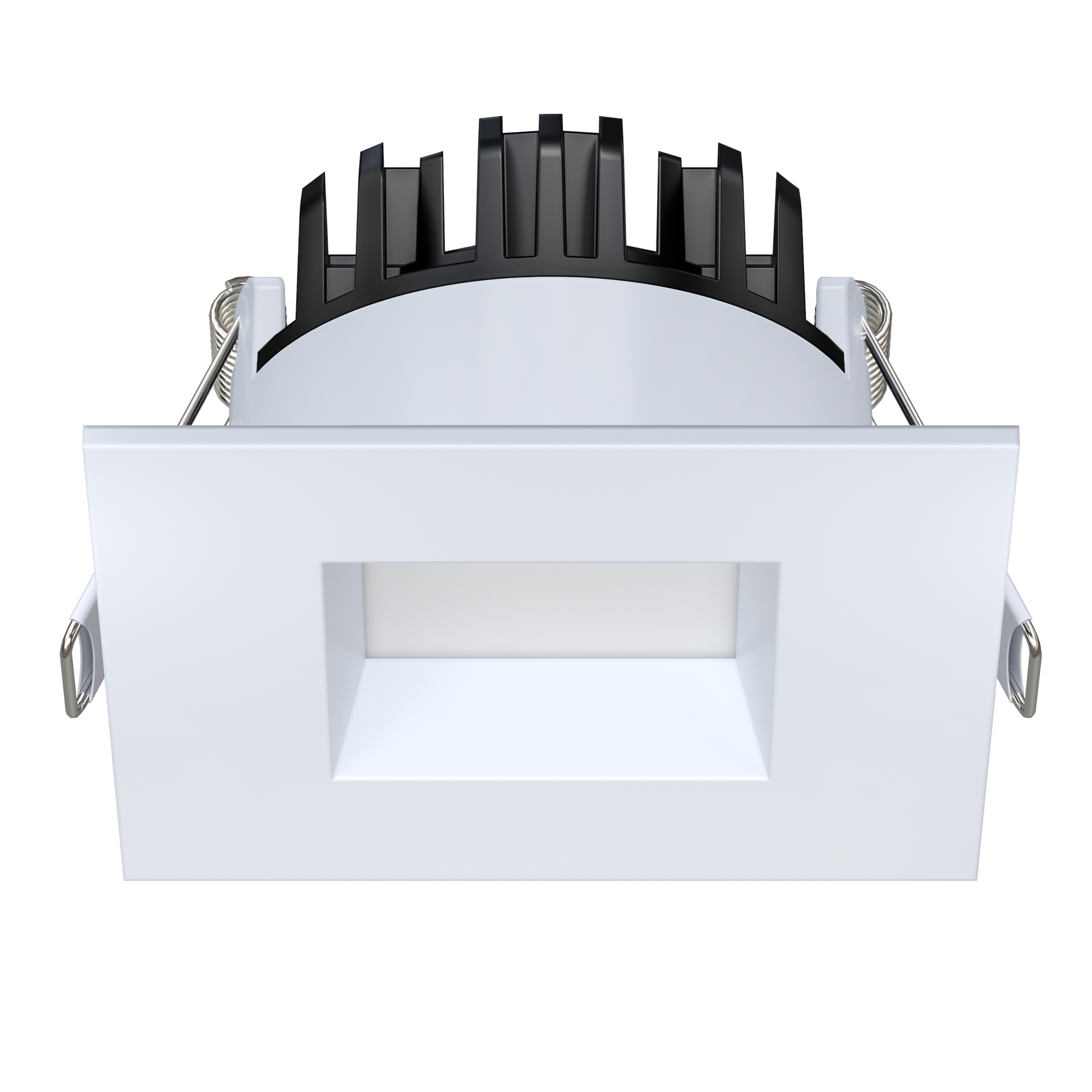

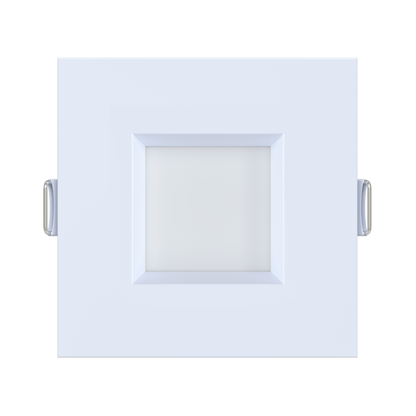

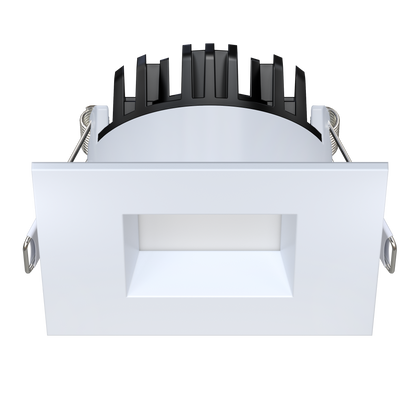

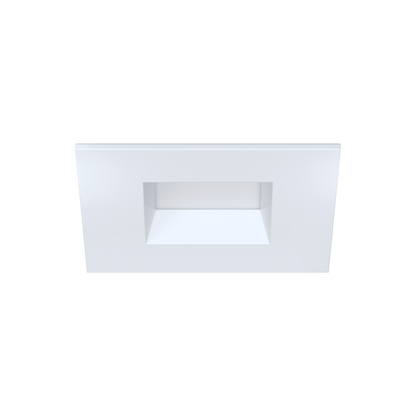

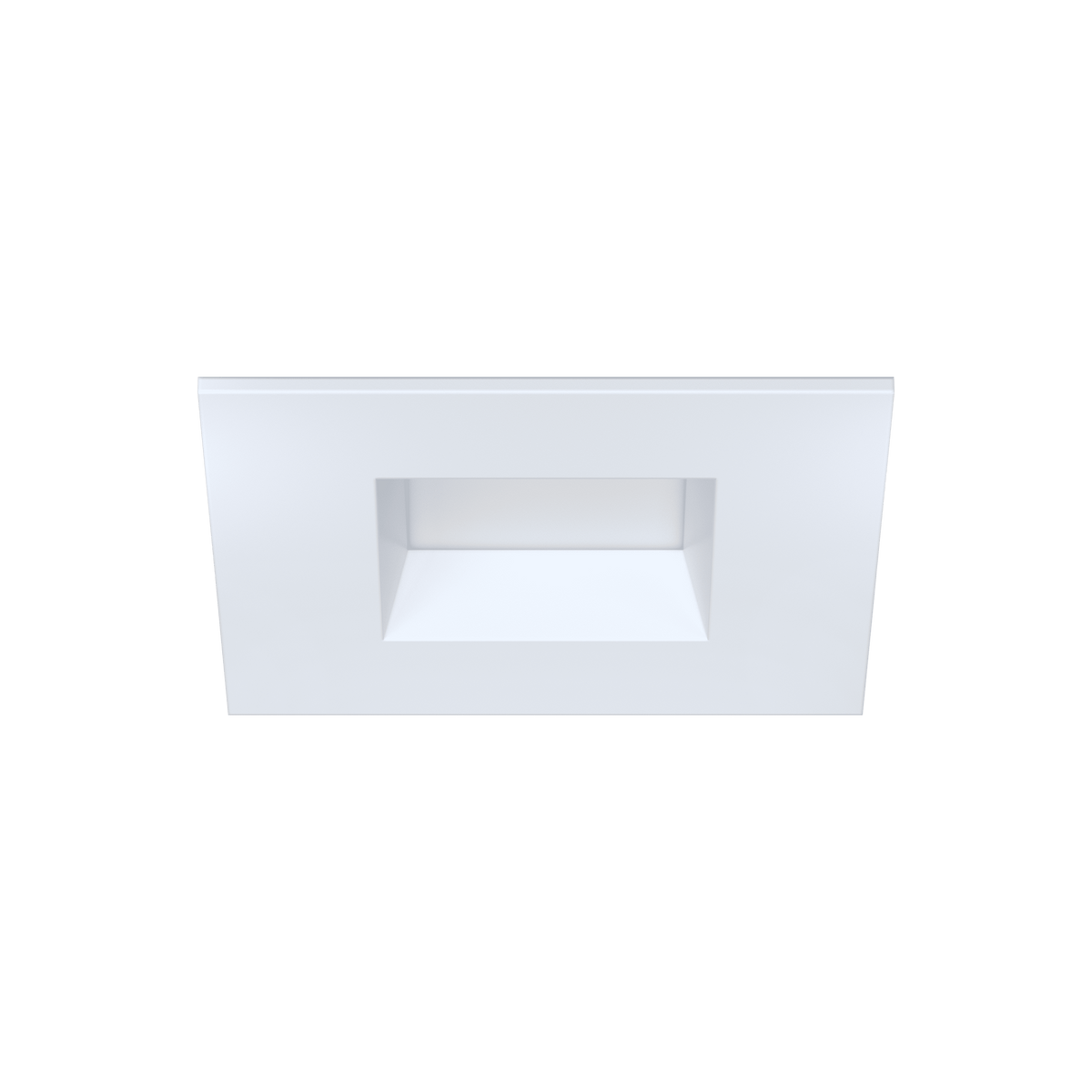

3" square regress slim

3" Square Regress slim

27,30,35,41,50k
Dimmable
750 Lumens
10 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-48338
Description
RS3/10W/SQ/LED/5CCT
shape
Square
style
Trimmed
size
3 Inch
finish
White
diffuser
Frosted
number of lights
1
cutout
2.91”

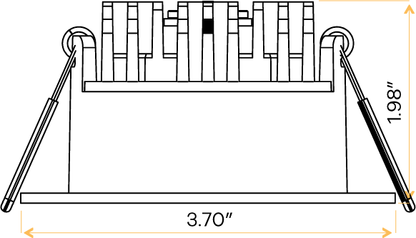

OD (Outside dimensions)
3.70"
height
1.98"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304483382
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
750
CRI
>90
beam spread deg
100°
Electrical Specs
watt
10W
volts
120-277V
output current
230mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (4 Punchouts) G-98810 (4 Punchouts) G-19982 (2 Punchouts)
Colored Cover
G-22130 Black
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 10 Watt
