G-48508
Regulus

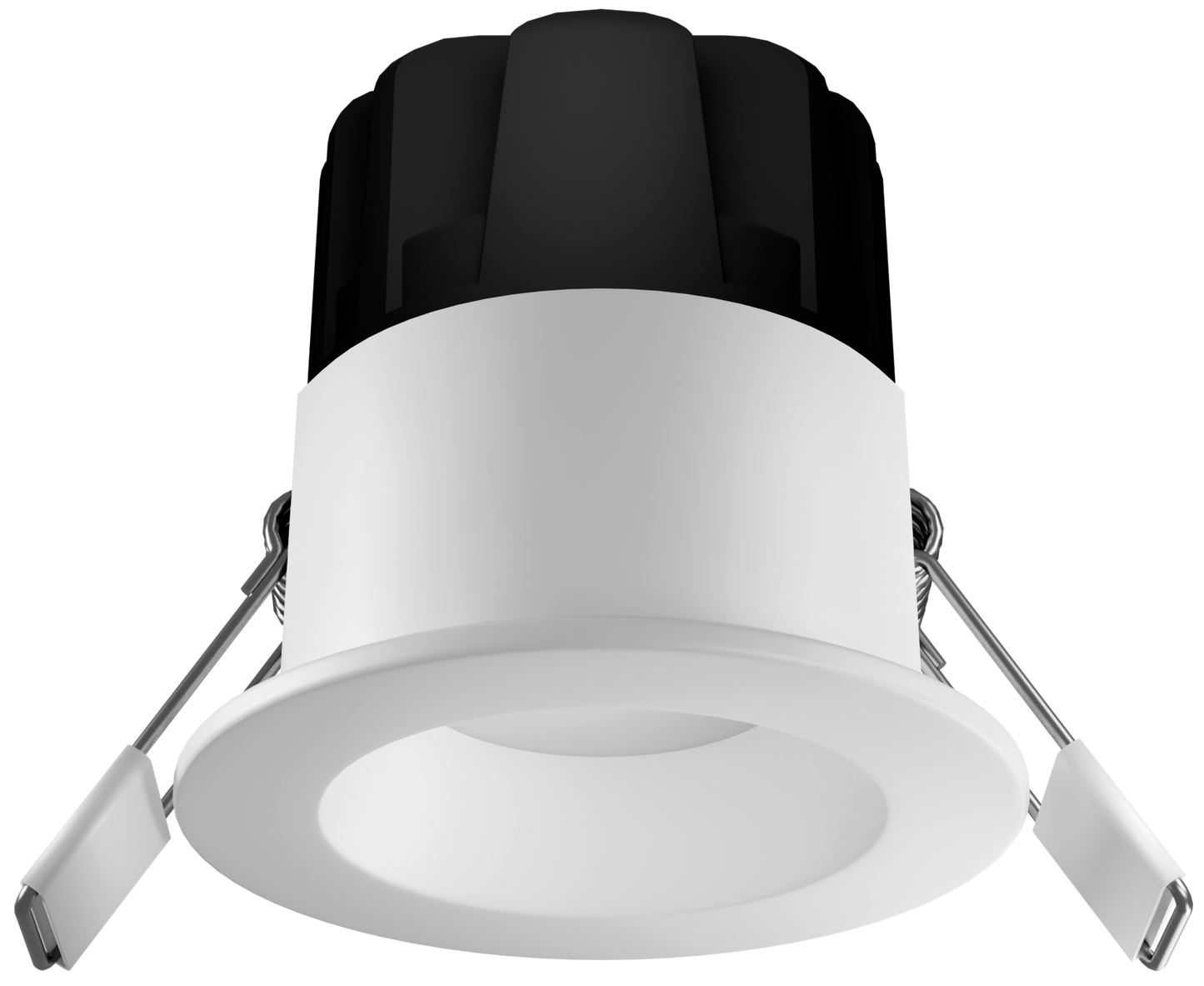

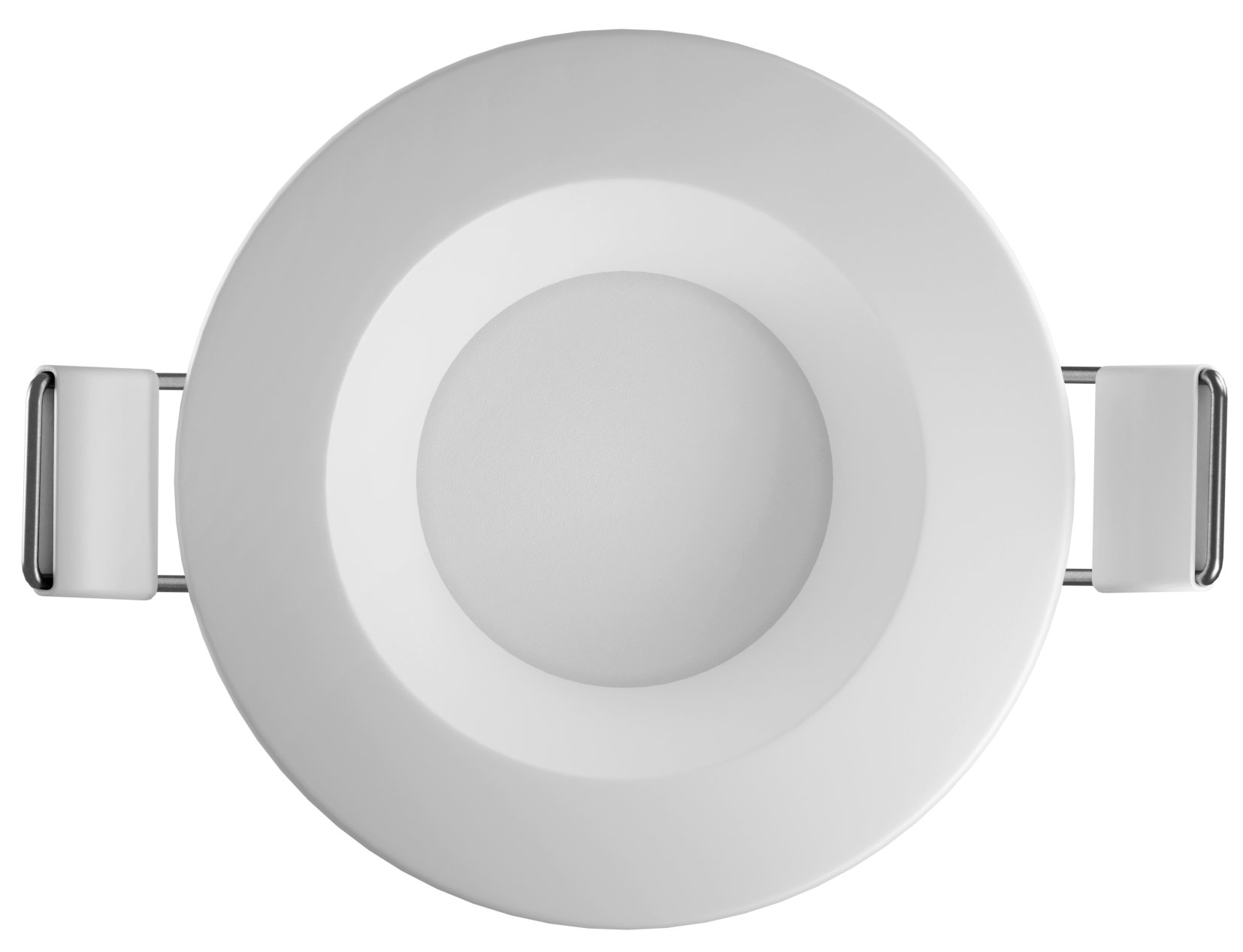

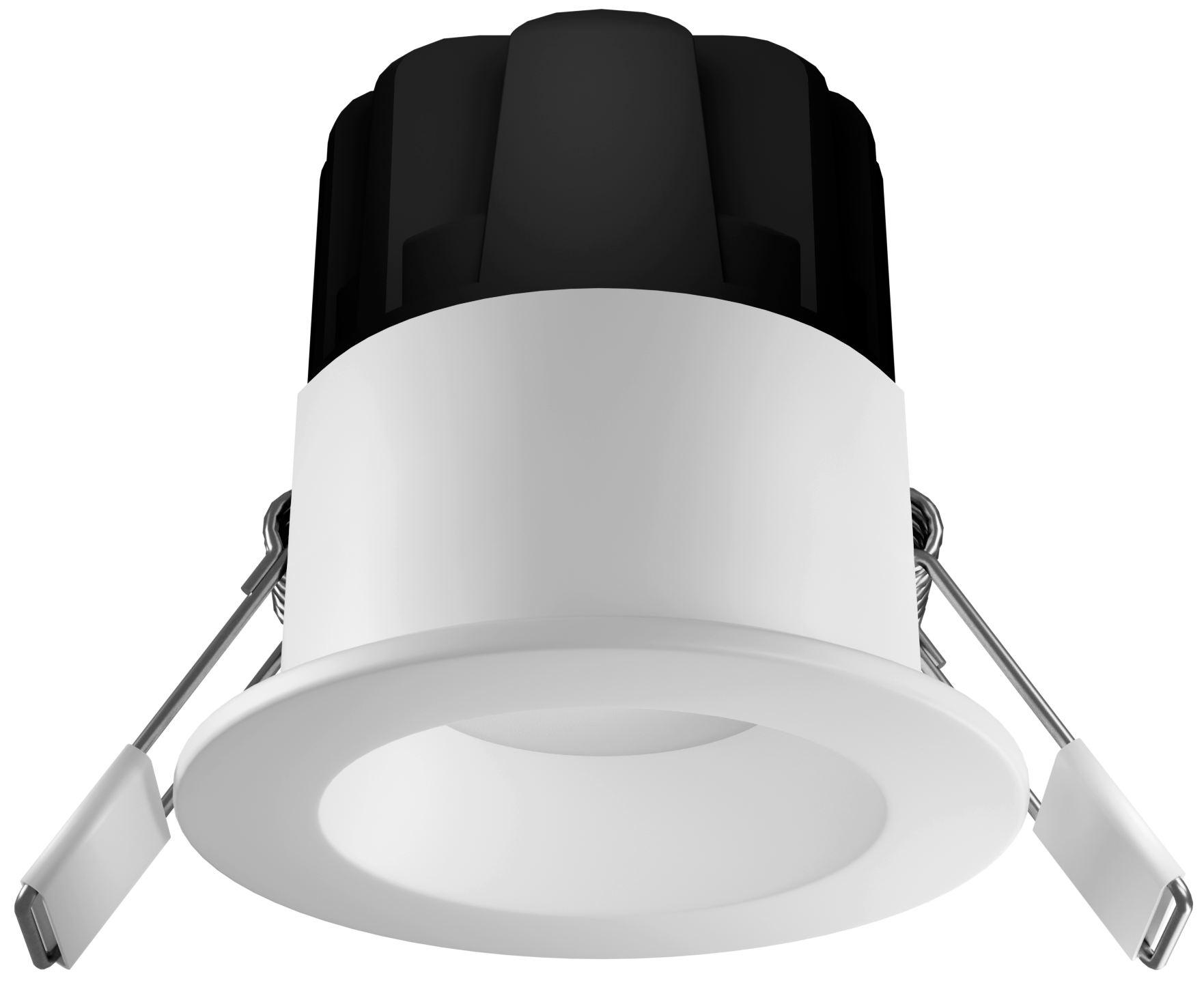

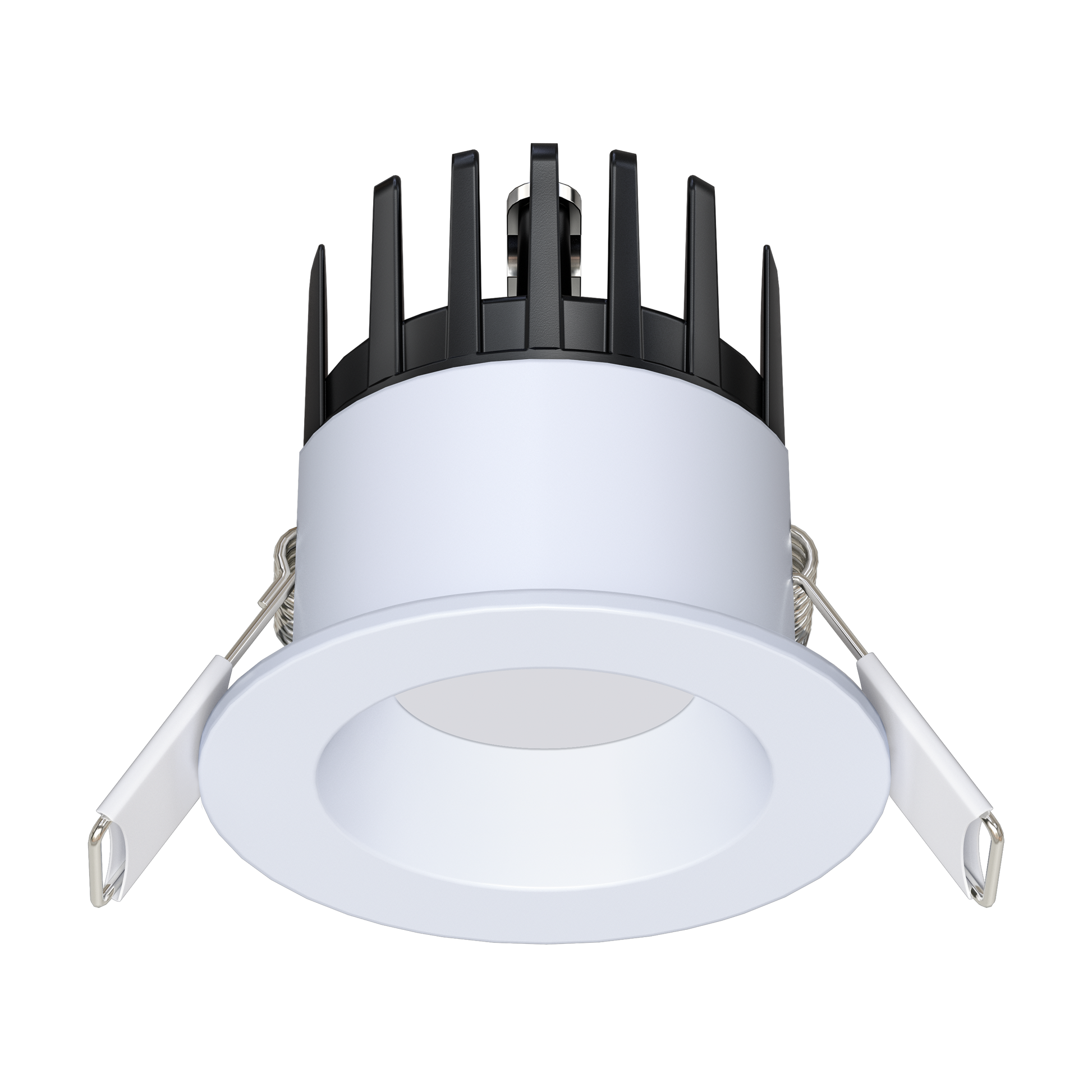

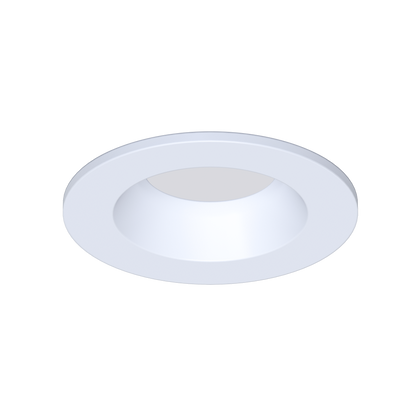

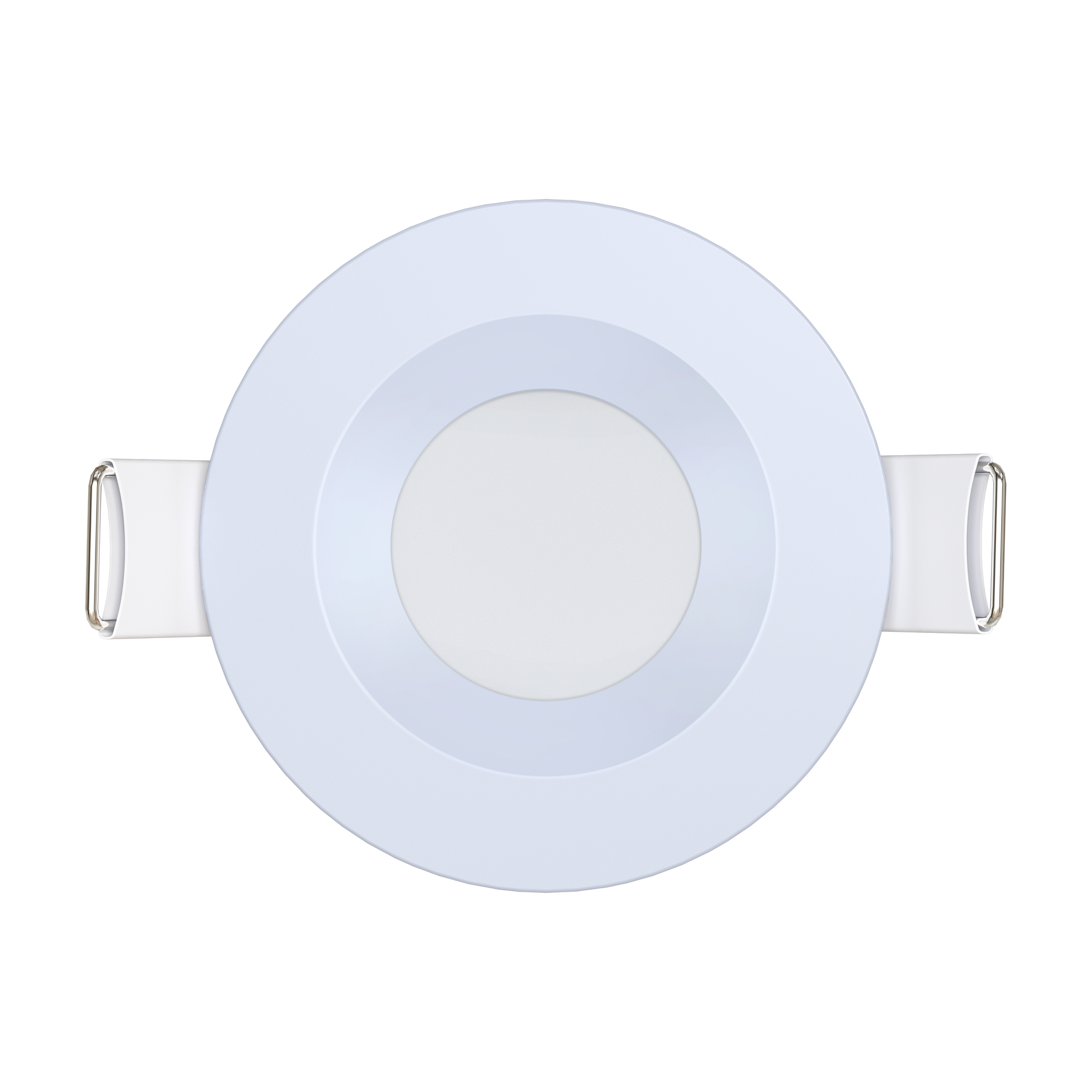

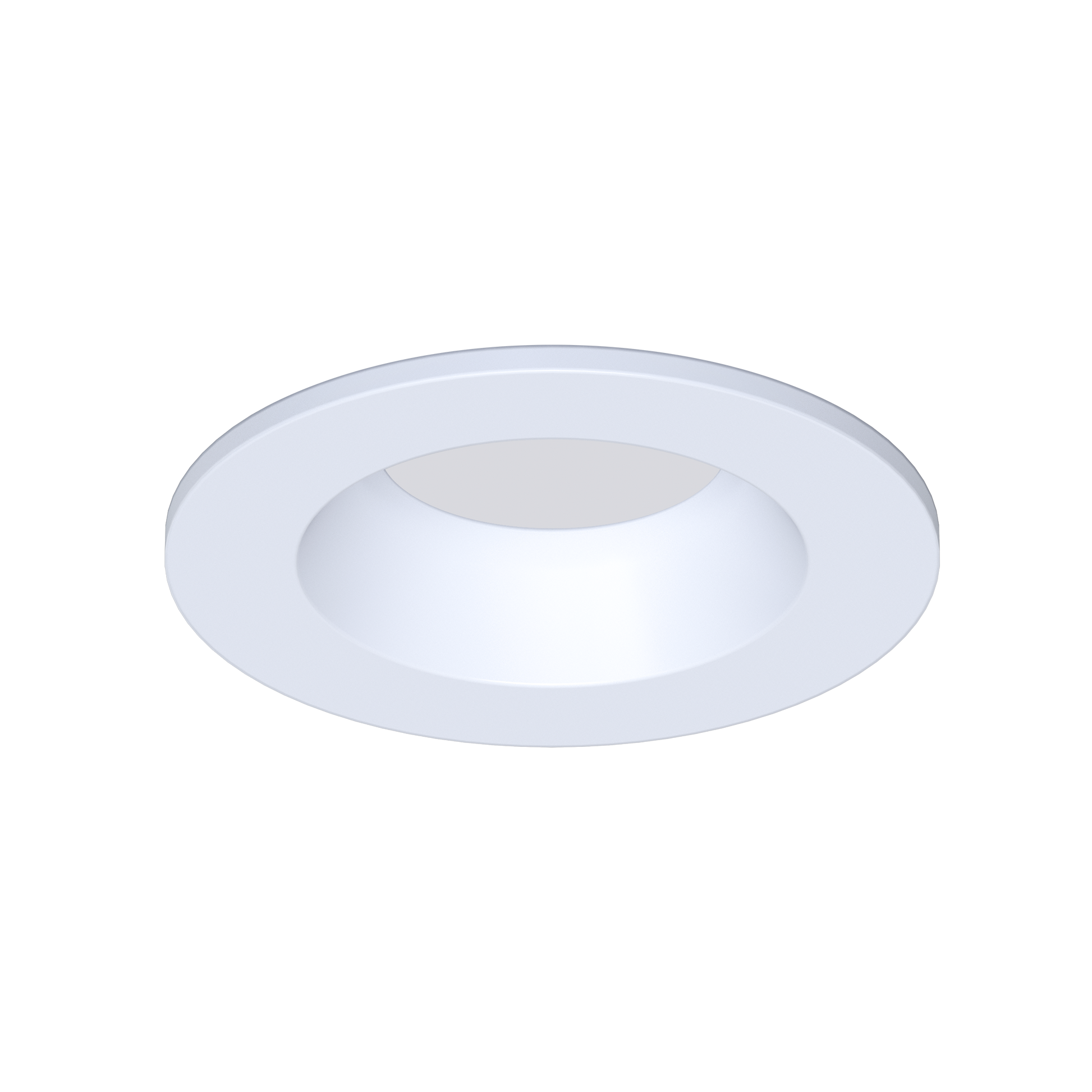

2" round regress slim

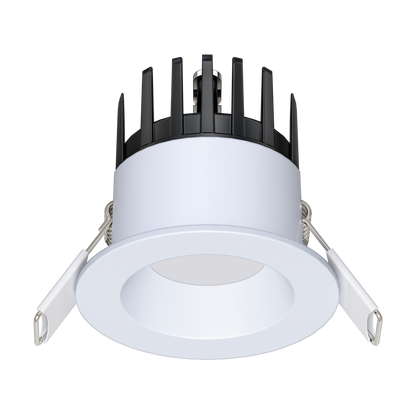

2" Round Regress slim

27,30,35,41,50k
Dimmable
500 Lumens
8 Watts
120 V
View full details

Information

General Specs
Product Code
G-48508
Description
RS2/8W/R/LED/5CCT
shape
Round
style
Trimmed
size
2 Inch
finish
White
diffuser
Frosted
number of lights
1

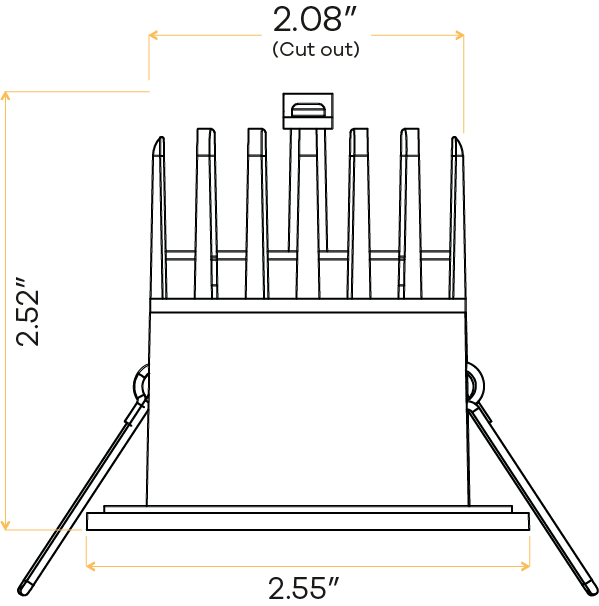

cutout
2.08"
OD (Outside dimensions)
2.55"
height
2.52"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
696304485089
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
500
CRI
>90
beam spread deg
100°
Electrical Specs
watt
8W
volts
120V
output current
170mA
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec Revit

Accessories

New construction plate
G-98800 (2 Punchouts) G-98810 (2 Punchouts) G-19982 (0 Punchouts)
Colored Covers
G-22020 Black G-22021 Bronze G-22022 Nickel G-22023 Brass G-22024 Copper
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 8 Watt
