G-96720
Regulus

2" round trimless regress slim

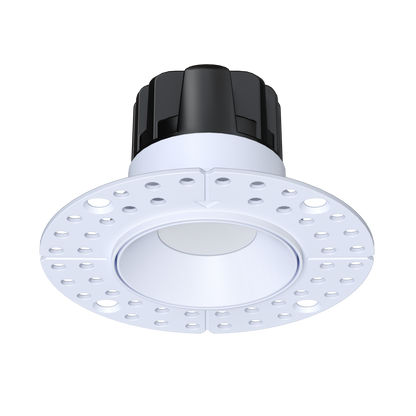

2" Round Trimless Regress Slim

27,30,35,41,50k
Dimmable
550/825 Lumens
8/12 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-96720
Description
RS2/WS2/R/LED/TL/5CCT
shape
Round
style
Trimless
size
2 Inch
finish
White
diffuser
Frosted
number of lights
1

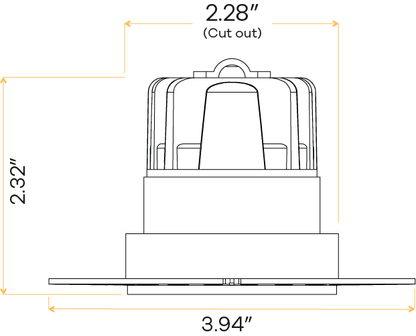

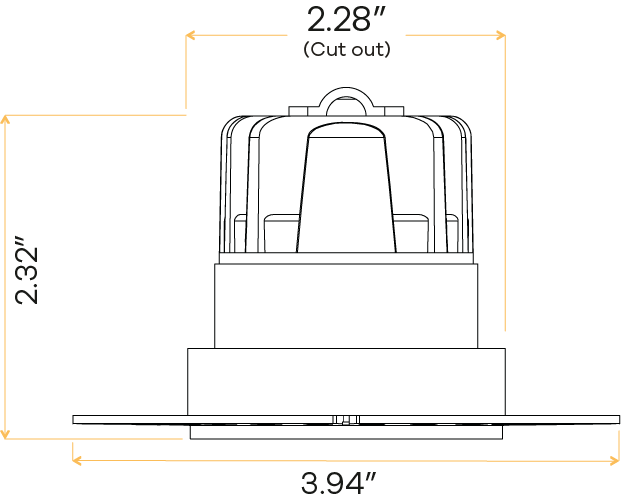

cutout
2.28”

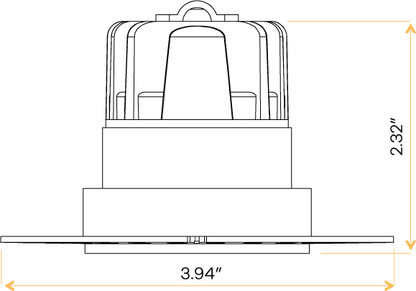

OD (Outside dimensions)
3.94"
height
2.32"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379967205
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
550/825
CRI
>90
beam spread deg
100°
Electrical Specs
watt
8/12W
volts
120-277V
output current
180mA/275mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Only at 8W
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (3 Punchouts) G-98810 (3 Punchouts) G-19982 (1 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 8 Watt G-95824 12 Watt
