G-96721
Regulus

3" round trimless regress slim

3" Round Trimless Regress Slim

27,30,35,41,50k
Dimmable
750 Lumens
10 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-96721
Description
RS3/10W/R/LED/TL/5CCT
shape
Round
style
Trimless
size
3 Inch
finish
White
diffuser
Frosted
number of lights
1

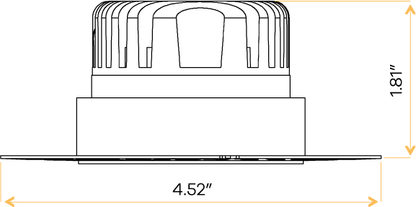

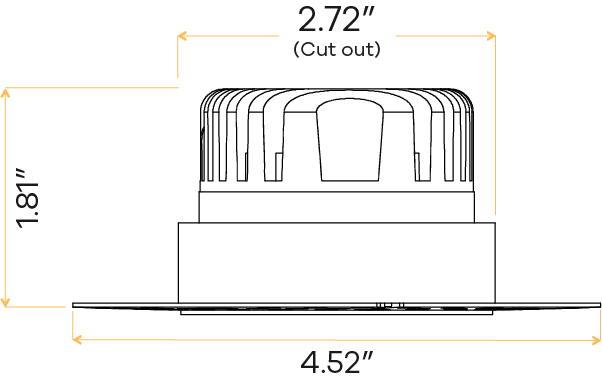

cutout
2.72"
OD (Outside dimensions)
4.52"
height
1.81"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431967213
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
750
CRI
>90
beam spread deg
100°
Electrical Specs
watt
10W
volts
120-277V
output current
230mA
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES Revit

Accessories

New construction plate
G-98800 (3 Punchouts) G-98810 (3 Punchouts) G-19982 (1 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95824 10 Watt
