G-12024

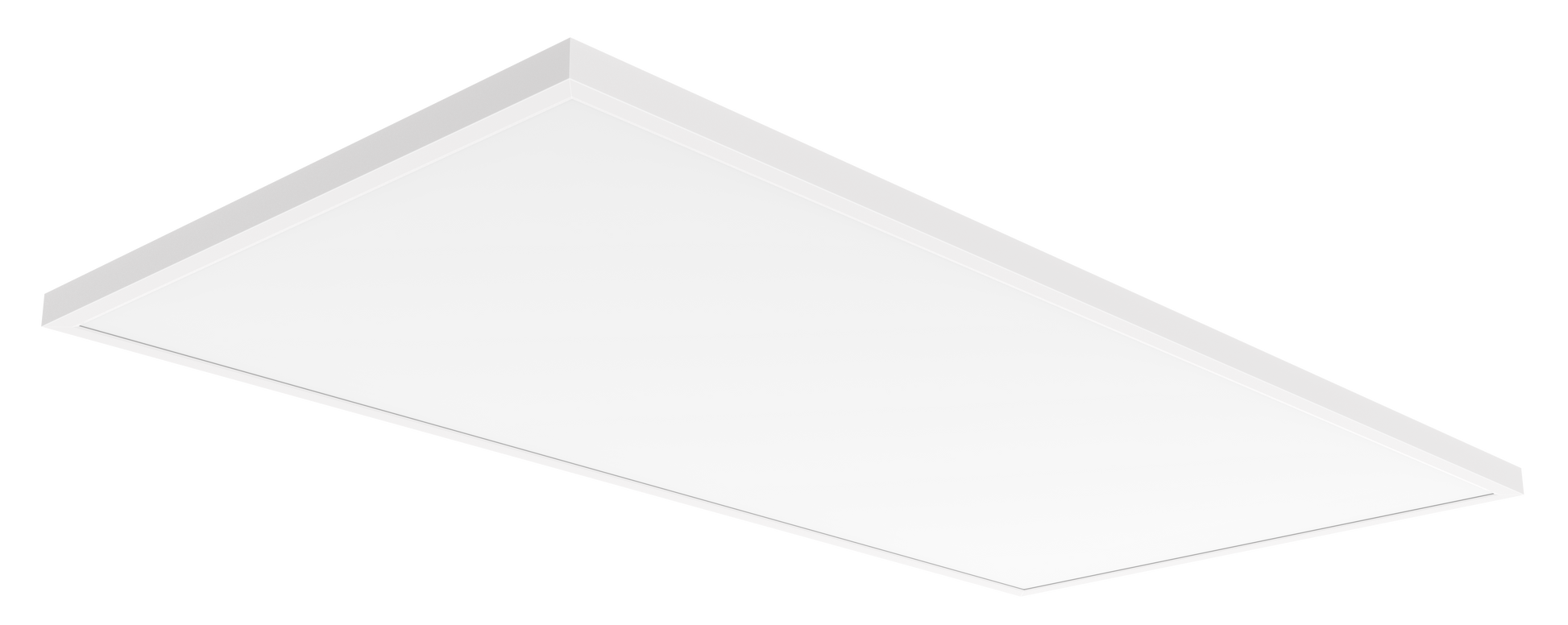

2x4 surface mount panel
2X4 Surface Mount Panel
Dimmable
5000/6000/7500 Lumens
40/50/62 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-12024
Description
GL/SM/2X4/62W/LED/WS3/5CCT
shape
2X4
finish
White
diffuser
Frosted
number of lights
1
OD (Outside dimensions)
23.74" X 48.03"
height
1.10"
mounting
Surface mount
Packaging Information
master pack
2
Barcode
024441120240
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
5000/6000/7500
CRI
80
beam spread deg
120°
Electrical Specs
watt
40/50/62W
volts
120-277V
output current
200-1450mA
dimming type
0-10V Dimming
Compliance
location rating
Wet
warranty
5 Years
classification
ETL, Title 24, Energy Star
