G-12062
Glawre'

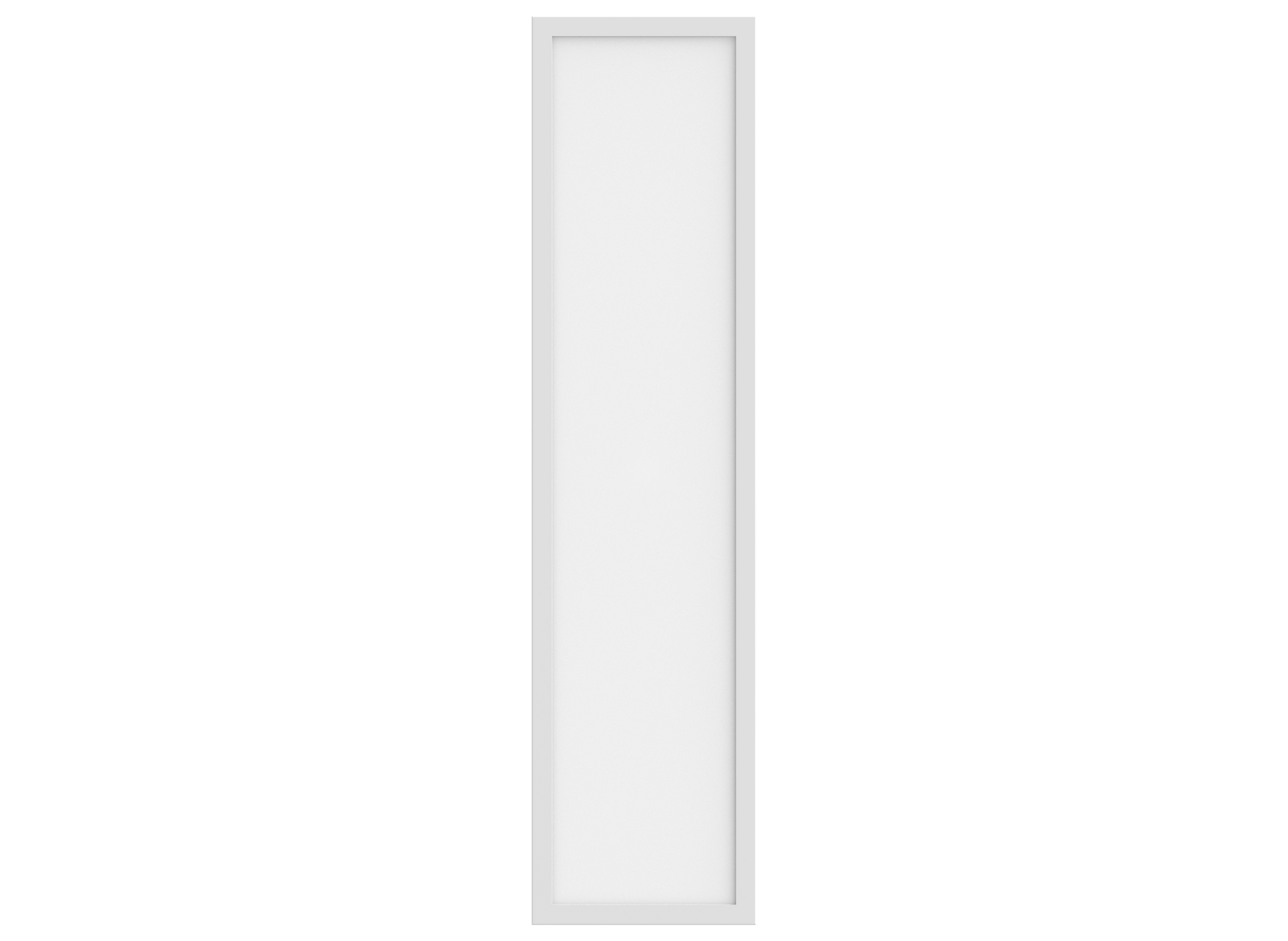

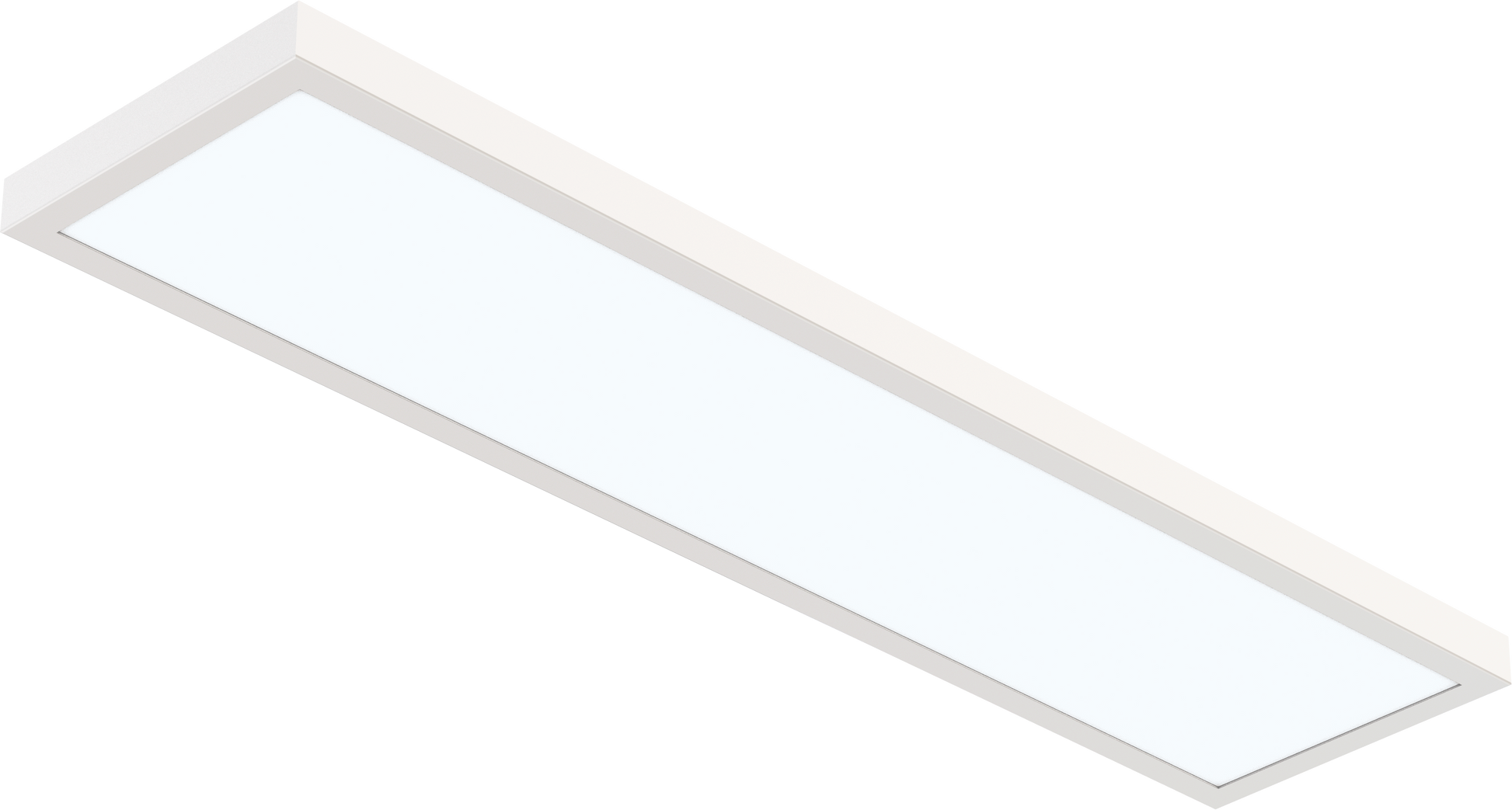

6″x2′ surface mount panel

6″X2′ Surface Mount Panel

30,35,41,50,65k
Dimmable
2420 Lumens
22 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-12062
Description
GL/SM/6”X2’/22W/LED/5CCT
shape
Rectangle
size
6” X 2’
finish
White
diffuser
Frosted
number of lights
1
OD (Outside dimensions)
5.90" X 23.89"
height
1.04"
mounting
Surface mount
Packaging Information
master pack
10
Barcode
990379120624
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
2420
CRI
80
beam spread deg
120°
Electrical Specs
watt
22W
volts
120-277V
output current
200mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
classification
ETL Listed

Downloads

Product Spec Family Sheet Instruction Sheet

Accessories

Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
