G-12064
Glawre'

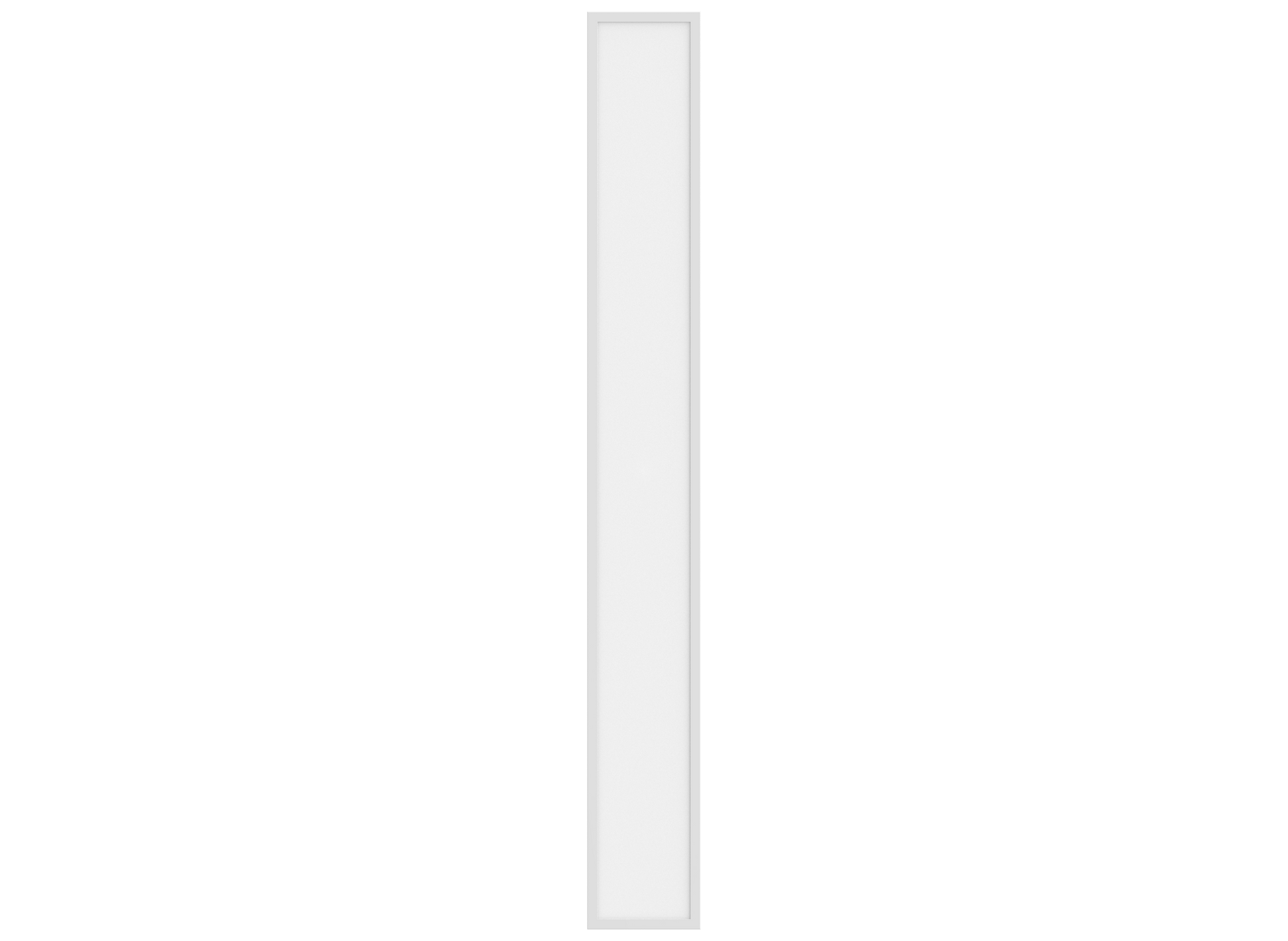

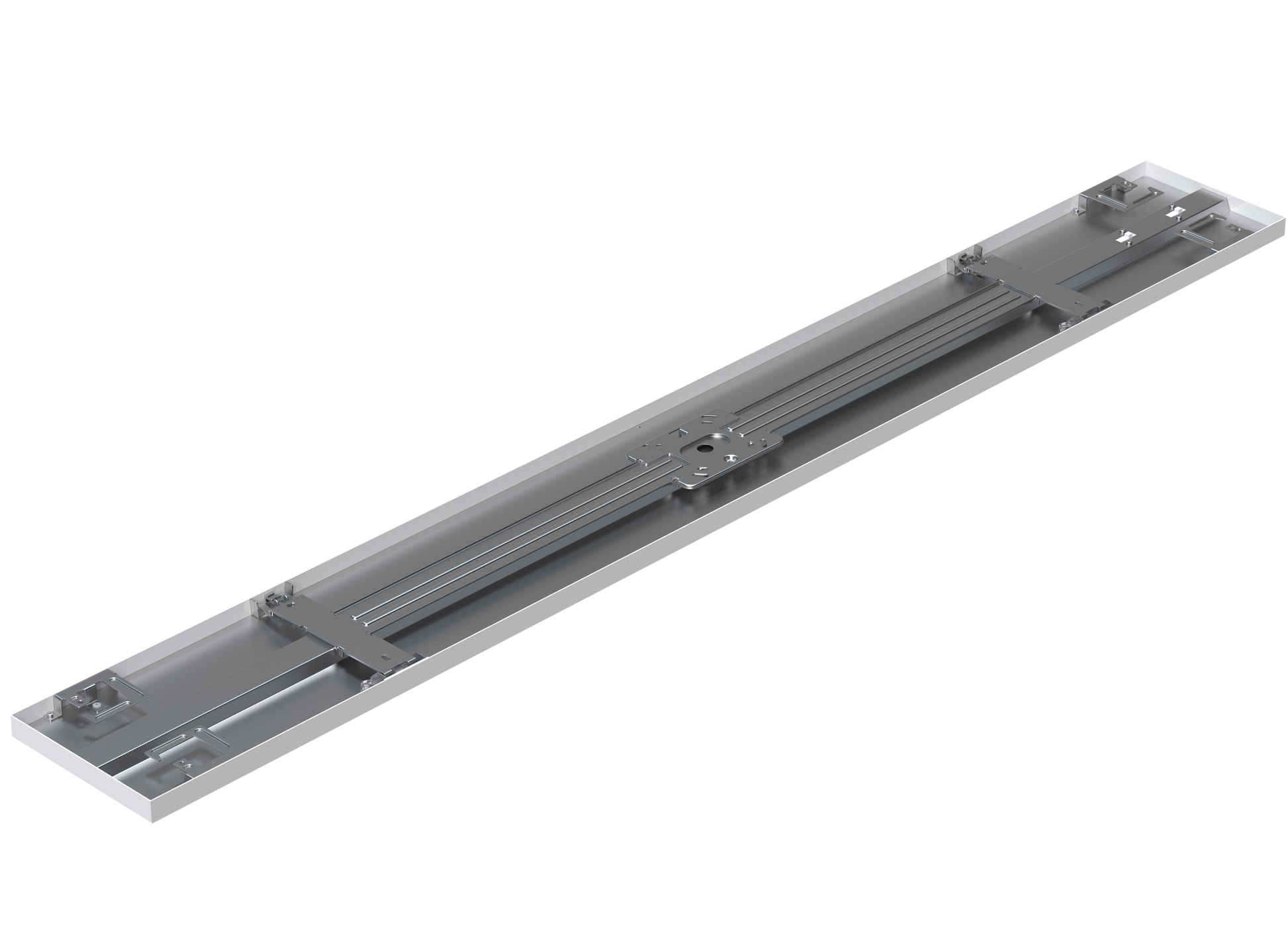

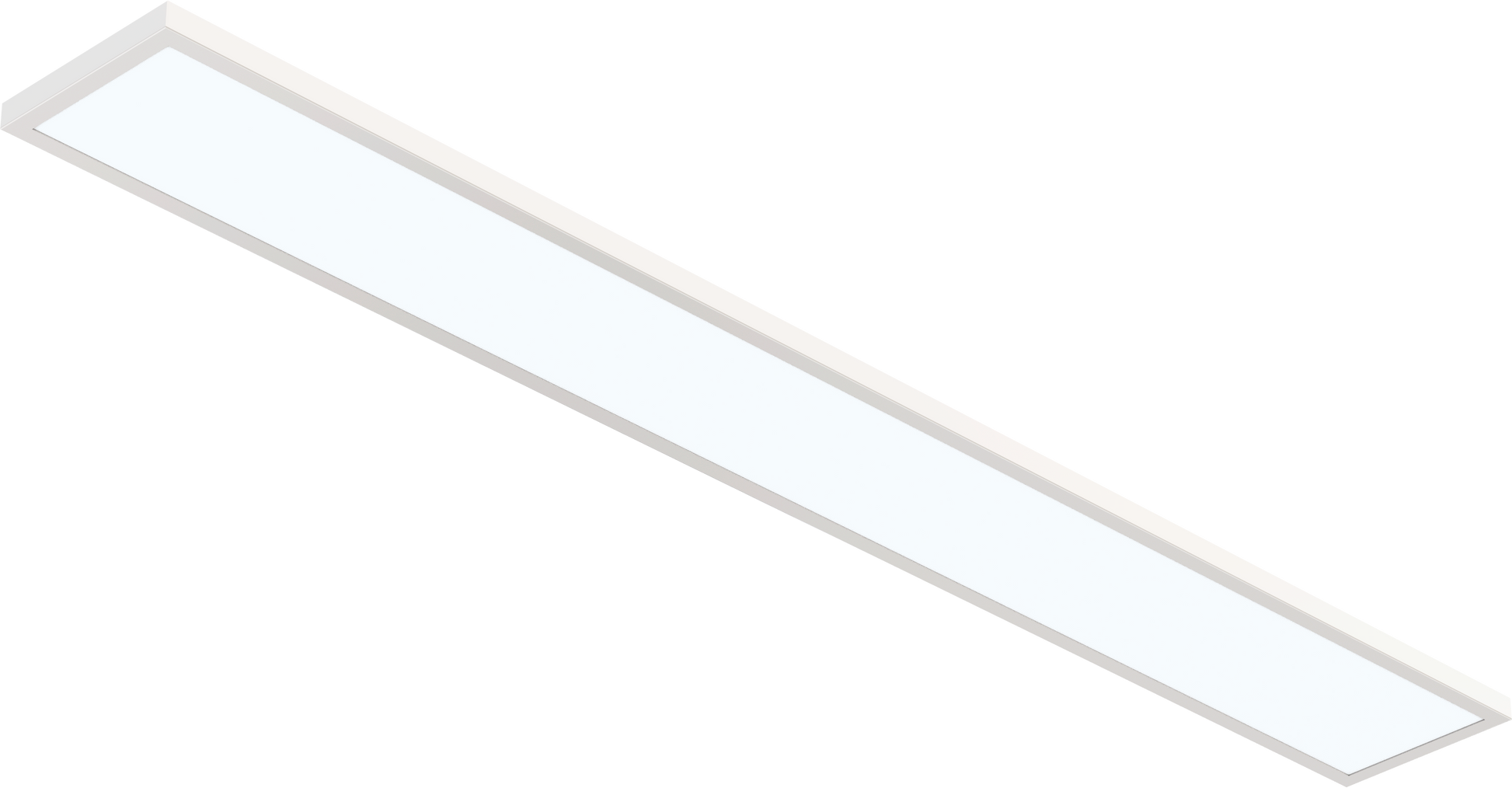

6″x4′ surface mount panel

6″X4′ Surface Mount Panel

30,35,41,50,65k
Dimmable
2200/3300/4400 Lumens
20/30/40 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-12064
Description
GL/SM/6”X4’/40W/LED/3WS/5CCT
shape
Rectangle
size
6” X 4’
finish
White
diffuser
Frosted
number of lights
1
OD (Outside dimensions)
5.90" X 47.75"
height
1.04"
mounting
Surface mount
Packaging Information
master pack
4
Barcode
990379120648
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
2200/3300/4400
CRI
80
beam spread deg
120°
Electrical Specs
watt
20/30/40W
volts
120-277V
output current
370mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
classification
ETL Listed

Downloads

Product Spec Family Sheet Instruction Sheet

Accessories

Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
