G-20094
Saturn

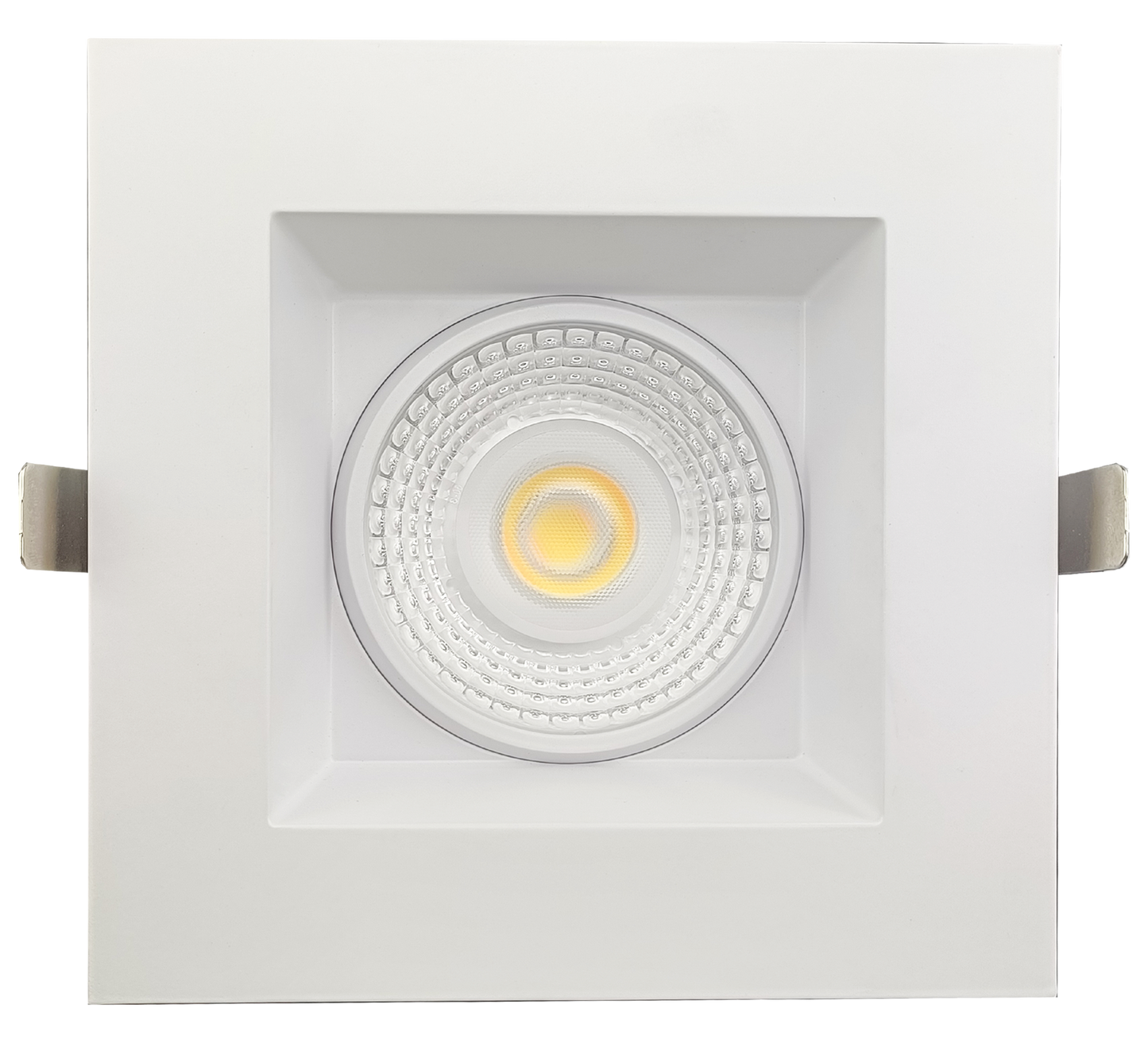

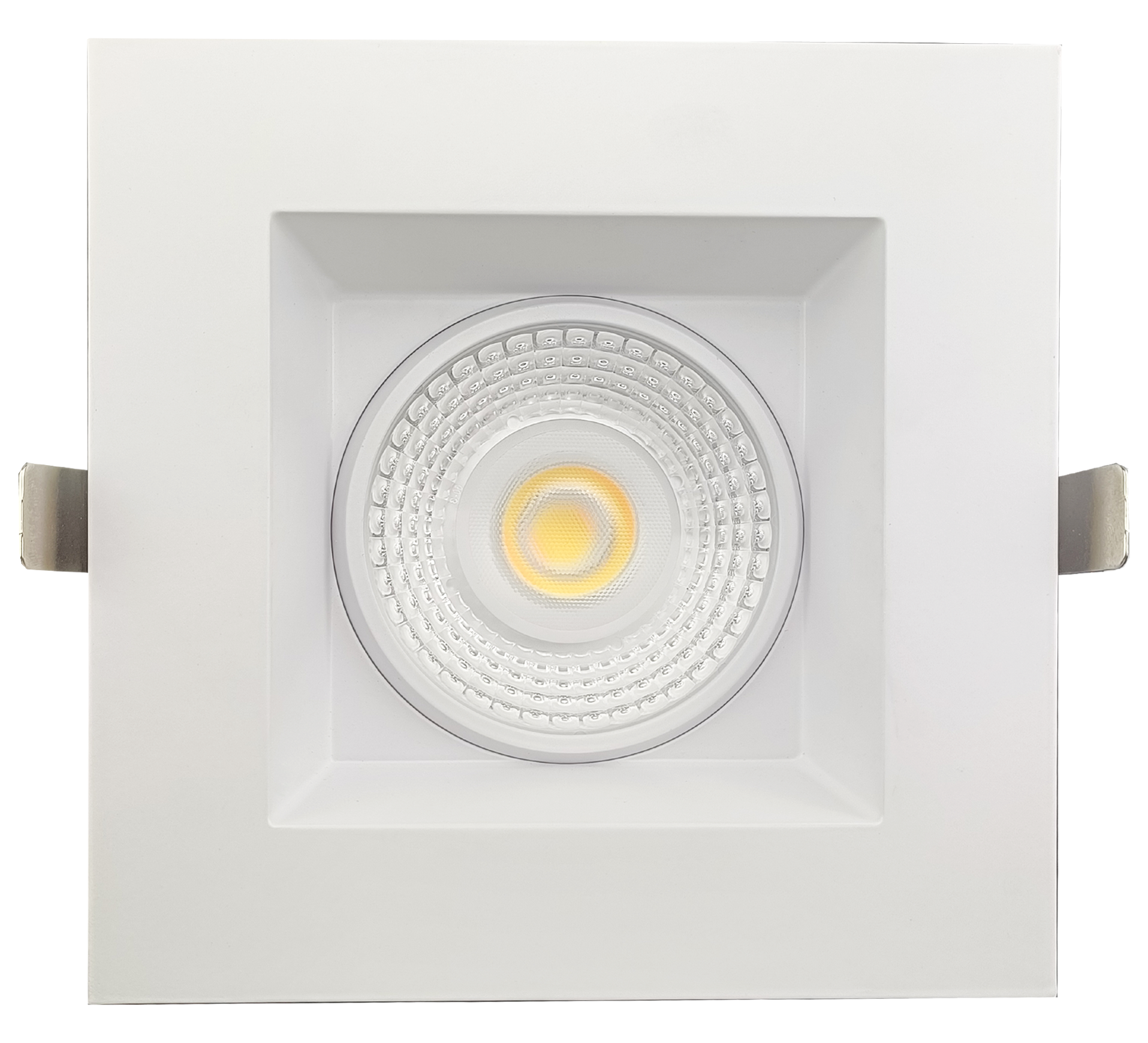

6" square regress gimbal (white)

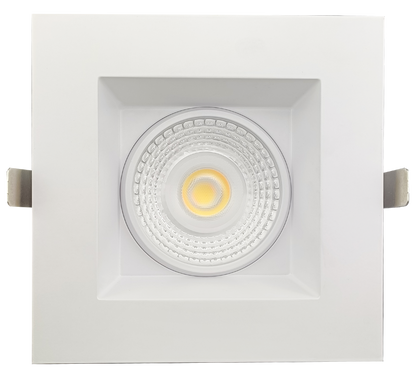

6" Square Regress Gimbal (White)

27,30,35,41,50k
Dimmable
2200 Lumens
22 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20094
Description
R6/22W/GRS/LED/5CCT
shape
Square
style
Trimmed
size
6 Inch
finish
White
diffuser
Clear
number of lights
1

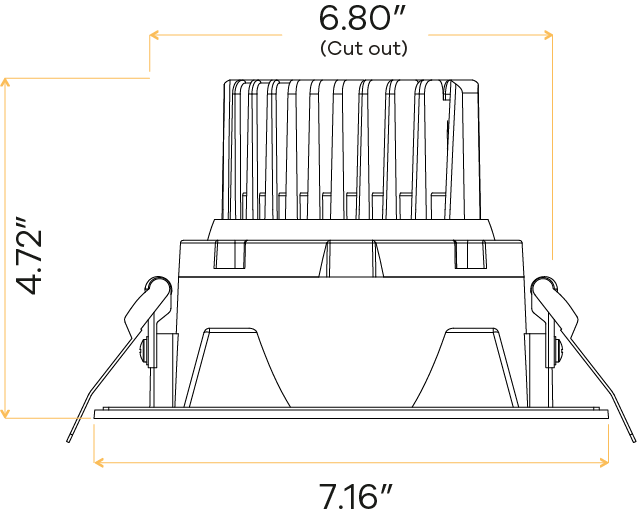

cutout
SQ 6.00” RD 6.80”
OD (Outside dimensions)
7.16"
height
4.72"
mounting
Clip-in
Packaging Information
master pack
6
Barcode
749354200949
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
2200
CRI
90>
beam spread deg
60° (Default)
tilt angle
30°
rotating
360°
Electrical Specs
watt
22W
volts
120-277V
output current
500mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec IES
