G-20096

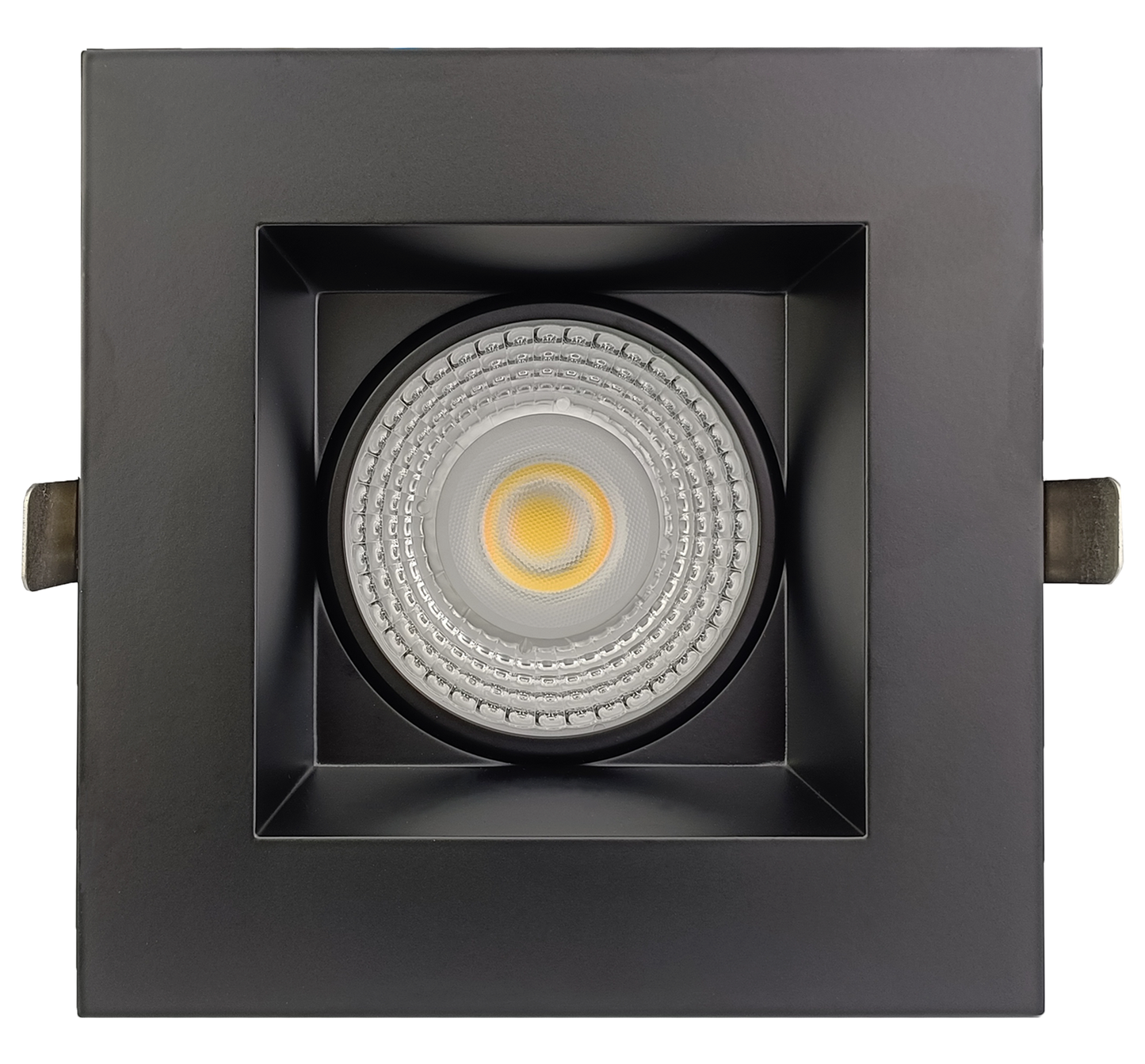

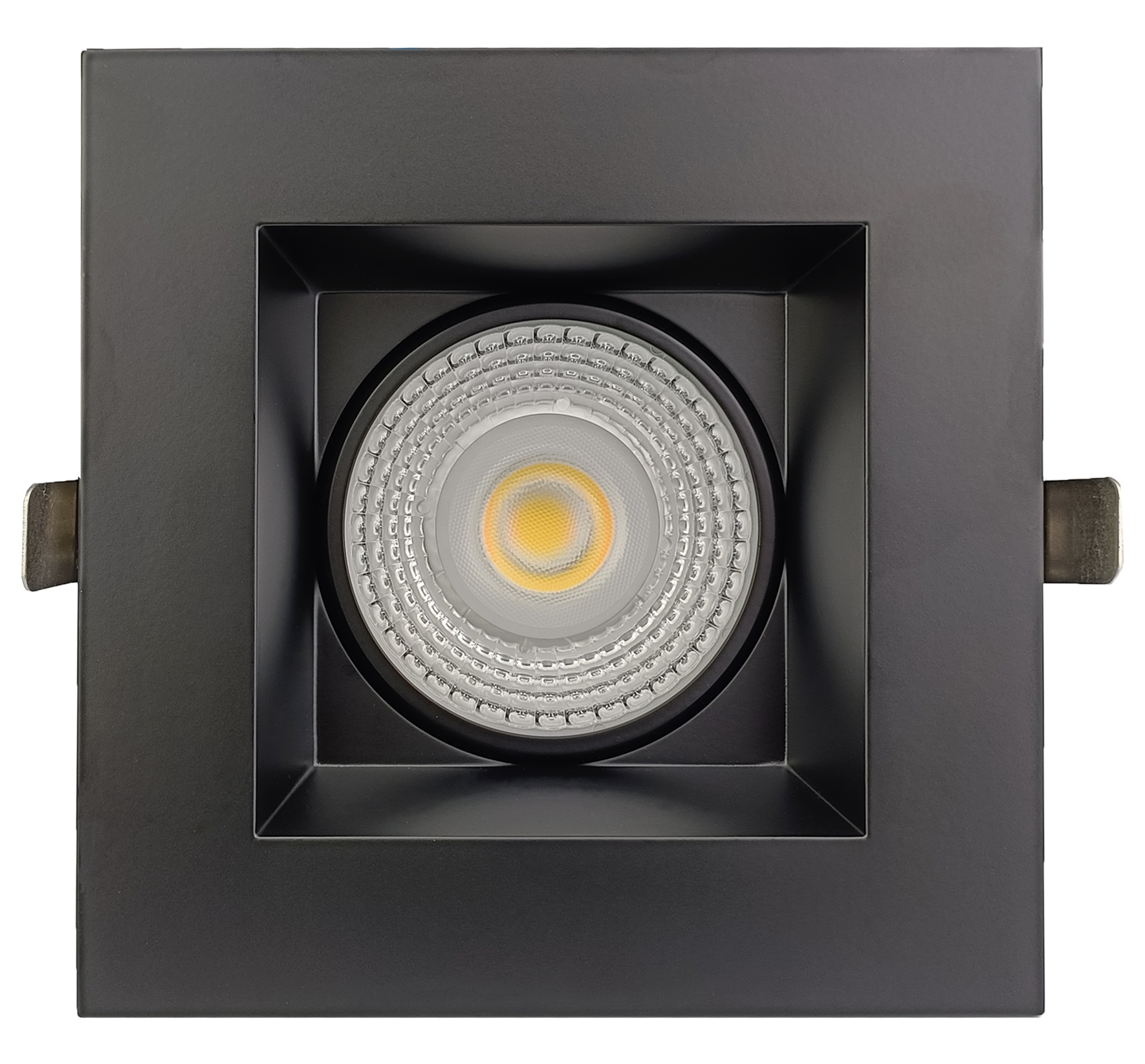

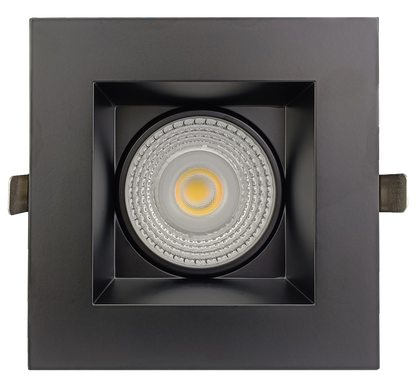

6" square regress gimbal (black)
6" Square Regress Gimbal (Black)
Dimmable
2200 Lumens
22 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-20096
Description
R6/22W/GRS/LED/5CCT BK
Shape
Square
Style
Trimmed
Size
6 Inch
Finish
Black
Diffuser
Clear
Number of Lights
1
Cutout
SQ 6.00” RD 6.80”
OD (Outside dimensions)
7.16"
Height
4.72"
Mounting
Clip-in
Packaging Information
Master pack
6
Barcode
749354200963
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
2200
CRI
90>
Beam Spread Deg
60° (Default)
Tilt Angle
30°
Rotating
360°
Electrical Specs
Watt
22W
Volts
120-277V
Output Current
500mA
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet
Warranty
3 Years
IC Rated
Yes
Classification
ETL, Title24 Listed
IES
