G-20216
Venus

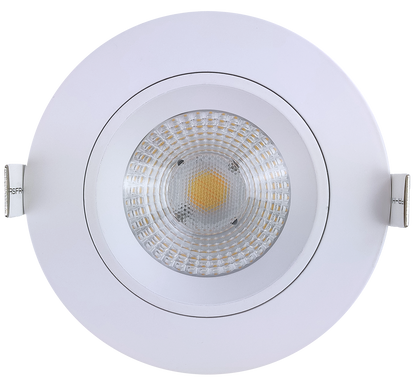

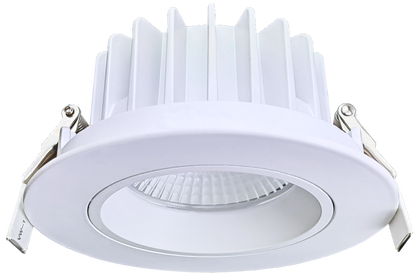

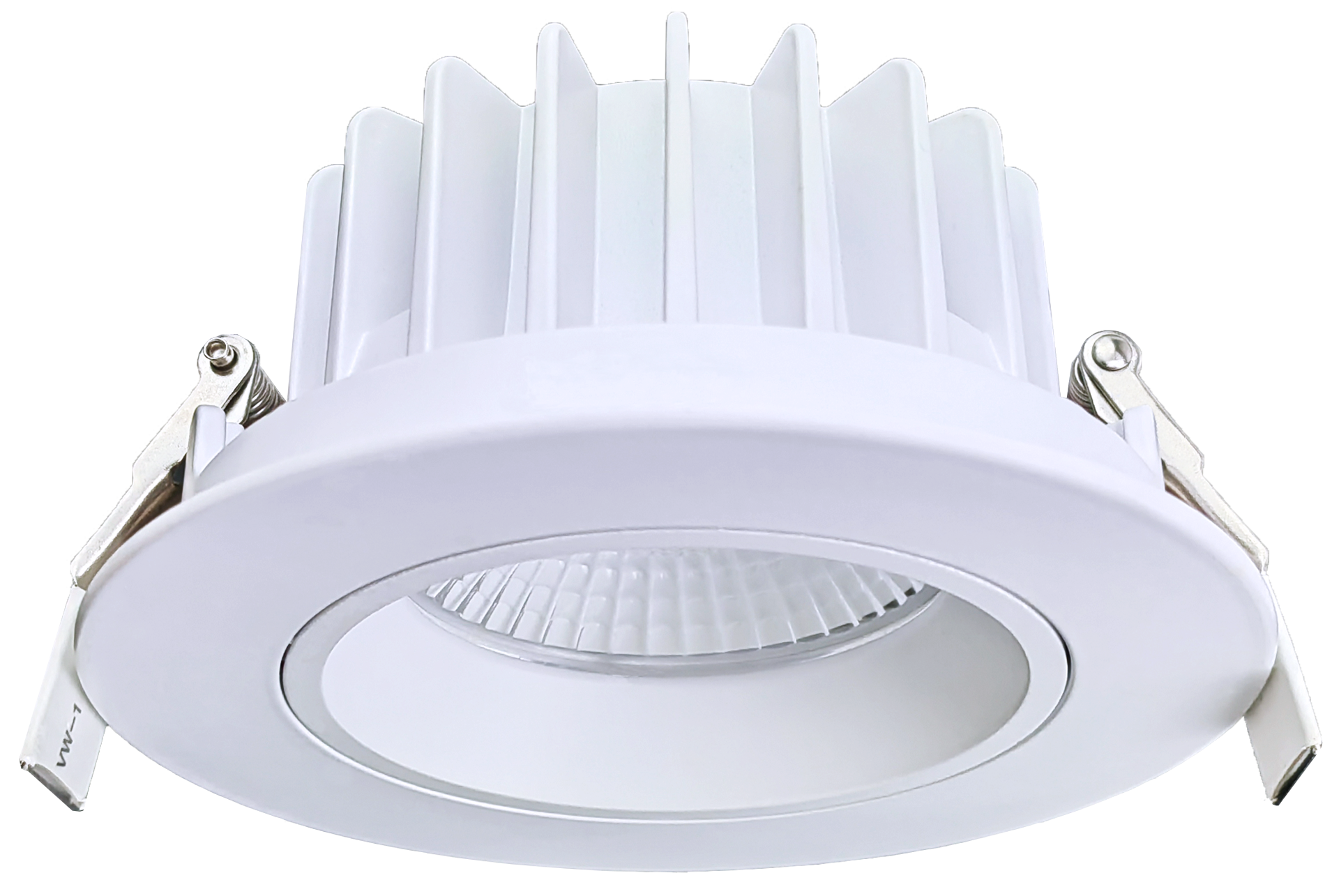

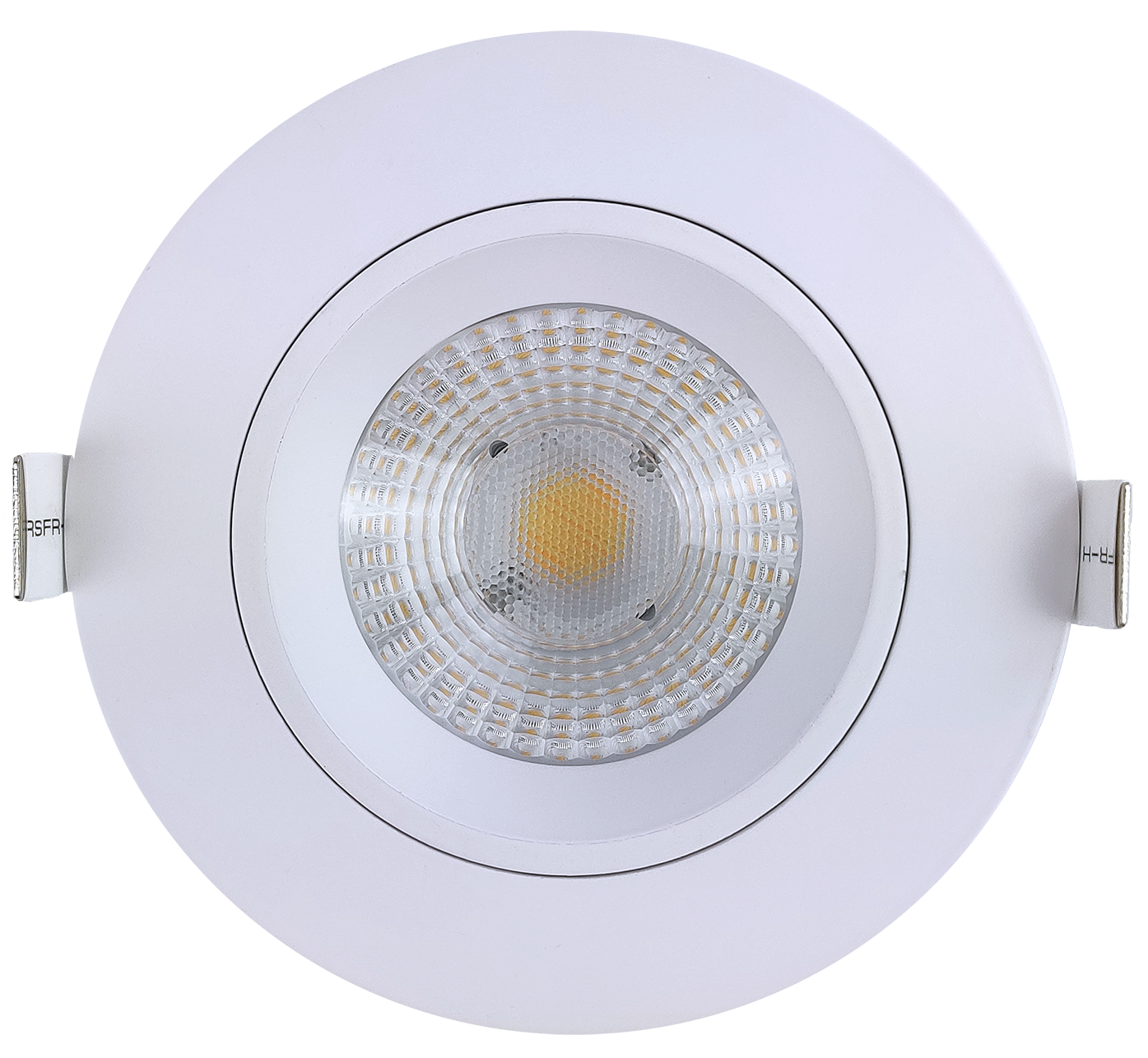

5” regress round luminaire (white)

5” Regress Round Luminaire (White)

27,30,35,41,50k
Dimmable
2000/2600/3500 Lumens
23/30/40 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20216
Description
R5/40W/WS3/R/LED/5CCT
shape
Round
style
Trimmed
size
5 Inch
finish
White
diffuser
Clear
number of lights
1
cutout
5.00''
OD (Outside dimensions)
5.71"
height
2.70"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354202165
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
2000/2600/3500
CRI
>90
beam spread deg
60°
Electrical Specs
watt
23/30/40W
volts
120-277V
output current
980/750/550mA
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 23W
classification
ETL, Title 24 Listed

Downloads

Product Spec IES
