Venus

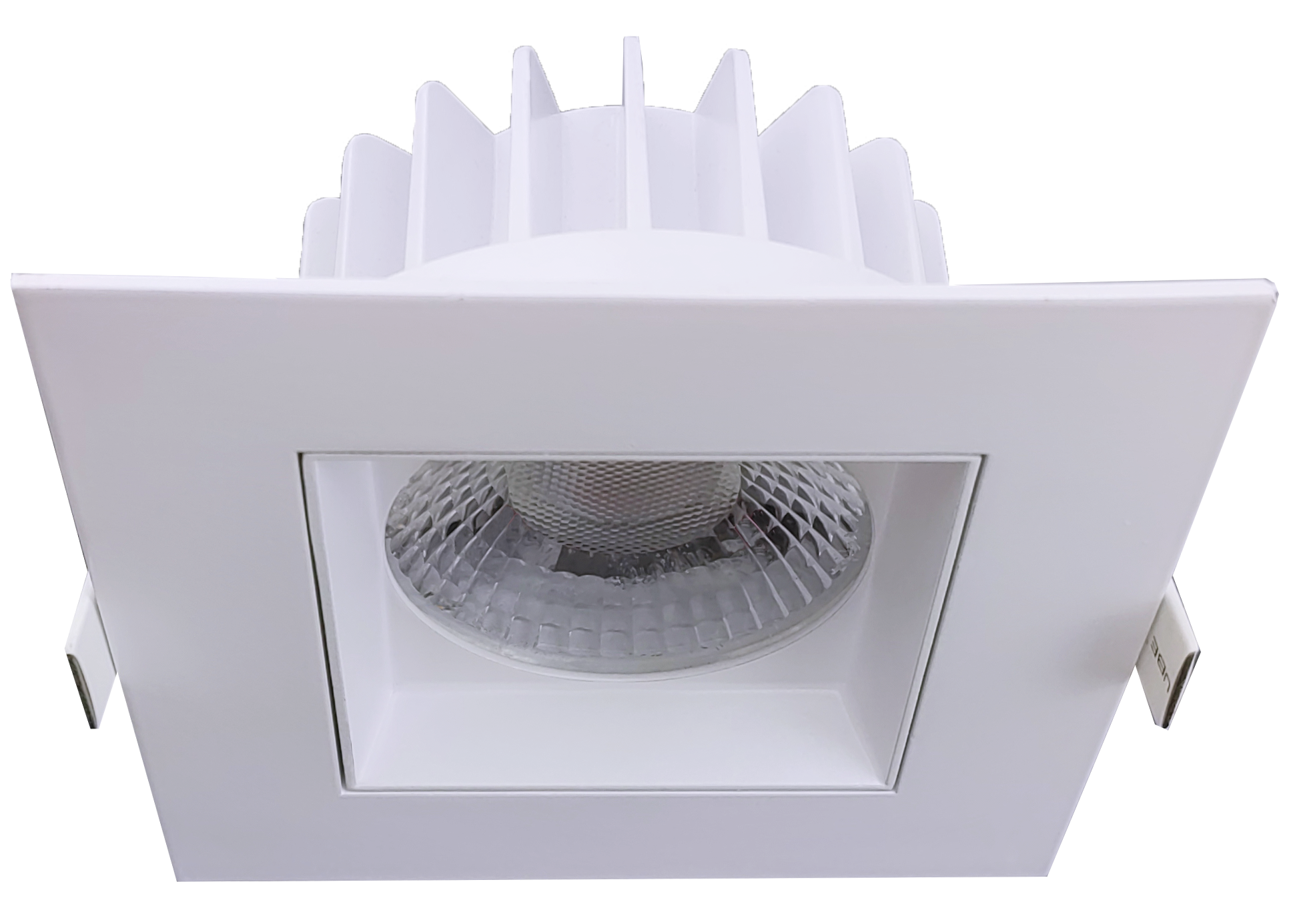

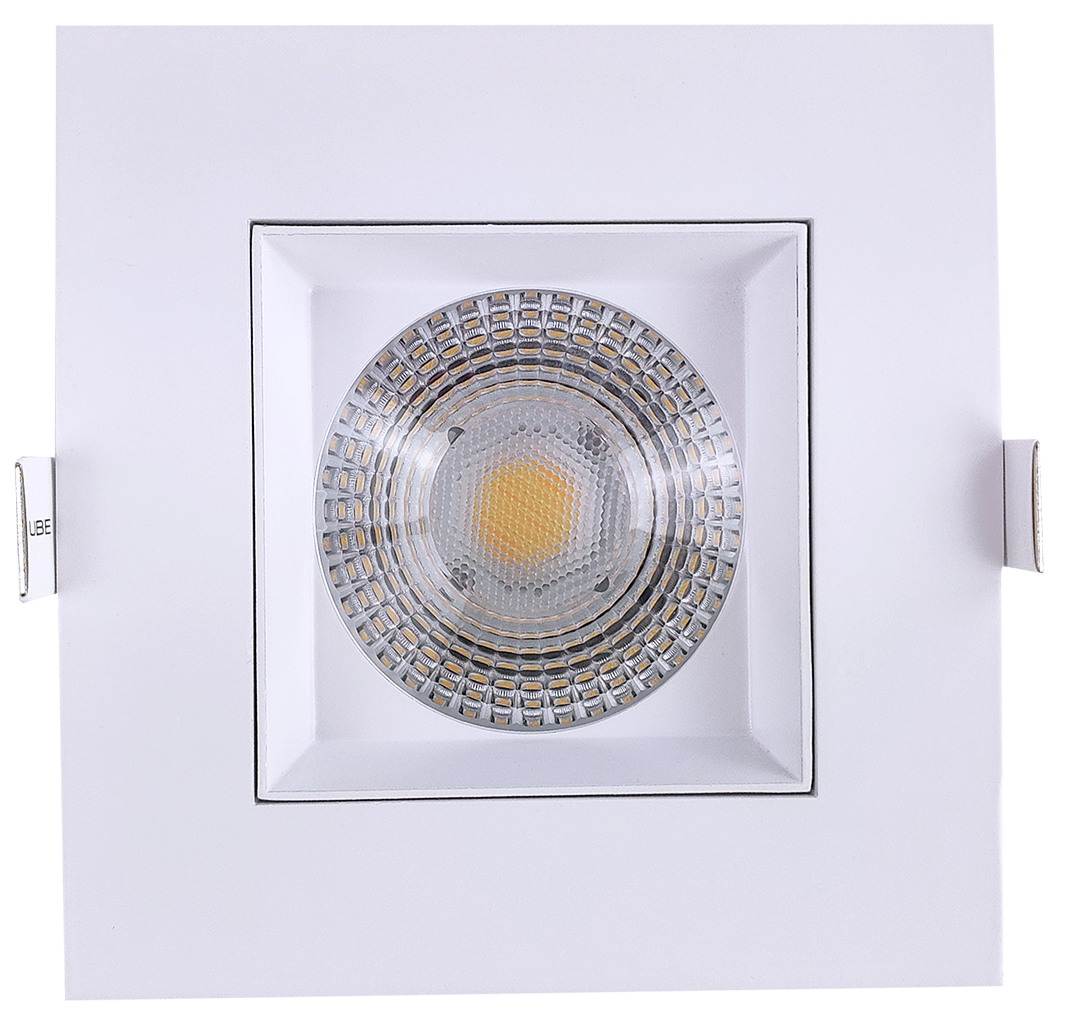

5” regress square luminaire (white)

5” Regress Square Luminaire (White)

27,30,35,41,50k
Dimmable
2000/2600/3500 Lumens
23/30/40 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20218
Description
R5/40W/WS3/SQ/LED/5CCT/BK
Shape
Square
Style
Trimmed
Size
5 Inch
Finish
White
Diffuser
Clear
Number of Lights
1
Cutout
5.00''
OD (Outside dimensions)
5.71"
Height
2.70"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
749354202189
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
2000/2600/3500
CRI
>90
Beam Spread Deg
60°
Electrical Specs
Watt
23/30/40W
Volts
120-277V
Output Current
980/750/550mA
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet
Warranty
3 Years
IC Rated
Only at 23W
Classification
ETL, Title 24 Listed

Downloads

Product Spec IES
