G-20227
Star

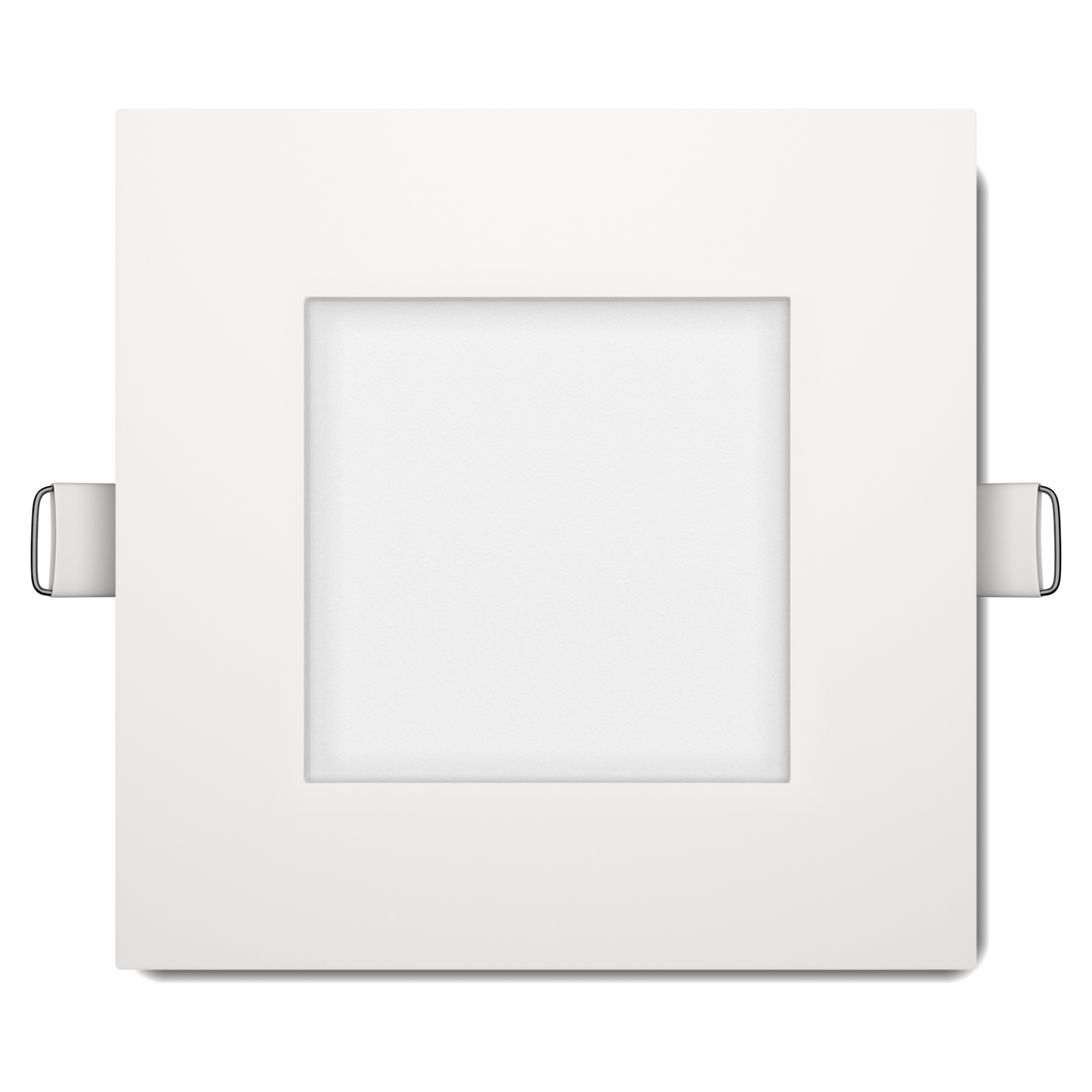

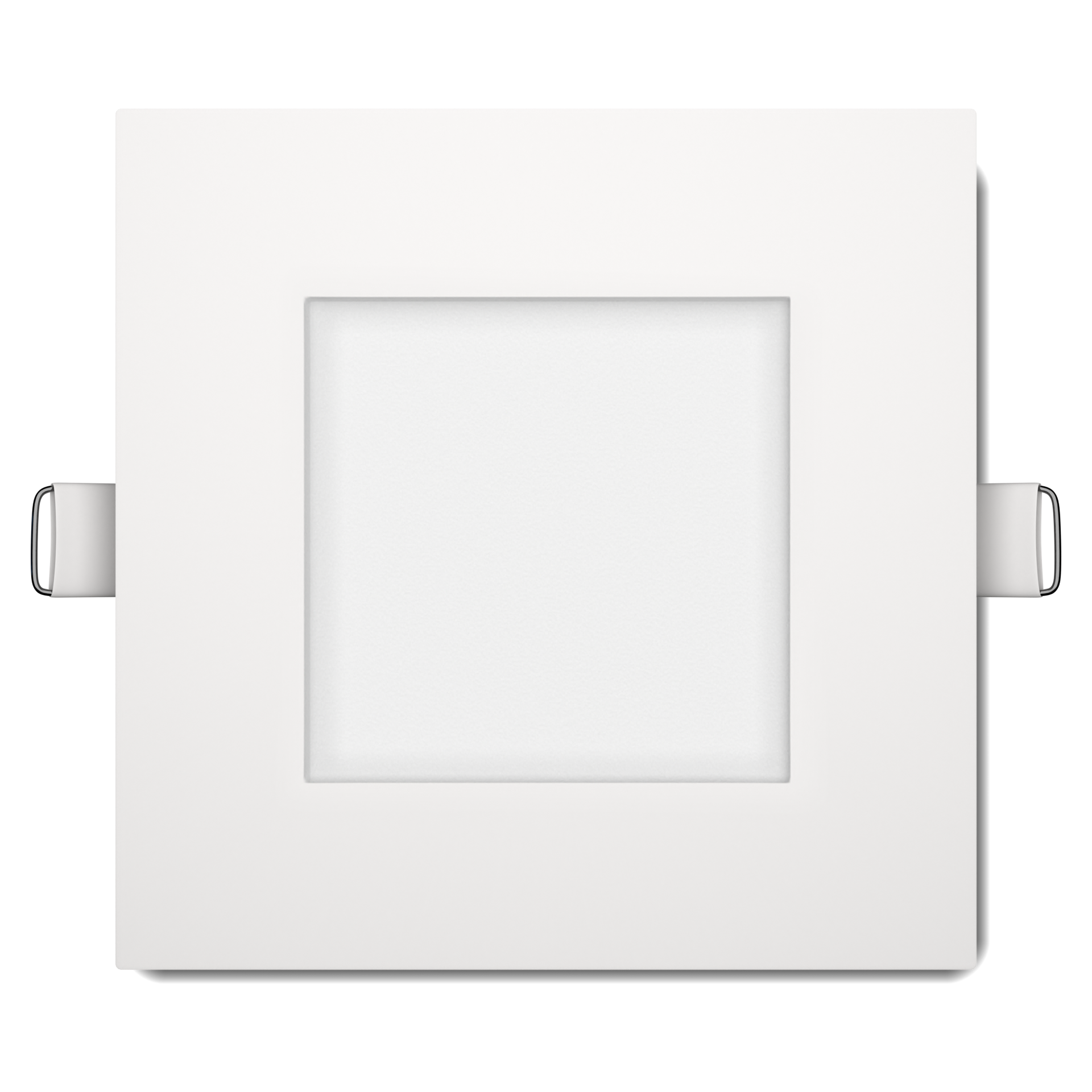

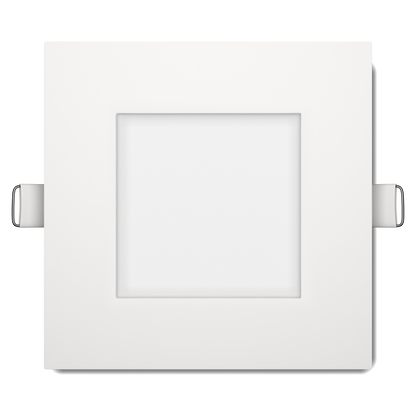

5" square flushed slim

5" Square Flushed slim

27,30,35,41,50k
Dimmable
1350 Lumens
15 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20227
Description
S5/15W/SQ/LED/5CCT
shape
Square
style
Trimmed
size
5 Inch
finish
White
diffuser
Frosted
number of lights
1

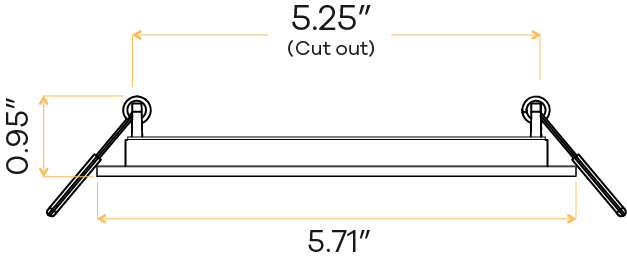

cutout
5.25”

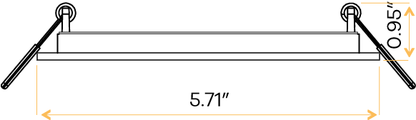

OD (Outside dimensions)
5.71"
height
.95"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354202271
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1350
beam spread deg
100°
Electrical Specs
watt
15W
volts
120-277V
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet Location
warranty
3 Years
classification
ETL Listed

Downloads

Product Spec IES

Accessories

Colored Covers
G-48391 Black G-48392 Nickel G-48393 Bronze G-48399 Brass

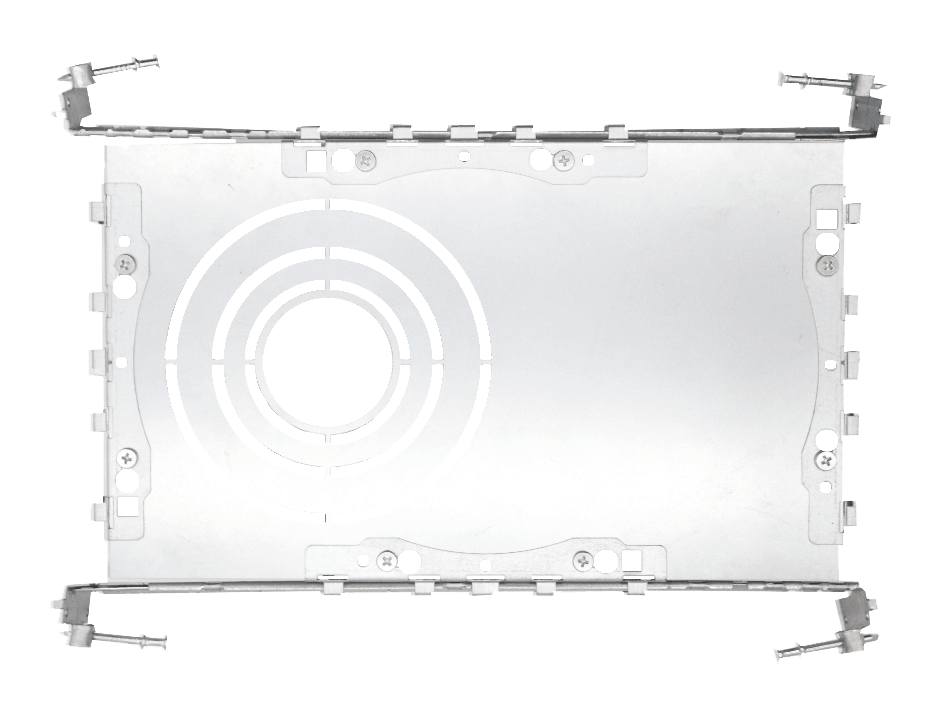

New construction plate
G-19979 (6 Punchouts) G-19975 (6 Punchouts) G-19981 (3 Punchouts) G-19982 (5 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt
