G-20228
Star

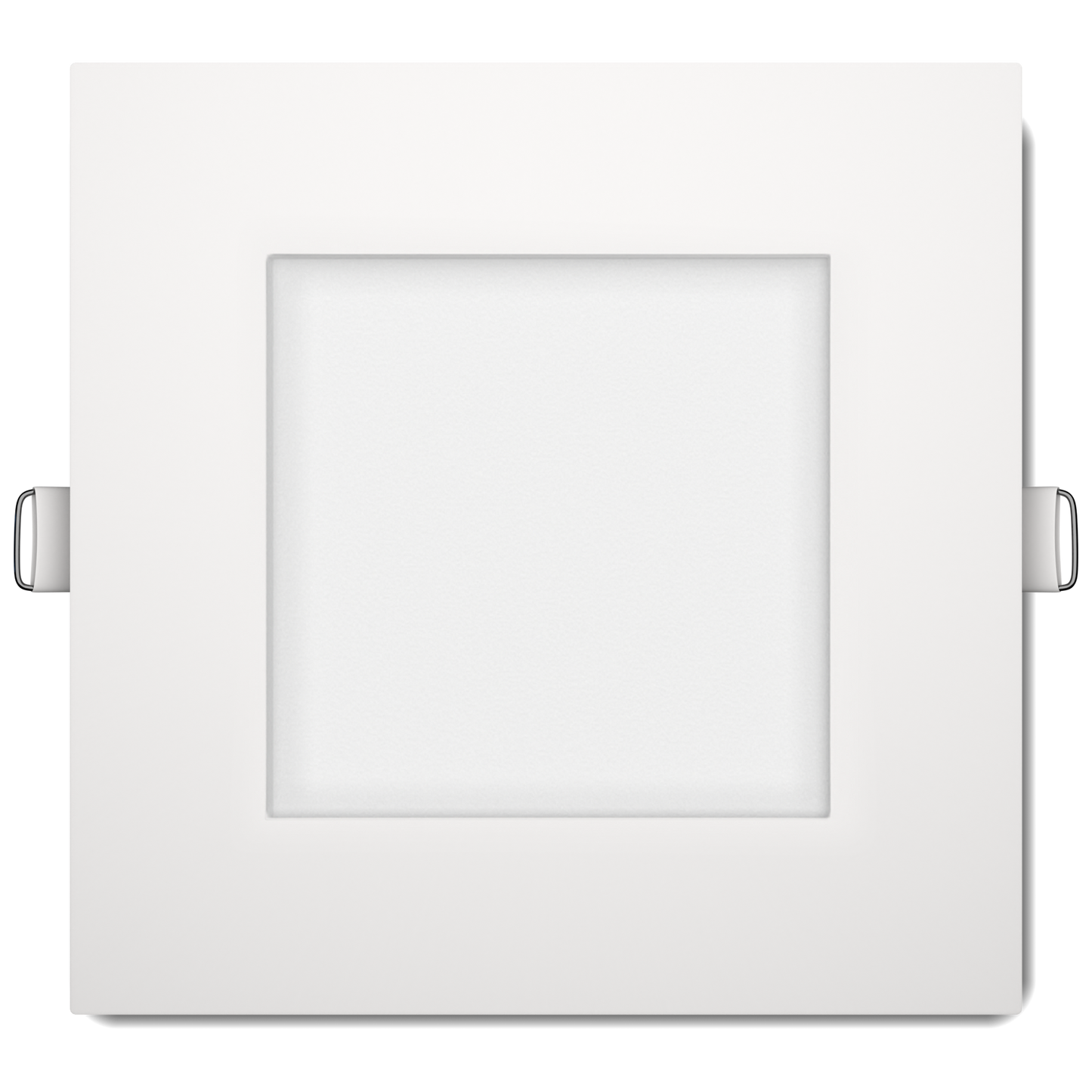

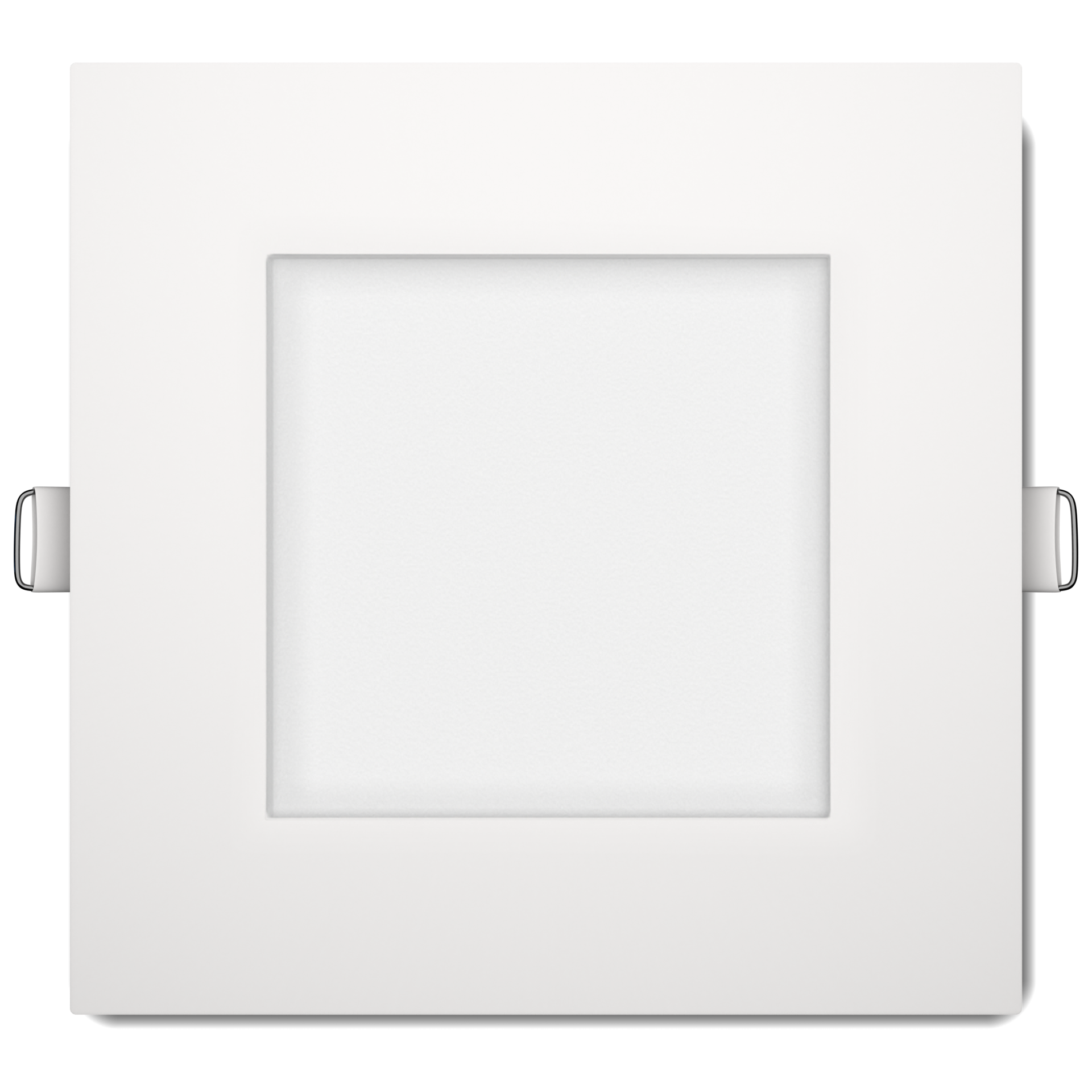

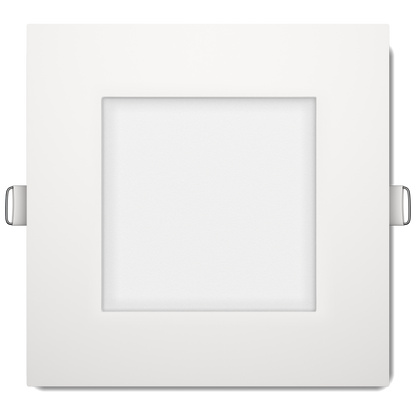

6" square flushed slim

6" Square Flushed slim

27,30,35,41,50k
Dimmable
1400 Lumens
18 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-20228
Description
S6/18W/SQ/LED/5CCT
shape
Square
style
Trimmed
size
6 Inch
finish
White
diffuser
Frosted
number of lights
1

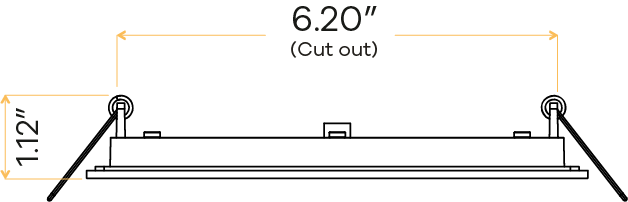

cutout
6.20”

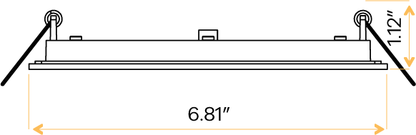

OD (Outside dimensions)
6.81"
height
1.12"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
749354202288
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400
beam spread deg
100°
Electrical Specs
watt
18W
volts
120-277V
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet Location
warranty
3 Years
classification
ETL Listed

Downloads

Product Spec IES

Accessories

Colored Covers
G-48394 Black G-48395 Nickel G-48396 Bronze G-48409 Brass
New construction plate
G-19975 (7 Punchouts) G-19979 (7 Punchouts) G-19969 (2 Punchouts) G-19982 (6 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 18 Watt
