G-20233

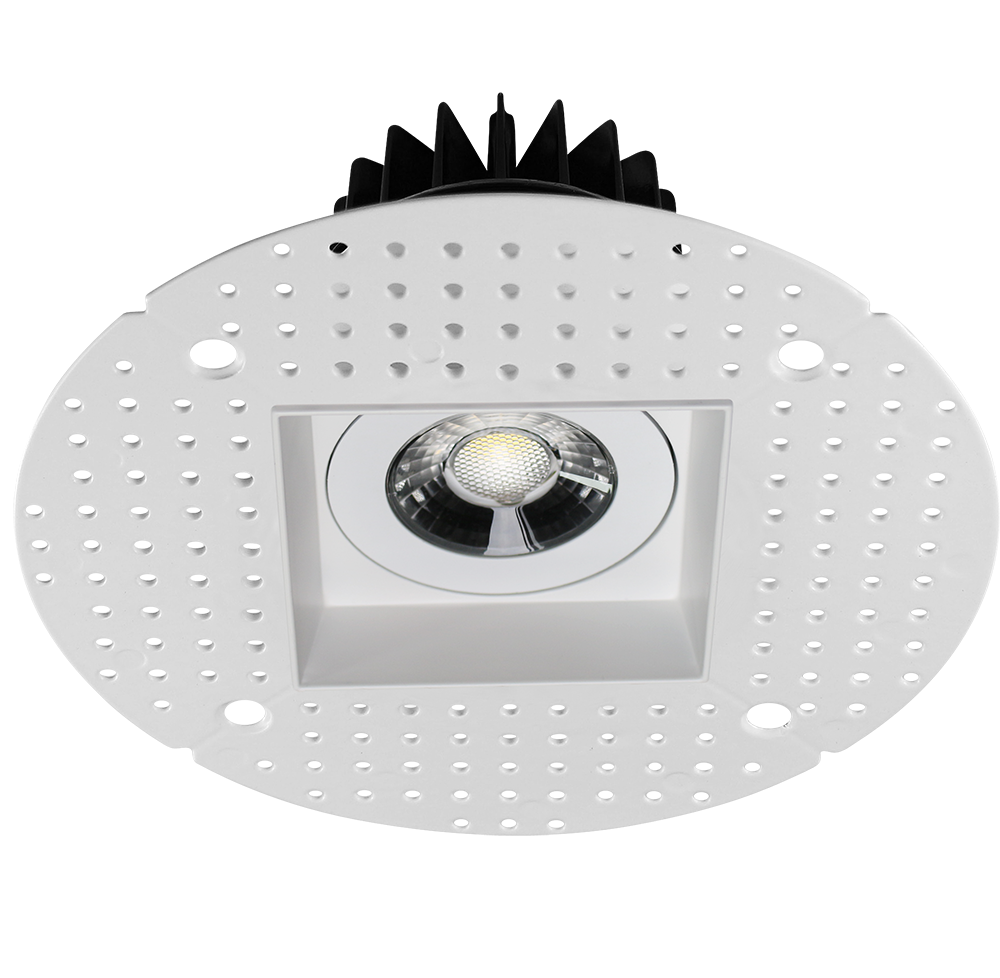

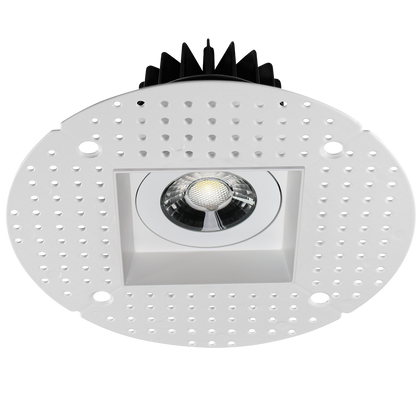

3.5” square trimless luminaire (white)

3.5” Square Trimless Luminaire (White)

27,30,35,41,50k
Dimmable
850 Lumens
12 Watts
120 V
View full details

Information

General Specs
Product Code
G-20233
Description
R3.5/12W/SQ/LED/TL/5CCT
shape
Square
style
Trimless
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
1

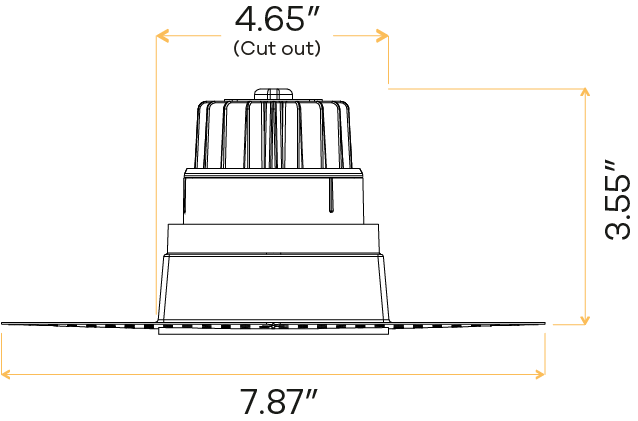

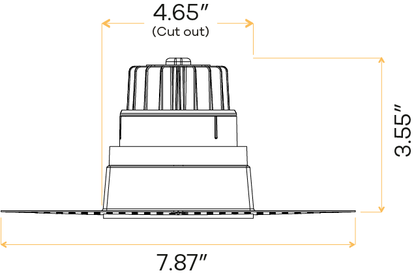

cutout
Sq 3.40” - Rd 4.65”
OD (Outside dimensions)
7.87"
height
3.55"
mounting
Mud-in
Packaging Information
master pack
18
Barcode
749354202332
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
850
CRI
>90
beam spread deg
40°
Electrical Specs
watt
12W
volts
120V
output current
270mA
dimming type
Triac
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL Listed

Downloads

Product Spec
