G-20234
Back

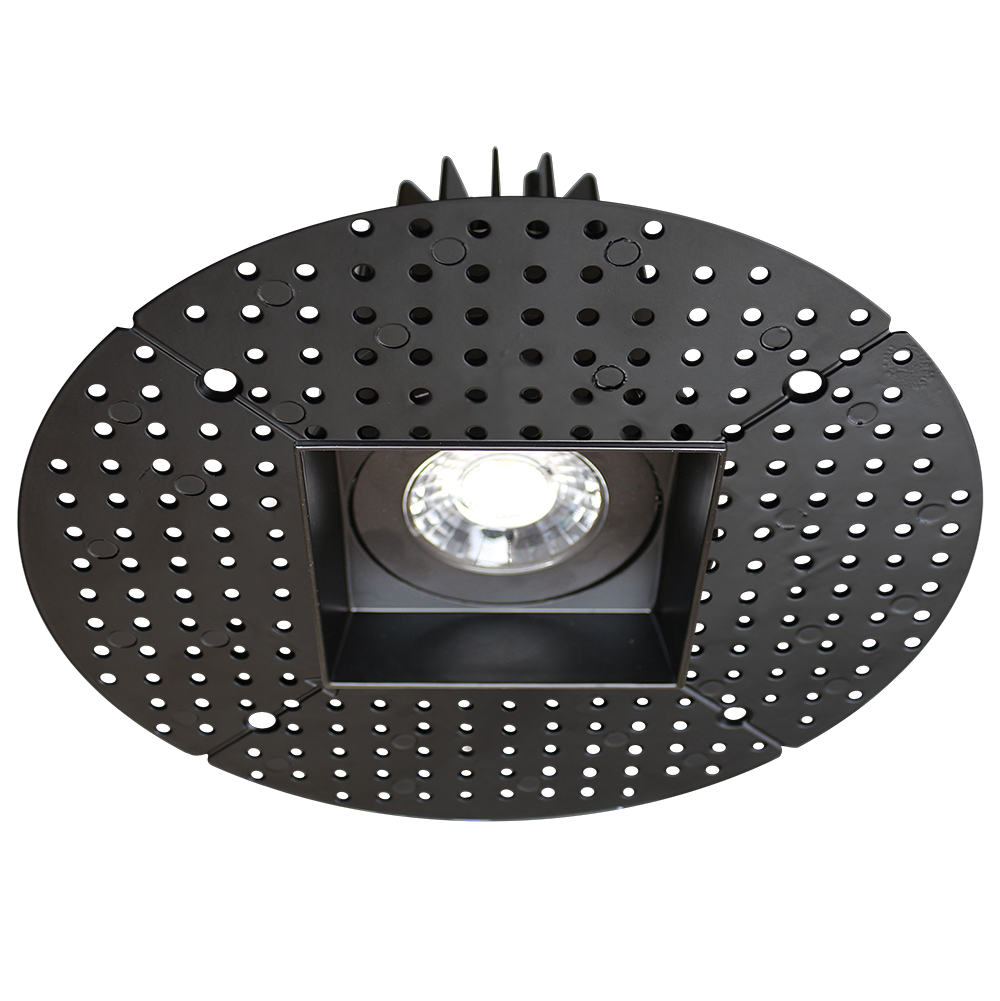

3.5” square trimless luminaire (black)

3.5” Square Trimless Luminaire (Black)

27,30,35,41,50k
Dimmable
850 Lumens
12 Watts
120 V
View full details

Information

General Specs
Product Code
G-20234
Description
R3.5/12W/SQ/LED/TL/5CCT B
Shape
Square
Style
Trimless
Size
3.5 Inch
Finish
Black
Diffuser
Clear
Number of Lights
1
Cutout
Sq 3.40” - Rd 4.65”
OD (Outside dimensions)
7.87"
Height
3.55"
Mounting
Mud-in
Packaging Information
Master pack
18
Barcode
749354202349
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
850
CRI
>90
Beam Spread Deg
40°
Electrical Specs
Watt
12W
Volts
120V
Output Current
270mA
Dimming Type
Triac
Compliance
Location Rating
Wet
Warranty
3 Years
IC Rated
Yes
Classification
ETL Listed

Downloads

Product Spec
