G-21051
Dipper

2" single head retractable white

2" Single Head Retractable White

27,30,35,41,50k
Dimmable
170 Lumens
3 Watts
120 V
View full details

Information

General Specs
Product Code
G-21051
Description
DP2/SQ/3W/5CCT/WT
shape
Square
style
Trimmed
size
2 Inch
finish
White
diffuser
Clear
number of lights
1

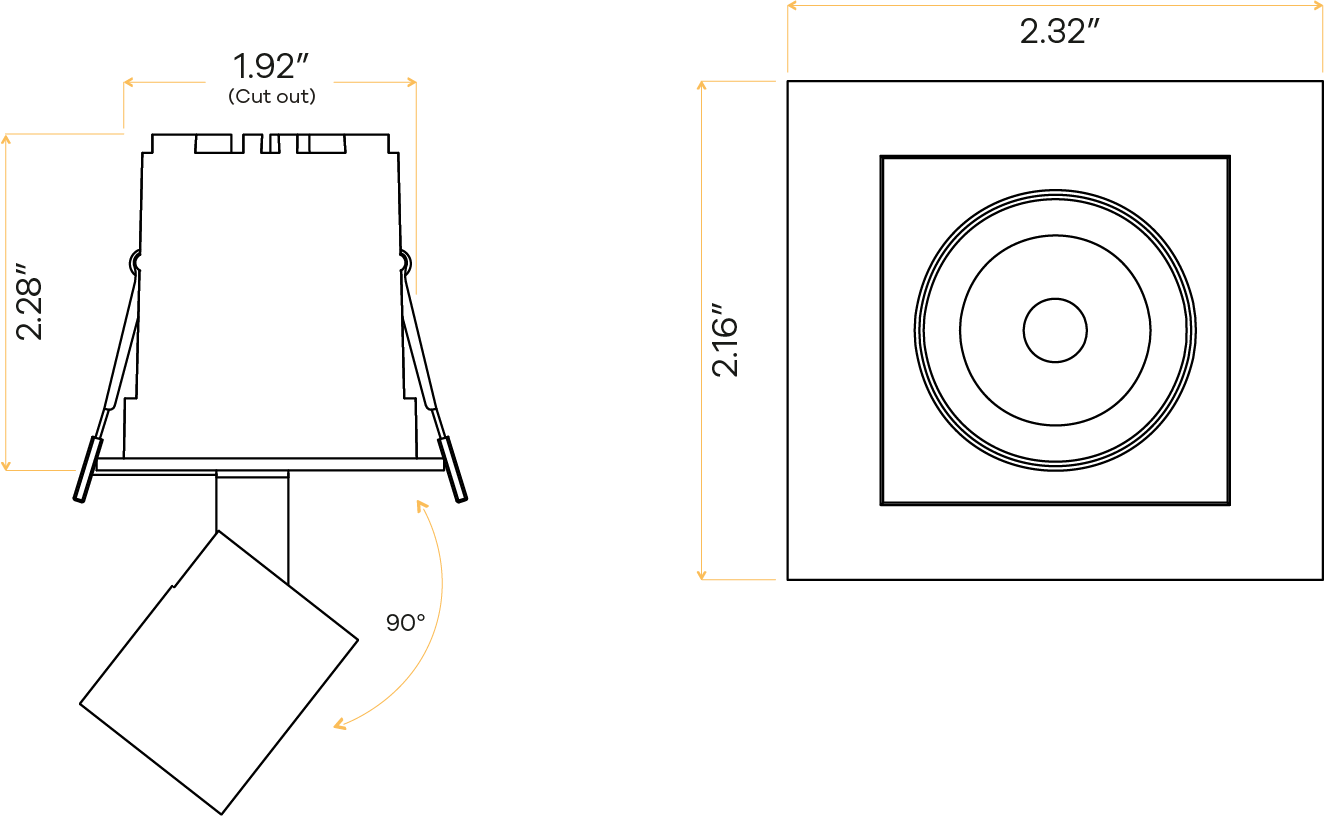

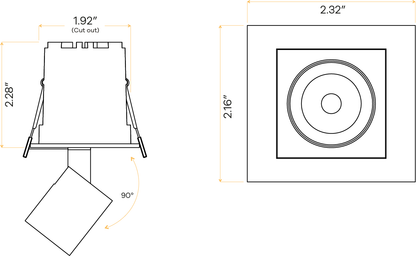

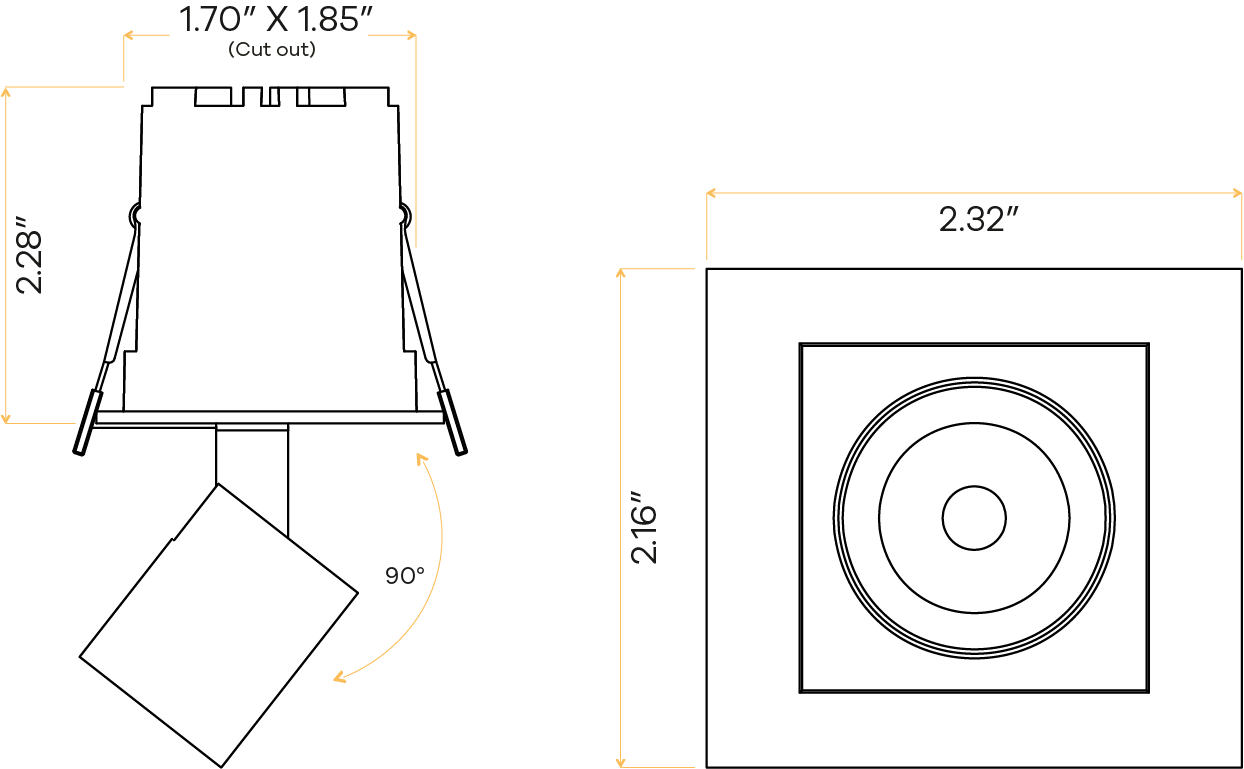

cutout
1.70” X 1.85”
OD (Outside dimensions)
2.32" X 2.16"
height
2.28”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
742131210513
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
170
CRI
90>
beam spread deg
40°
tilt angle
90°
rotating
360°
Electrical Specs
watt
3W
volts
120V
output current
420mA
plenum rated
FT6
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Damp
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New construction plate
G-21062 (0 Punchouts)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
