G-21055
Dipper

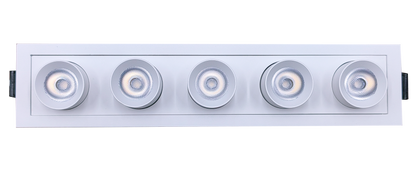

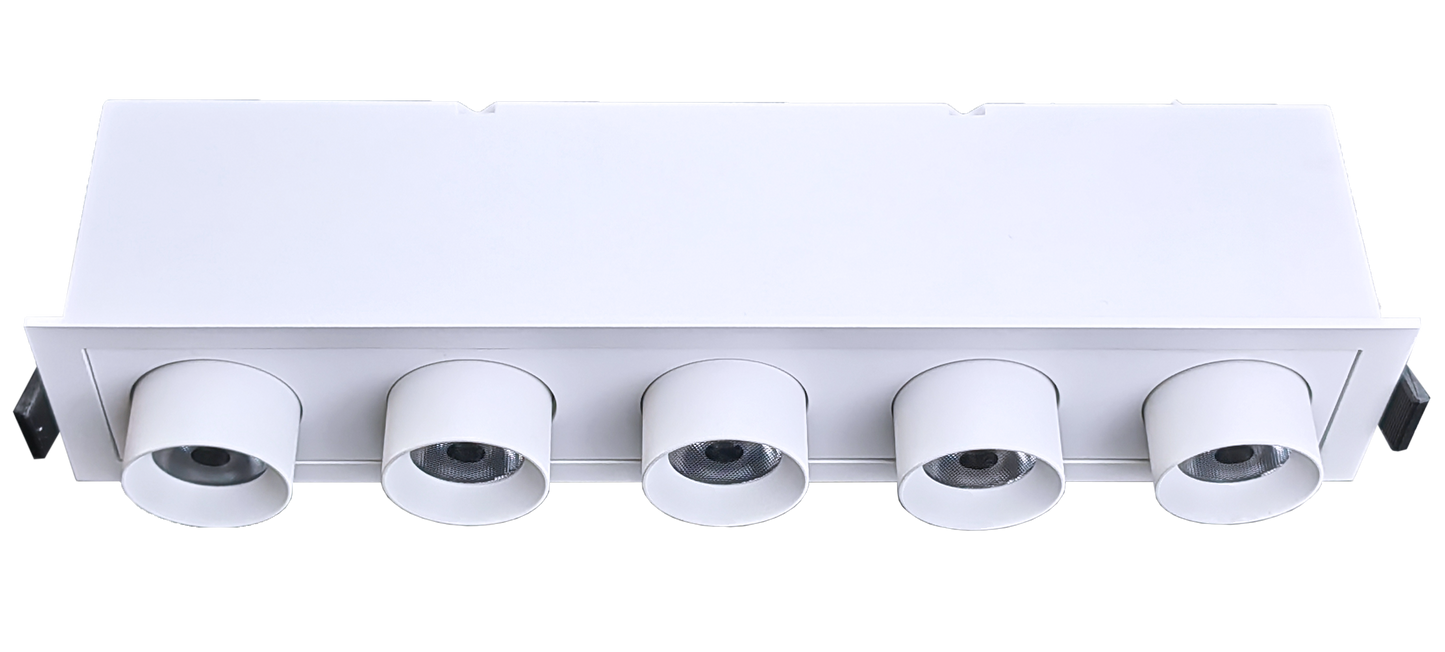

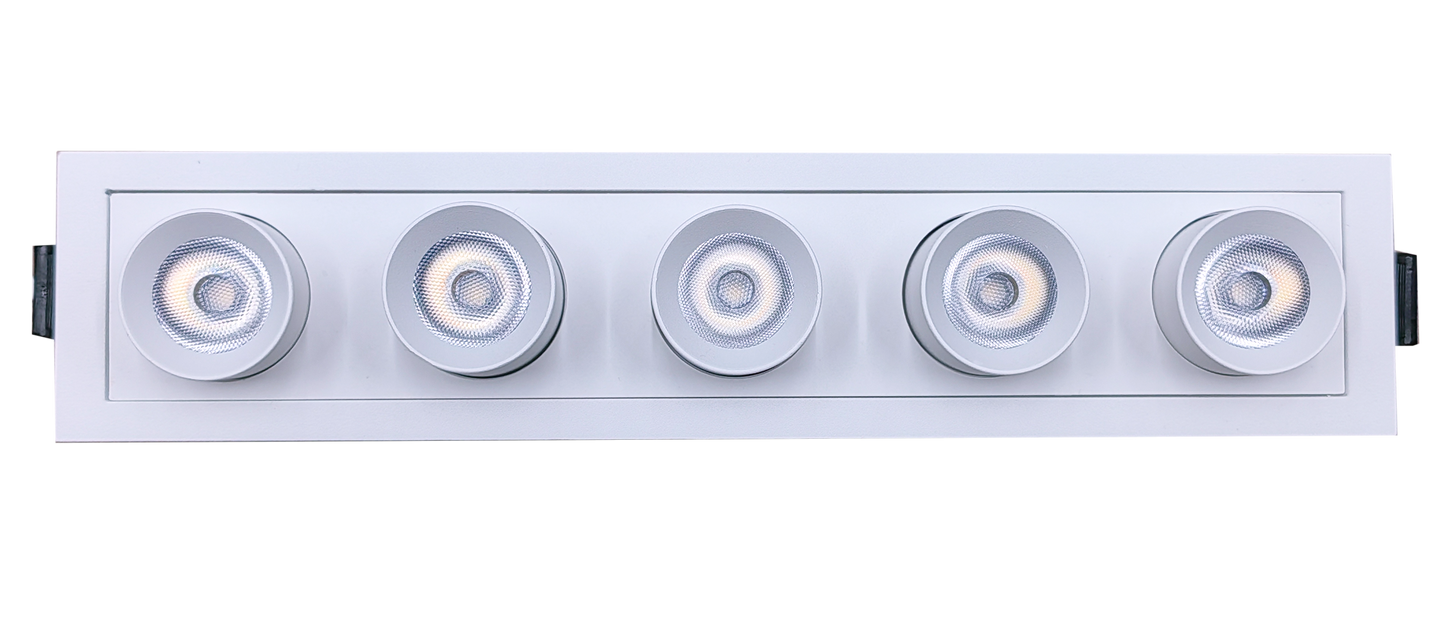

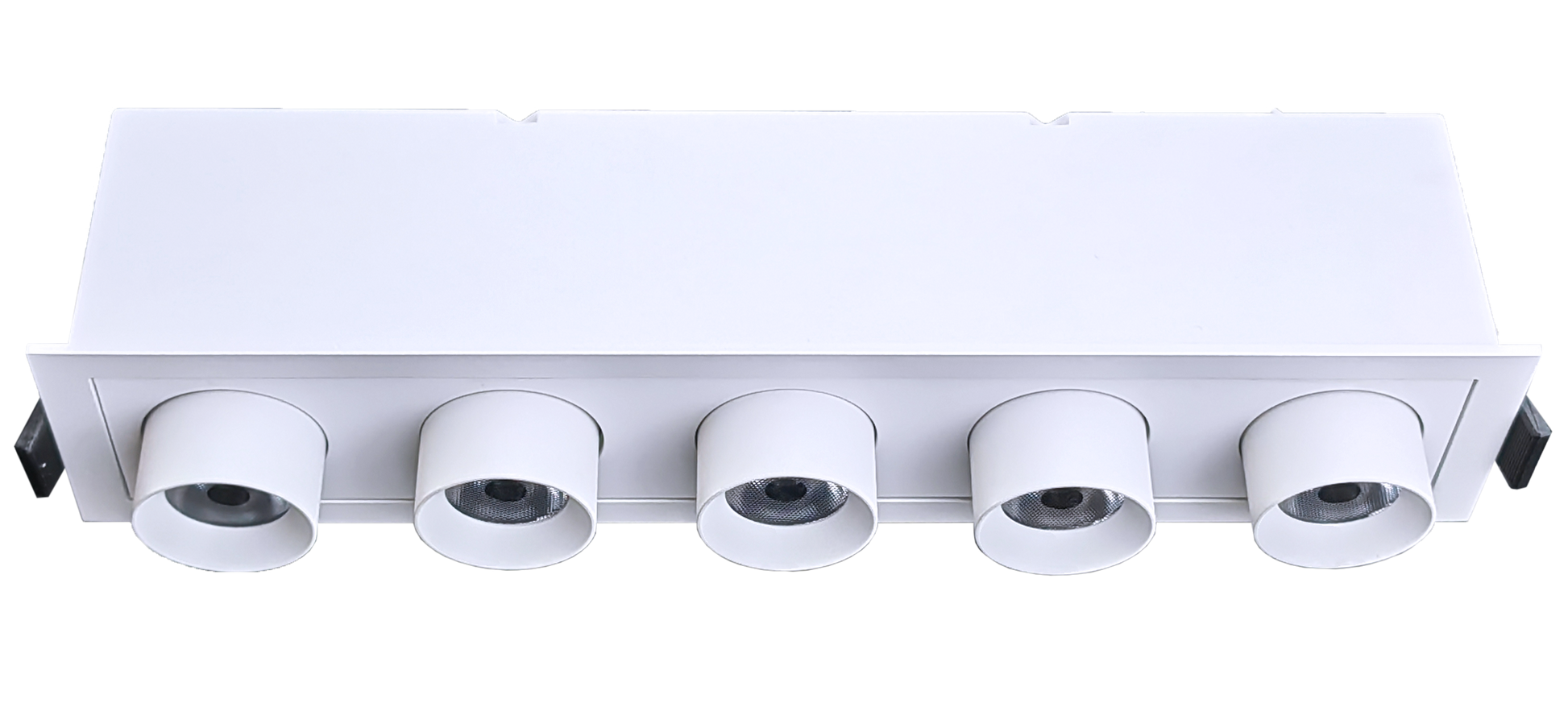

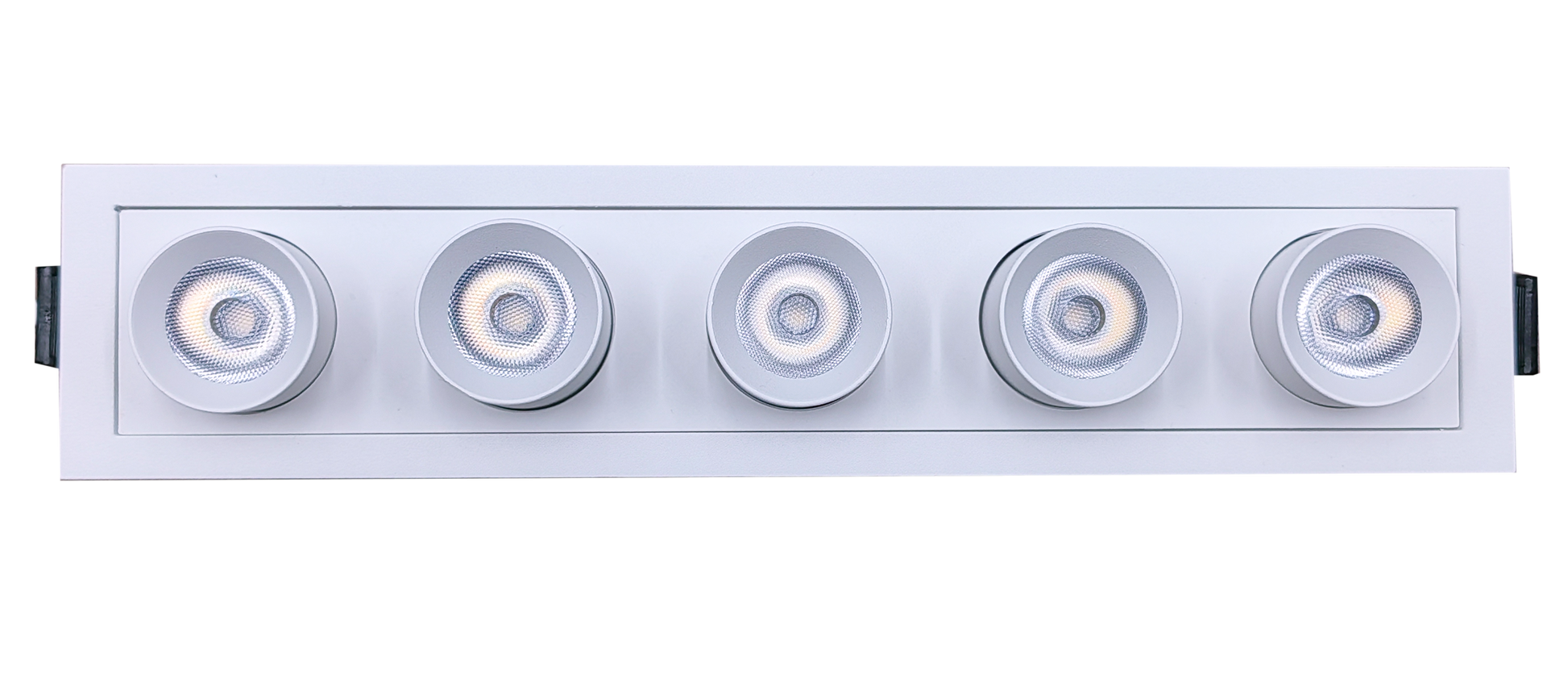

2" five head retractable white

2" Five Head Retractable White

27,30,35,41,50k
Dimmable
980 Lumens
15 Watts
120 V
View full details

Information

General Specs
Product Code
G-21055
Description
DP2/M5/15W/5CCT/WT
shape
Multiple
style
Trimmed
size
2 Inch
finish
White
diffuser
Clear
number of lights
5

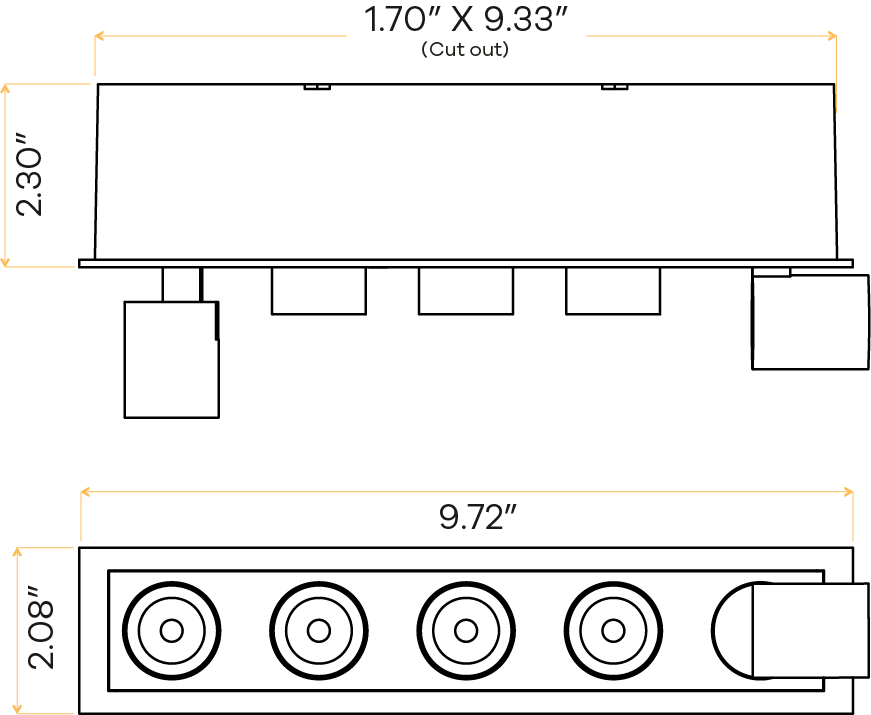

cutout
1.70” X 9.33”

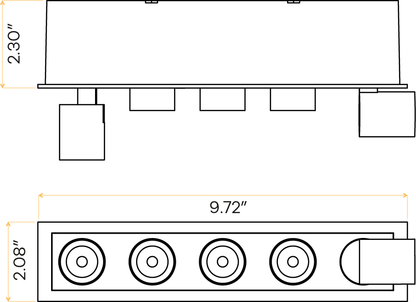

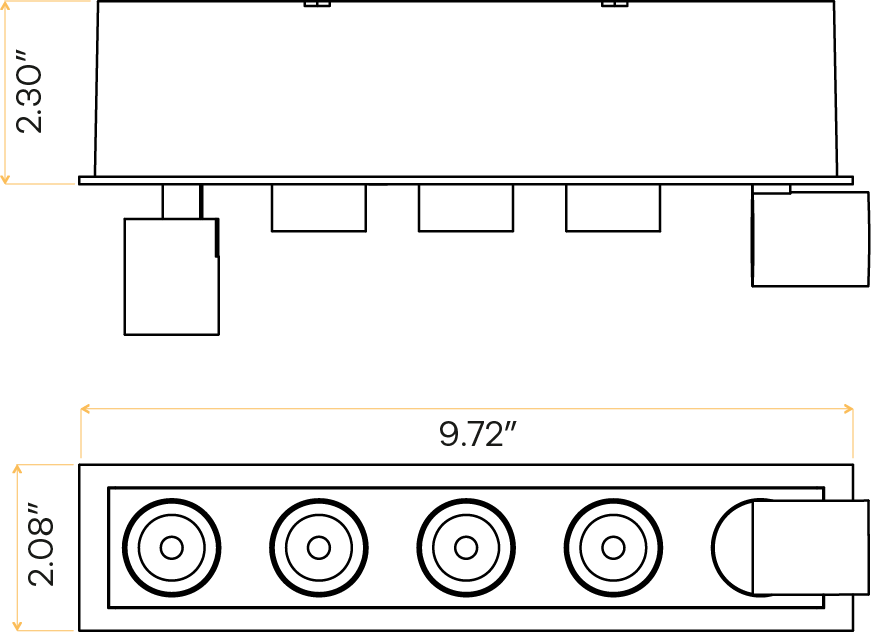

OD (Outside dimensions)
2.08" X 9.72"
height
2.20”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
742131210551
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
196
lumens
980
CRI
90>
beam spread deg
40°

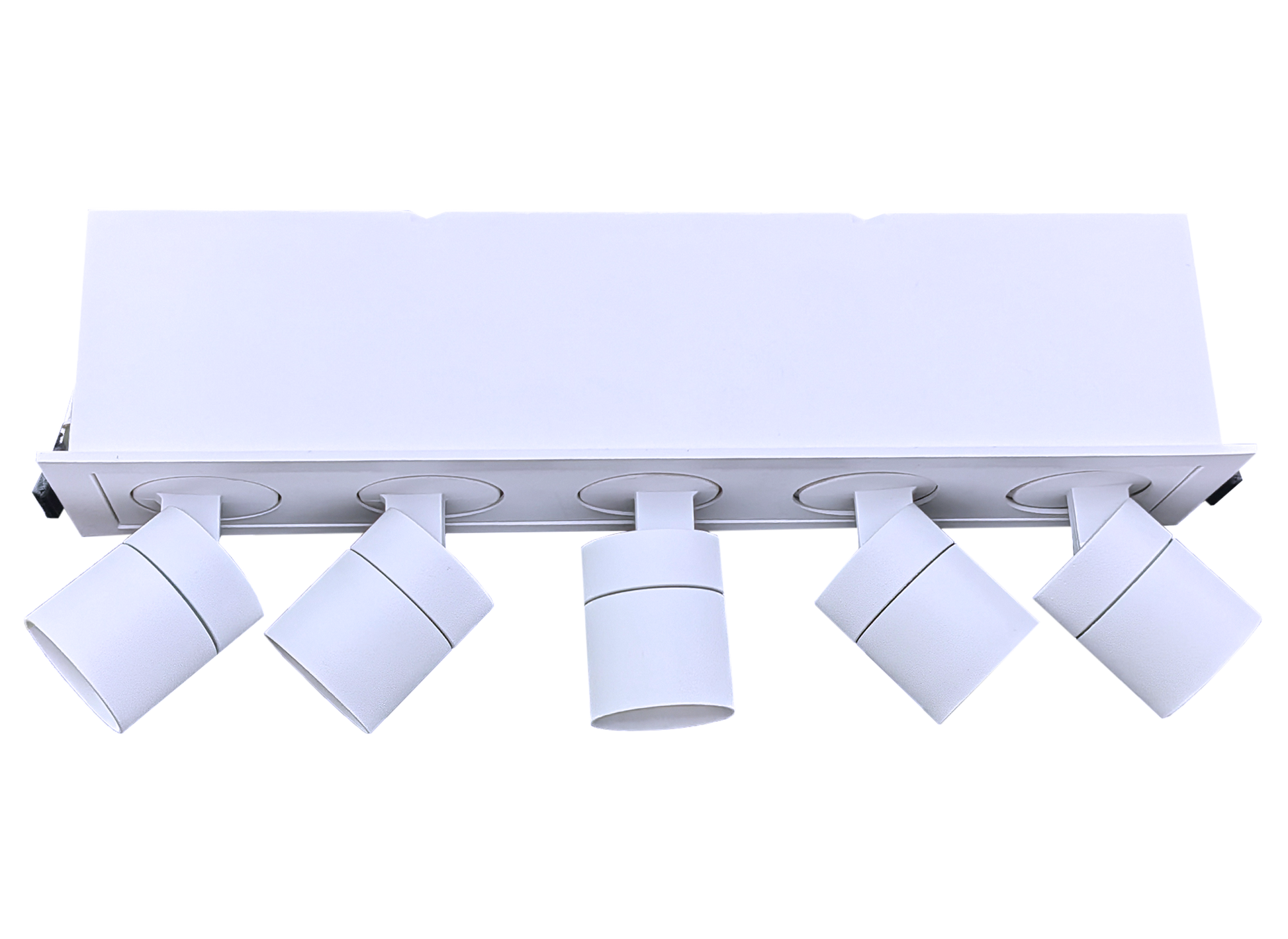

tilt angle
90°
rotating
360°
Electrical Specs
watt
15W
volts
120V
output current
420mA
plenum rated
FT6
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Damp
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New construction plate
G-21062 (3 Punchouts)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
