G-21190
Dipper

2" round fixed downlight black

2" Round Fixed Downlight Black

27,30,35,41,50k
Dimmable
200 Lumens
3 Watts
120 V
View full details

Information

General Specs
Product Code
G-21190
Description
DP/2/RD/FXD/3W/5CCT/BK
shape
Round
style
Trimmed
size
2 Inch
finish
Black
diffuser
Clear
number of lights
1

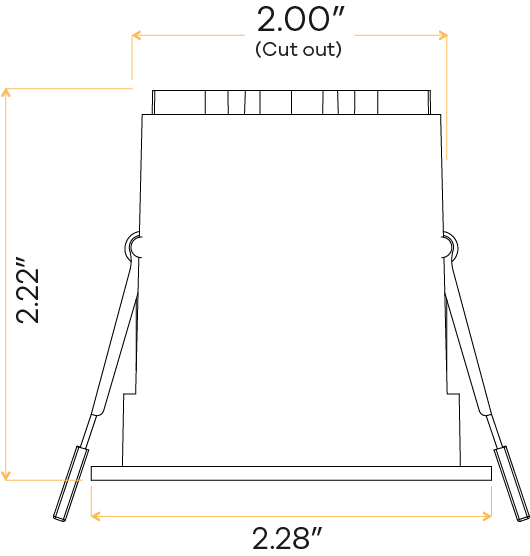

cutout
2.00”
OD (Outside dimensions)
2.28"
height
2.22”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379211902
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
200
CRI
90>
beam spread deg
40°
tilt angle
90°
rotating
360°
Electrical Specs
watt
3W
volts
120V
output current
420mA
plenum rated
FT6
dimming type
Triac
dimming range
100 - 5%
Compliance
location rating
Damp
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet

Accessories

New construction plate
G-98800 (2 Punchouts) G-98810 (2 Punchouts) G-19982 (0 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
