G-25260
Horizon

6" round flat gimbal

6" Round Flat Gimbal

27,30,35,41,50k
Dimmable
1800 Lumens
20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-25260
Description
R/6/FL/GBL/20W/5CCT
shape
Round
style
Trimmed
size
6 Inch
finish
White
diffuser
Frosted
number of lights
1

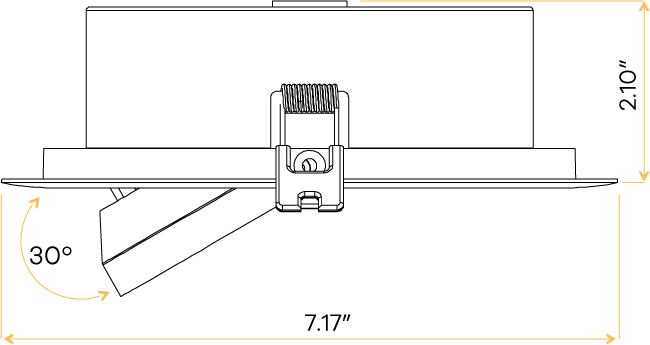

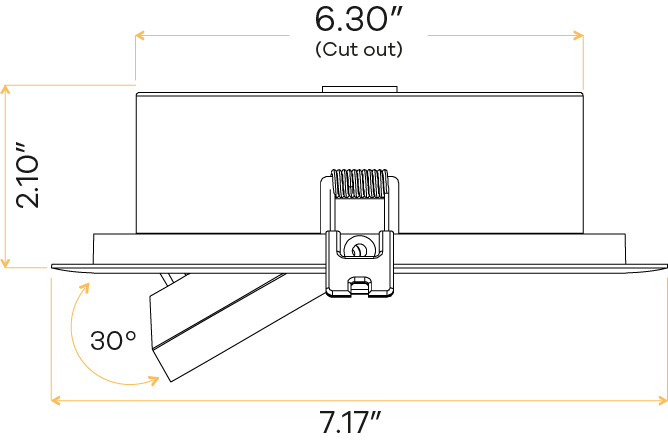

cutout
6.30"
OD (Outside dimensions)
7.17"
height
2.10"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379252608
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1800
CRI
>90
beam spread deg
100°
tilt angle
30°
rotating
360°
Electrical Specs
watt
20W
volts
120-277V
output current
480mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (9 Punchouts) G-98810 (9 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95826 20 Watt
