G-48210
Eclipse

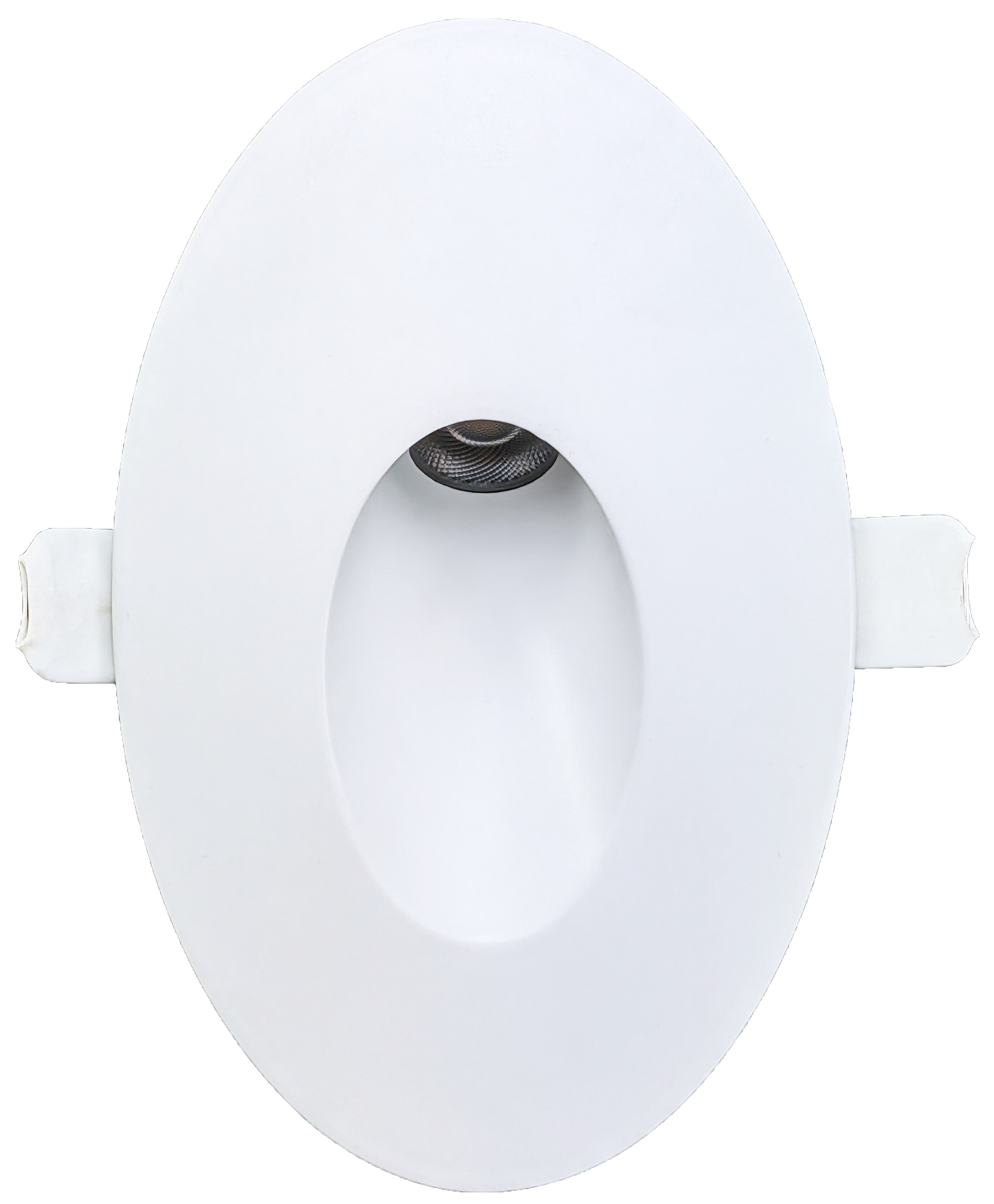

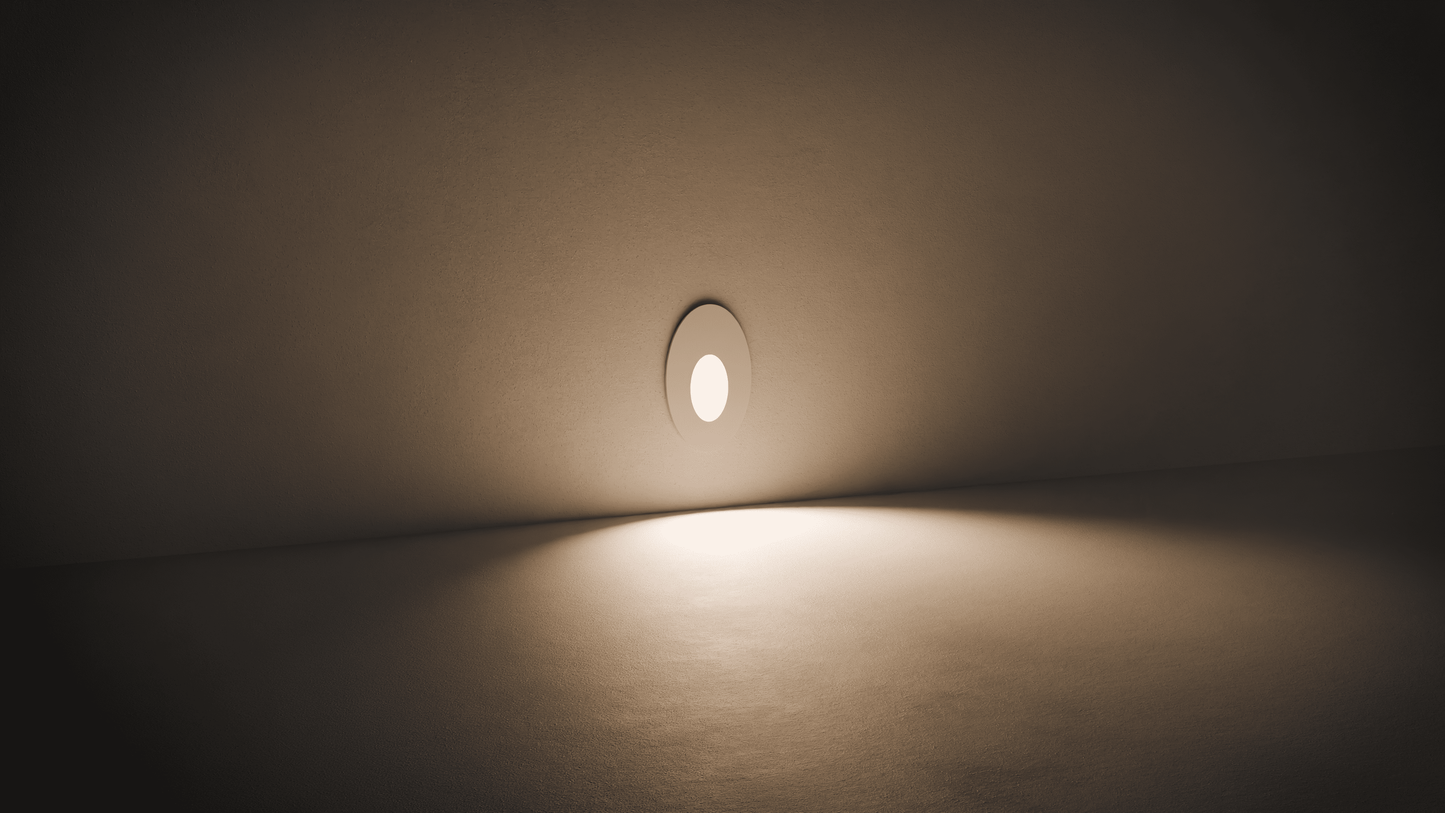

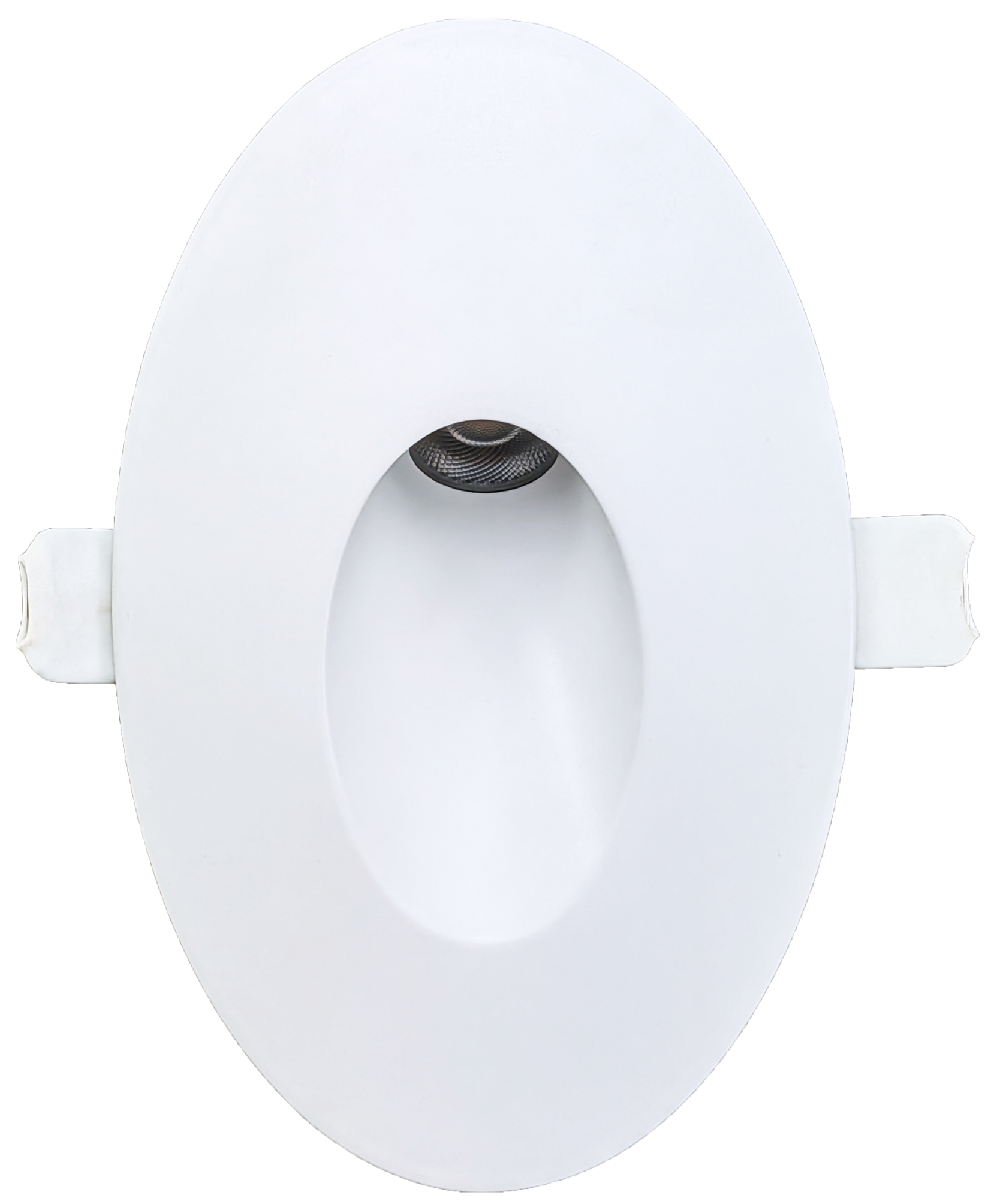

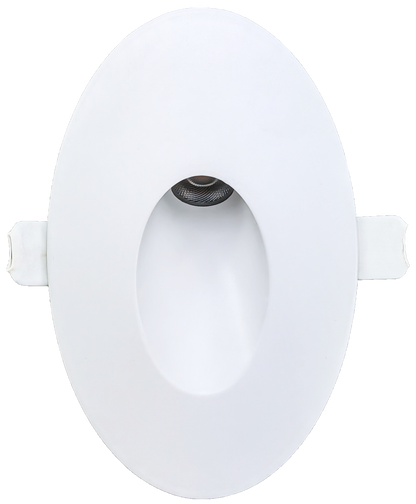

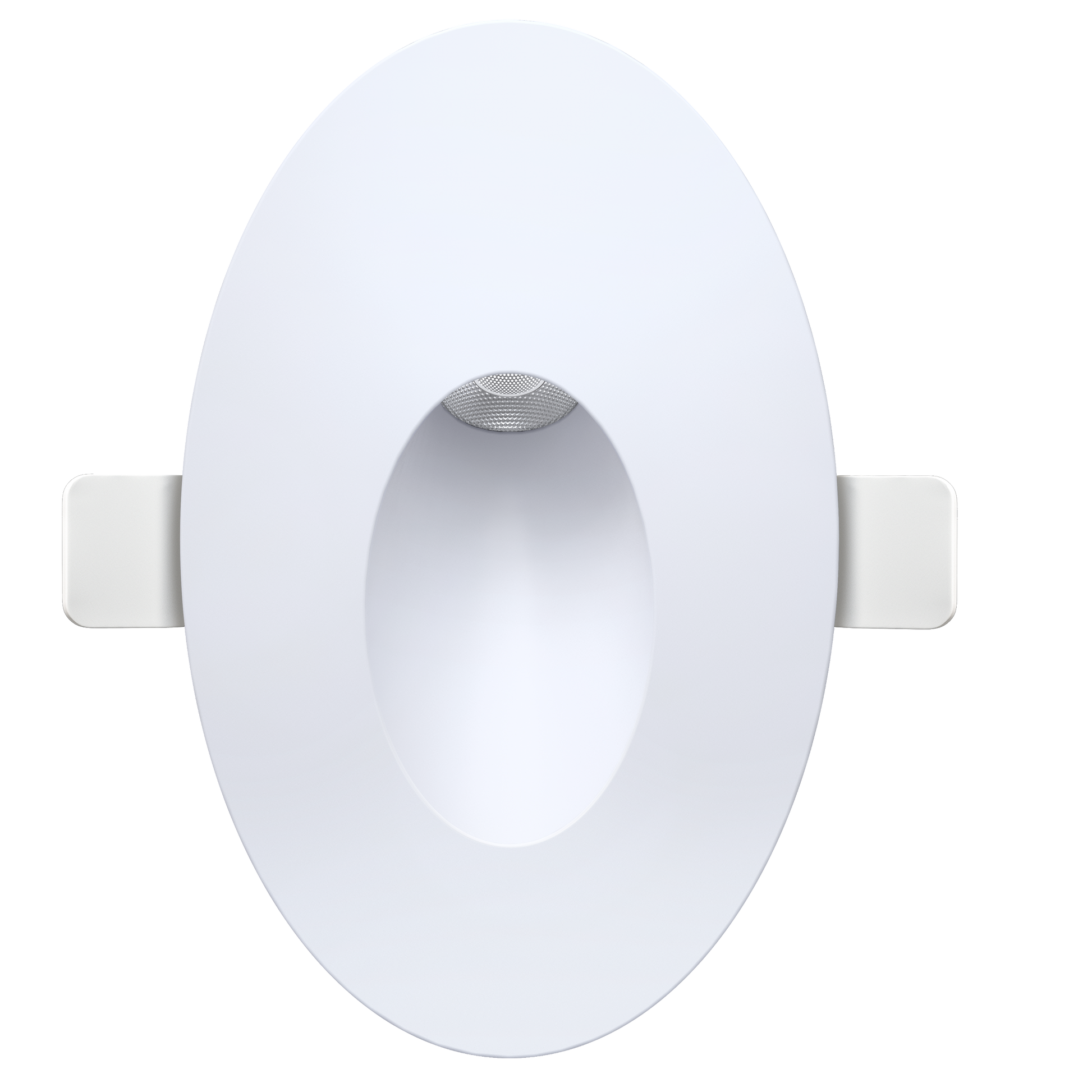

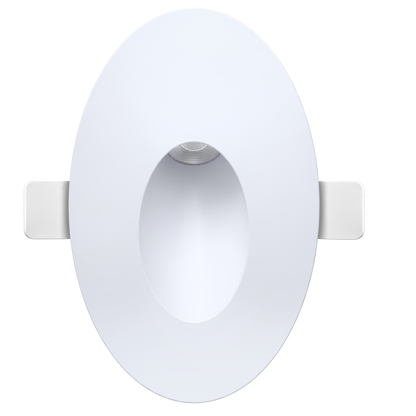

oval clip-in step light white

Oval Clip-In step light White

27,30,35,41,50k
Dimmable
350 Lumens
5 Watts
120 V
View full details

Information

General Specs
Product Code
G-48210
Description
ST/5W/OV/CLPLED/5CCT/WH
shape
Oval
style
Trimmed
finish
White

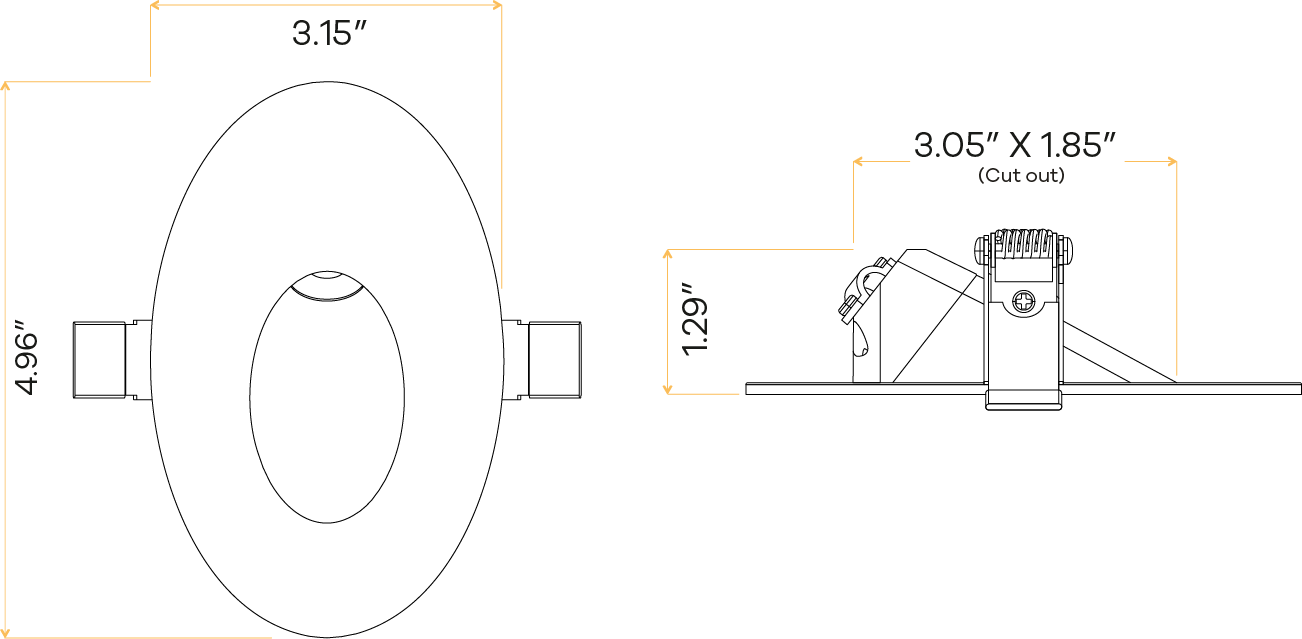

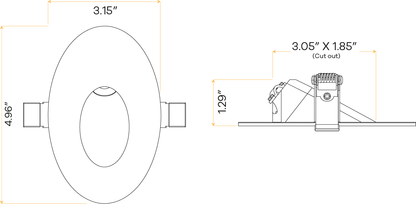

cutout
3.05" X 1.85"

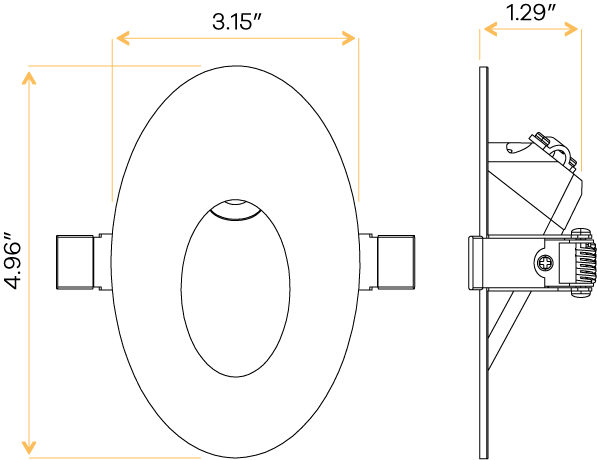

height
4.96"
width
3.15"
depth
1.29"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379482104
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
350
CRI
90
beam spread deg
36°
Electrical Specs
watt
5W
volts
120V
output current
110mA
plenum rated
FT6
dimming type
Triac
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New Construction Plate
G-98819 Vertical
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 5 Watt
