G-48220
Eclipse

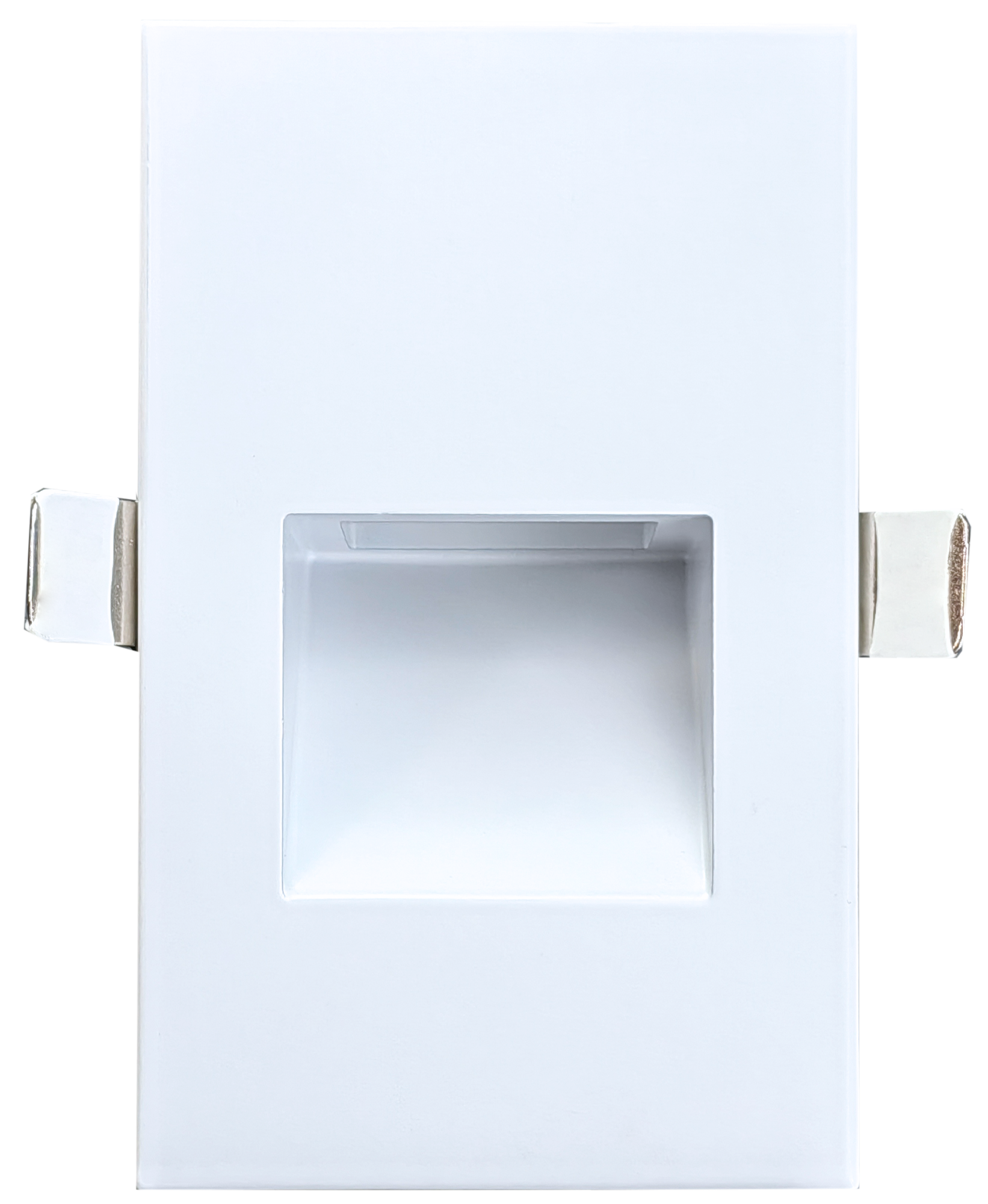

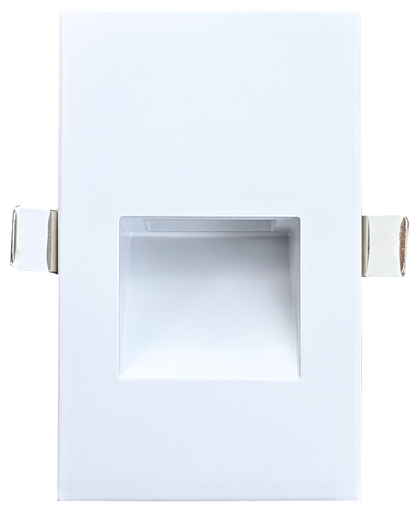

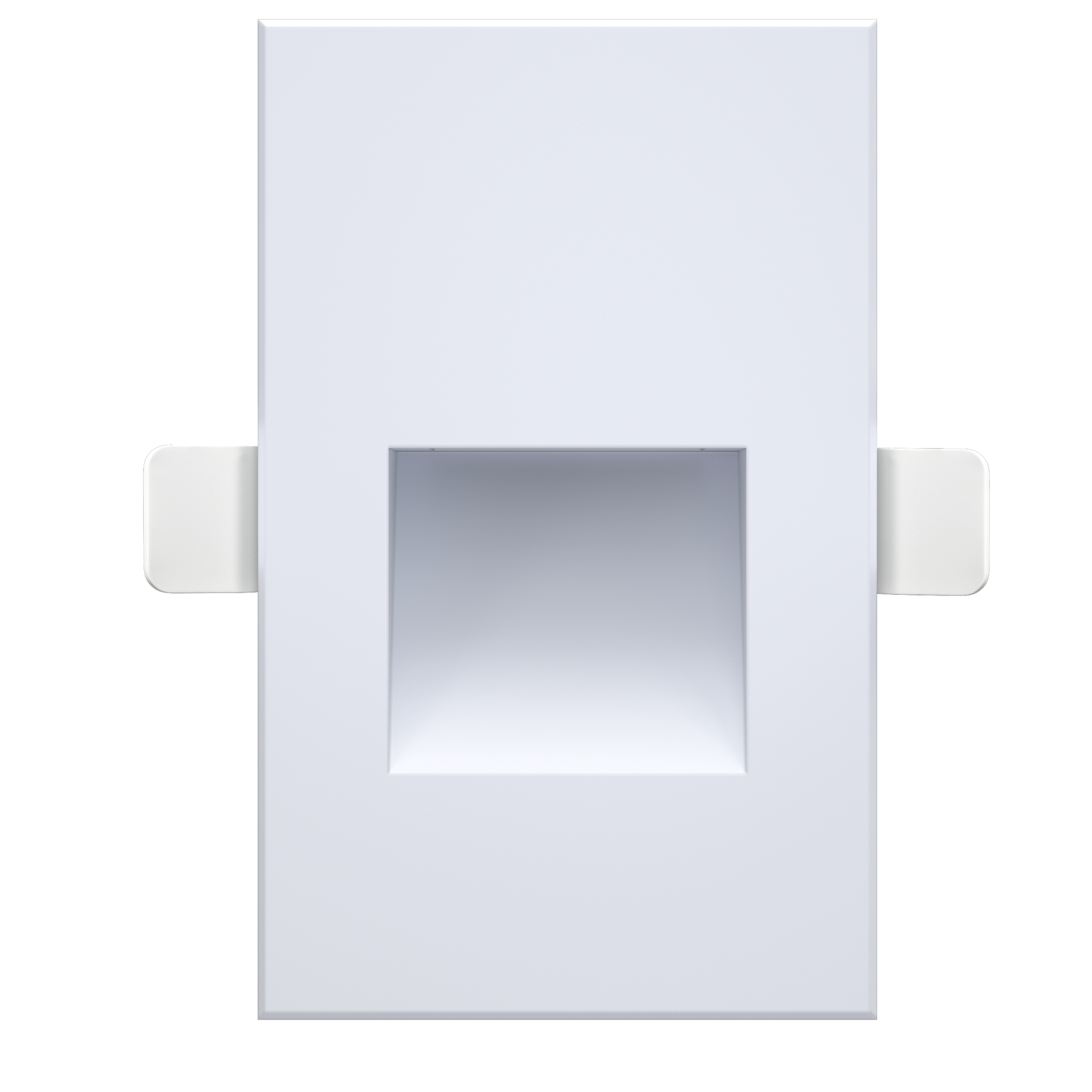

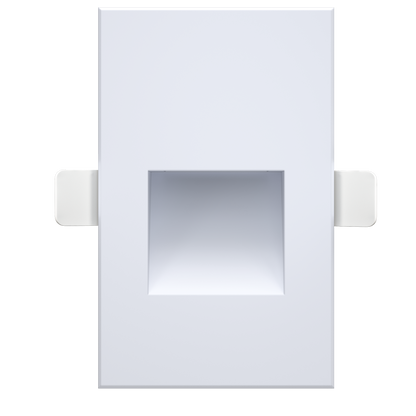

vertical clip-in step light white

Vertical Clip-In step light White

27,30,35,41,50k
Dimmable
200 Lumens
5 Watts
120 V
View full details

Information

General Specs
Product Code
G-48220
Description
ST/5W/V/CLP/LED/5CCTWH
shape
Vertical
style
Trimmed
finish
White
cutout

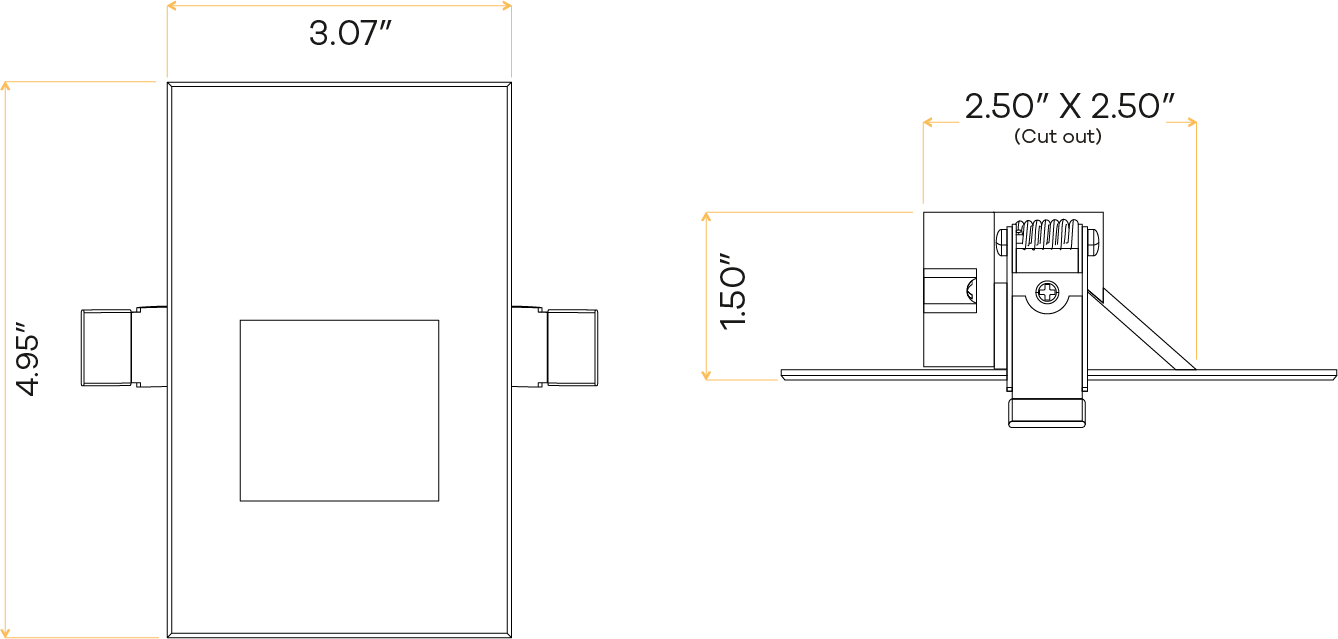

2.50" X 2.50"
height
4.95"
width
3.07"
depth
1.50"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379482203
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
200
CRI
90
beam spread deg
40°
Electrical Specs
watt
5W
volts
120V
output current
110mA
plenum rated
FT6
dimming type
Triac
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet Instruction Sheet IES

Accessories

New Construction Plate
G-98819
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95823 5 Watt
