G-96625
3″ square trimless flushed
3″ Square Trimless Flushed
Dimmable
750/1100 Lumens
10/15 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-96625
Description
SR3/15W/SQ/5CCT/TL
shape
Square
style
Trimless
size
3 Inch
finish
White
diffuser
Frosted
number of lights
1

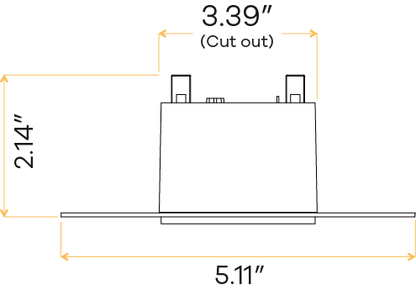

cutout
Sq 2.45” - Rd 3.39”
OD (Outside dimensions)
5.11"
height
2.14"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431966254
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
750/1100
CRI
>90
beam spread deg
100°
Electrical Specs
watt
10/15W
volts
120-277V
output current
230mA / 355mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed
IES
