G-96626
4″ square trimless flushed
4″ Square Trimless Flushed
Dimmable
1400/1700 Lumens
15/20 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-96626
Description
SR4/20W/SQ/5CCT/TL
Shape
Square
Style
Trimless
Size
4 Inch
Finish
White
Diffuser
Frosted
Number of Lights
1

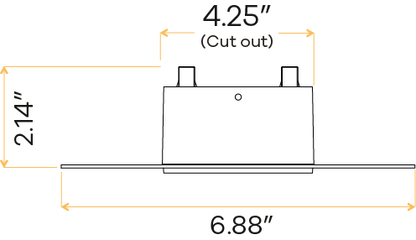

Cutout
Sq 2.95” - Rd 4.40”
OD (Outside dimensions)
6.88"
Height
2.14"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
024431966261
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
1400/1700
CRI
>90
Beam Spread Deg
100°
Electrical Specs
Watt
15/20W
Volts
120-277V
Output Current
355mA / 515mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet Location
Warranty
3 Years
IC Rated
Yes
Classification
ETL, Title24 Listed
IES
