G-96622
Star

4″ round trimless flushed

4″ Round Trimless Flushed

27,30,35,41,50k
Dimmable
1400/1700 Lumens
15/20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-96622
Description
SR4/20W/R/5CCT/TL
shape
Round
style
Trimless
size
4 Inch
finish
White
diffuser
Frosted
number of lights
1

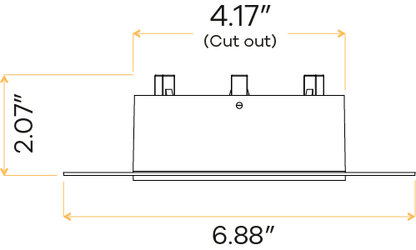

cutout
4.17"
OD (Outside dimensions)
6.88"
height
2.07"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431966223
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400/1700
CRI
>90
beam spread deg
100°
Electrical Specs
watt
15/20W
volts
120-277V
output current
355mA / 515mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet Location
warranty
3 Years
IC Rated
Only at 15W
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-98800 (6 Punchouts) G-98810 (6 Punchouts) G-19982 (4 Punchouts)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt G-95826 20 Watt
