G-96620
2″ round trimless flushed
2″ Round Trimless Flushed
Dimmable
550/825 Lumens
8/12 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-96620
Description
SR2/WS2/R/5CCT/TL
Shape
Round
Style
Trimless
Size
2 Inch
Finish
White
Diffuser
Frosted
Number of Lights
1

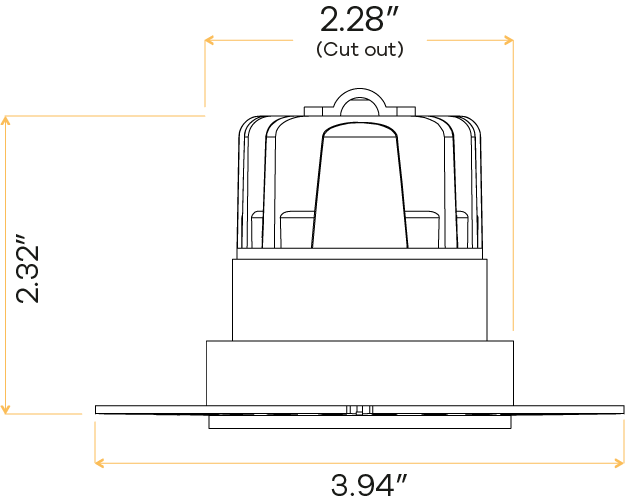

Cutout
2.28"

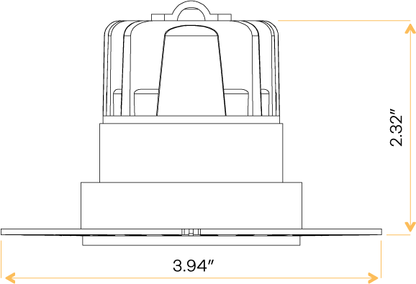

OD (Outside dimensions)
3.94"
Height
2.32"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
990379966208
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
550/825
CRI
>90
Beam Spread Deg
120°
Electrical Specs
Watt
8/12W
Volts
120-277V
Output Current
180mA/275mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet Location
Warranty
3 Years
IC Rated
Yes
Classification
ETL, Title24 Listed
IES
