G-98226
G-98226
2x2 focused troffer

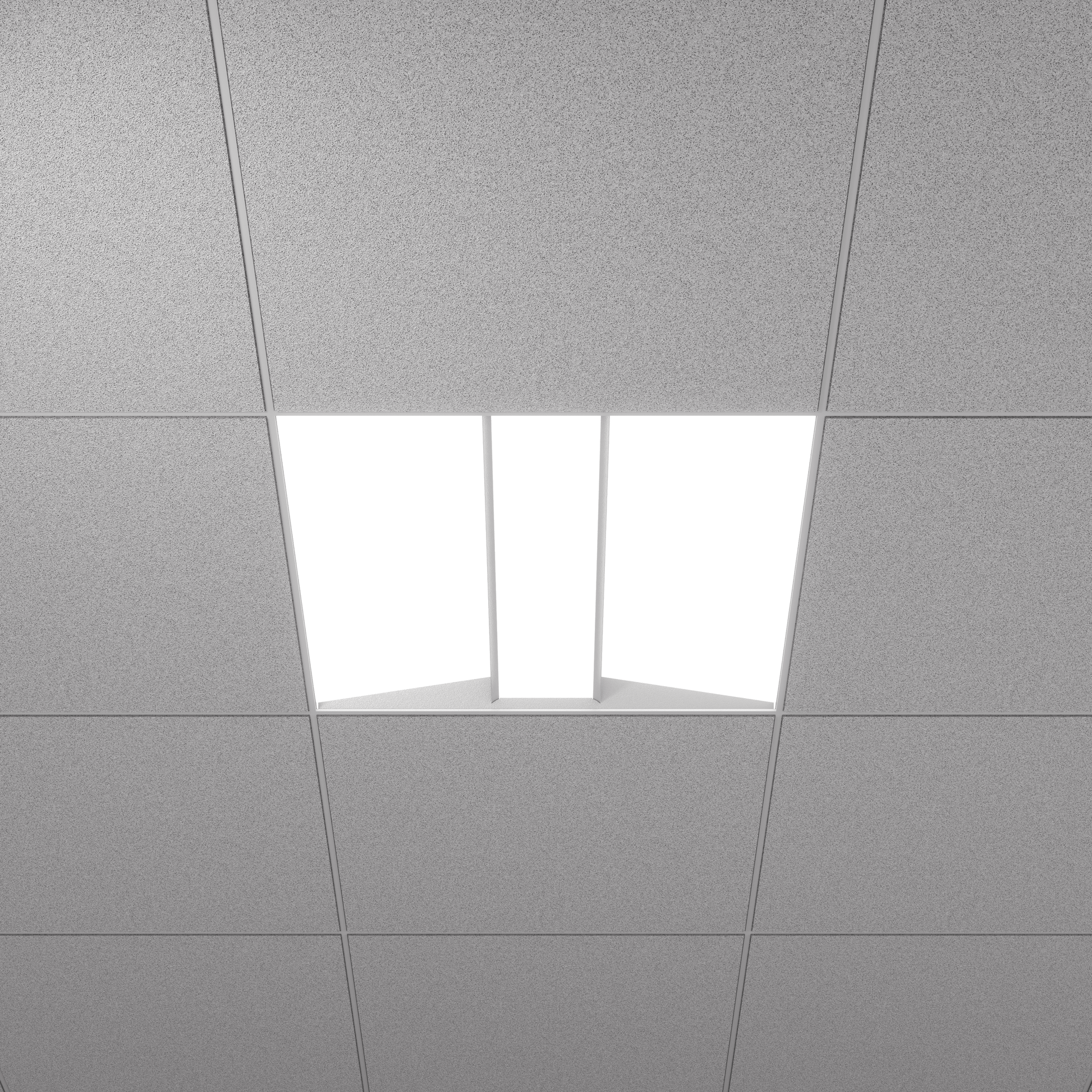

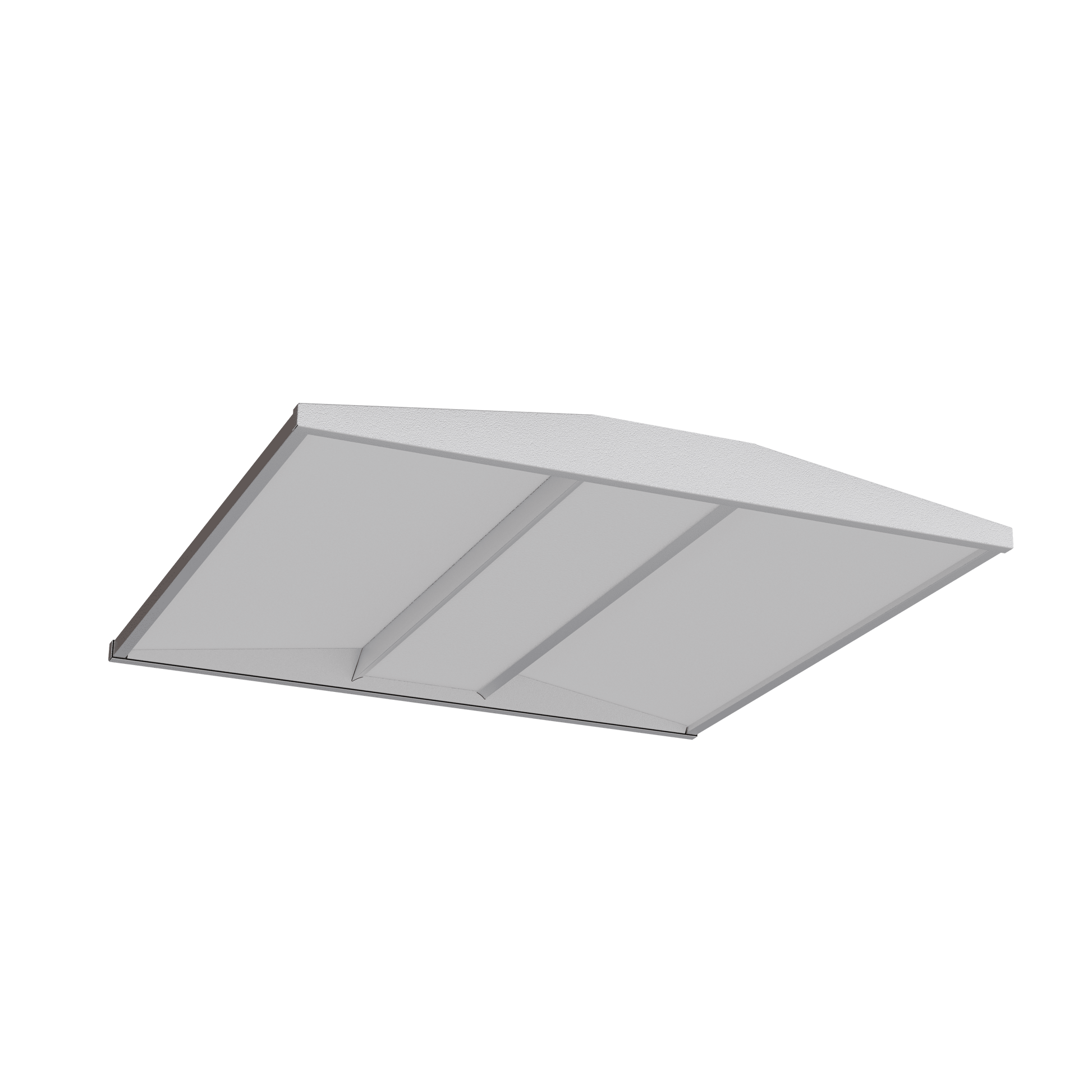

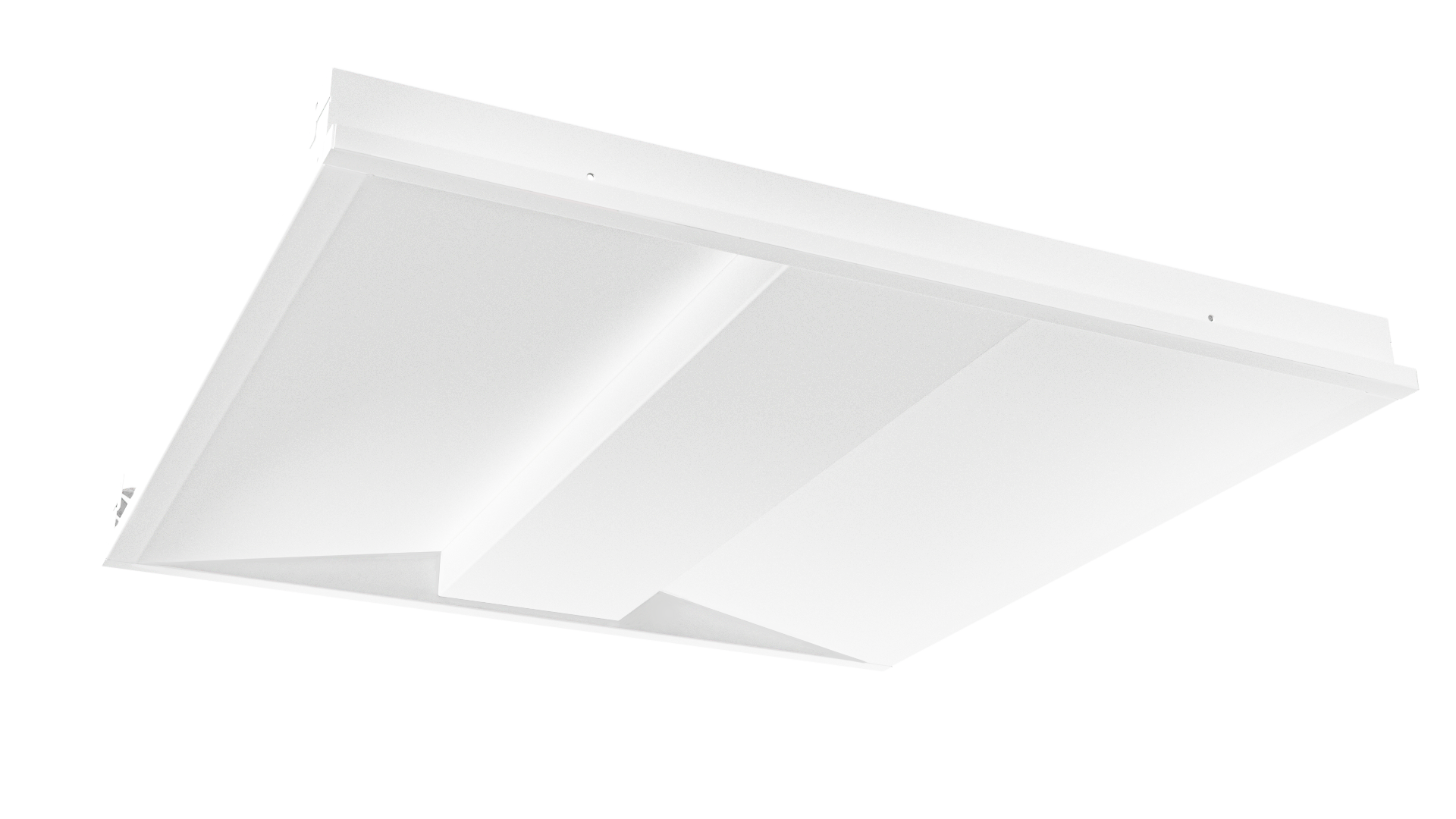

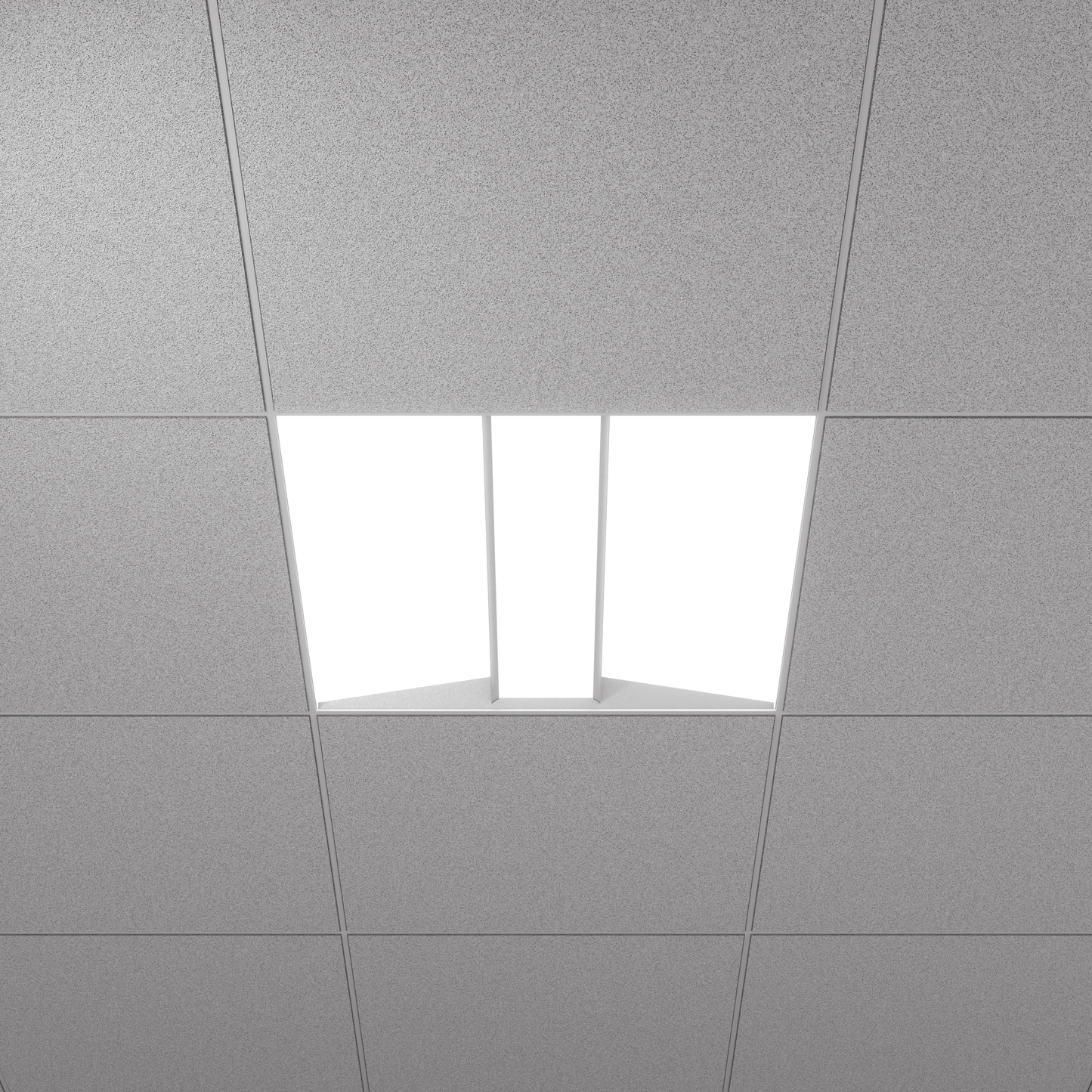

2X2 Focused Troffer
Dimmable
3275/4275/5300 Lumens
30/40/50 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-98226
Description
F/2X2/50W/FT/WS3/5CCT
size
2X2
diffuser
Frosted
number of lights
1

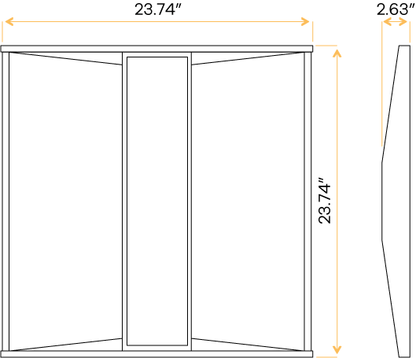

height
2.63"
mounting
Lay In
Packaging Information
master pack
2
Barcode
990379982260
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
3275/4275/5300
CRI
80
UGR
14
beam spread deg
120°
Electrical Specs
watt
30/40/50W
volts
120-277V
dimming type
0-10V Dimming
Compliance
location rating
Wet
warranty
5 Years
classification
DLC, ETL Listed
Downloads
IES
