G-98723
Pura

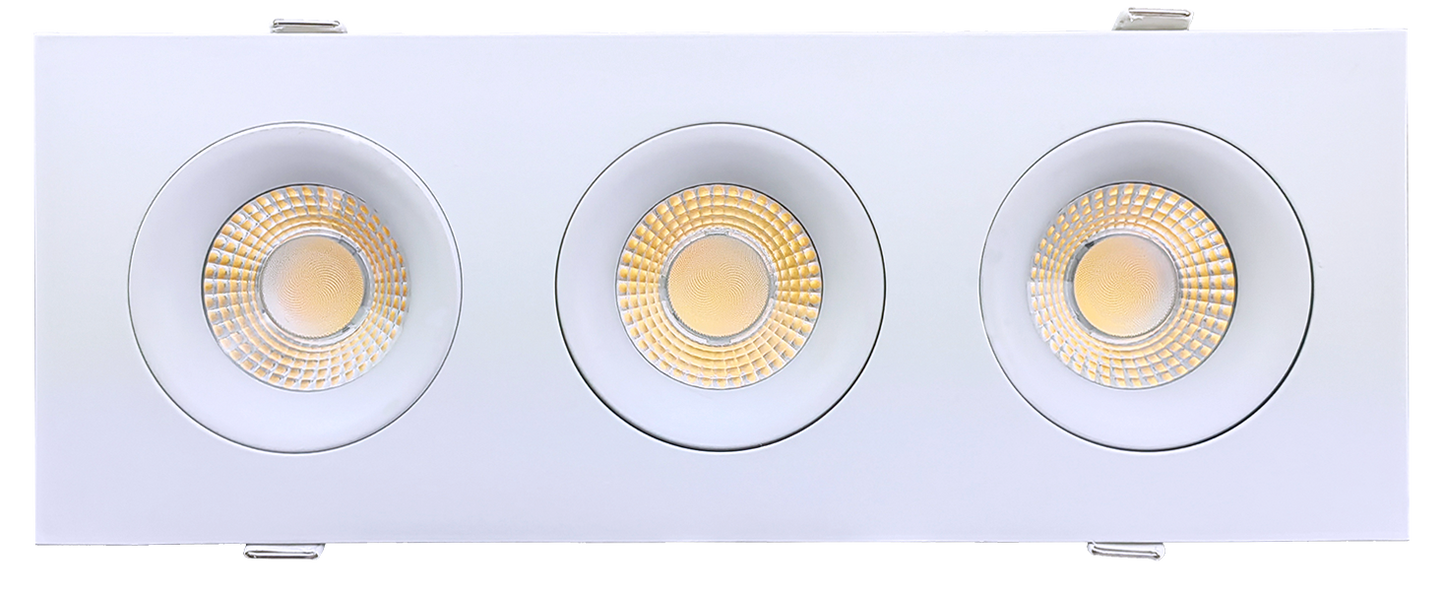

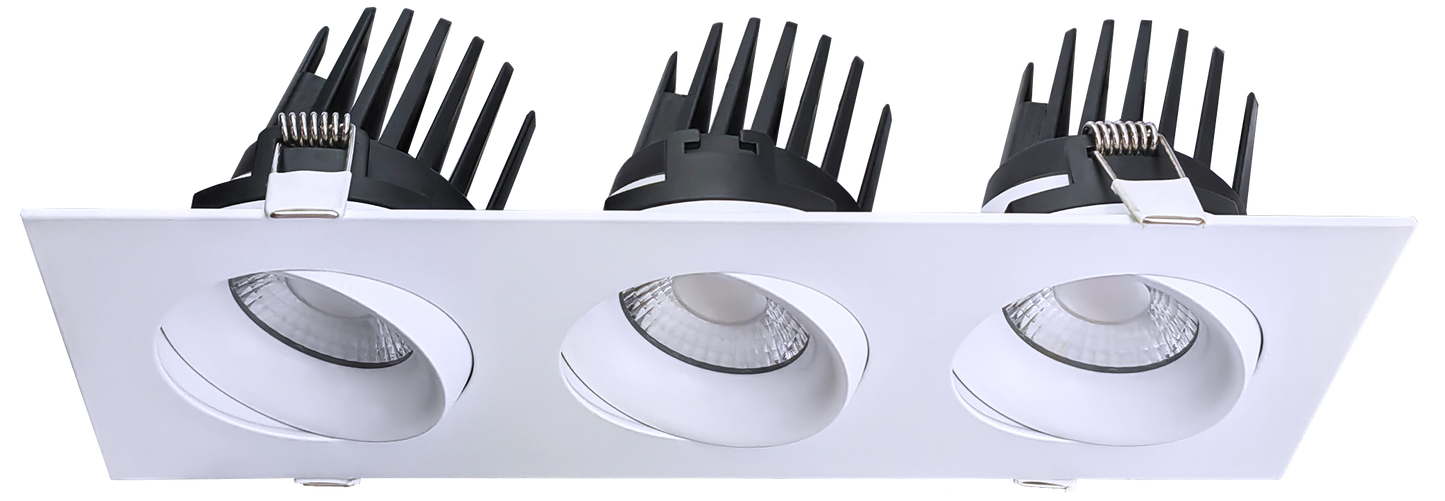

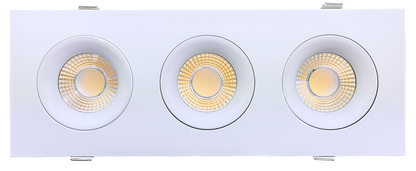

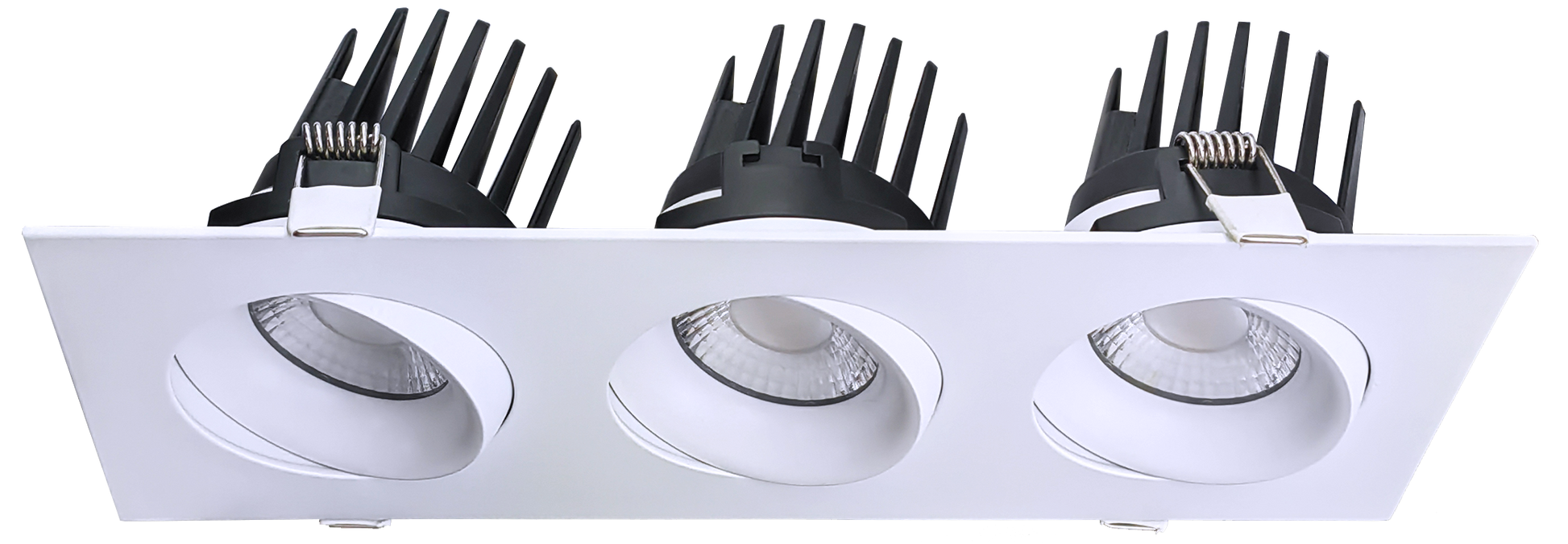

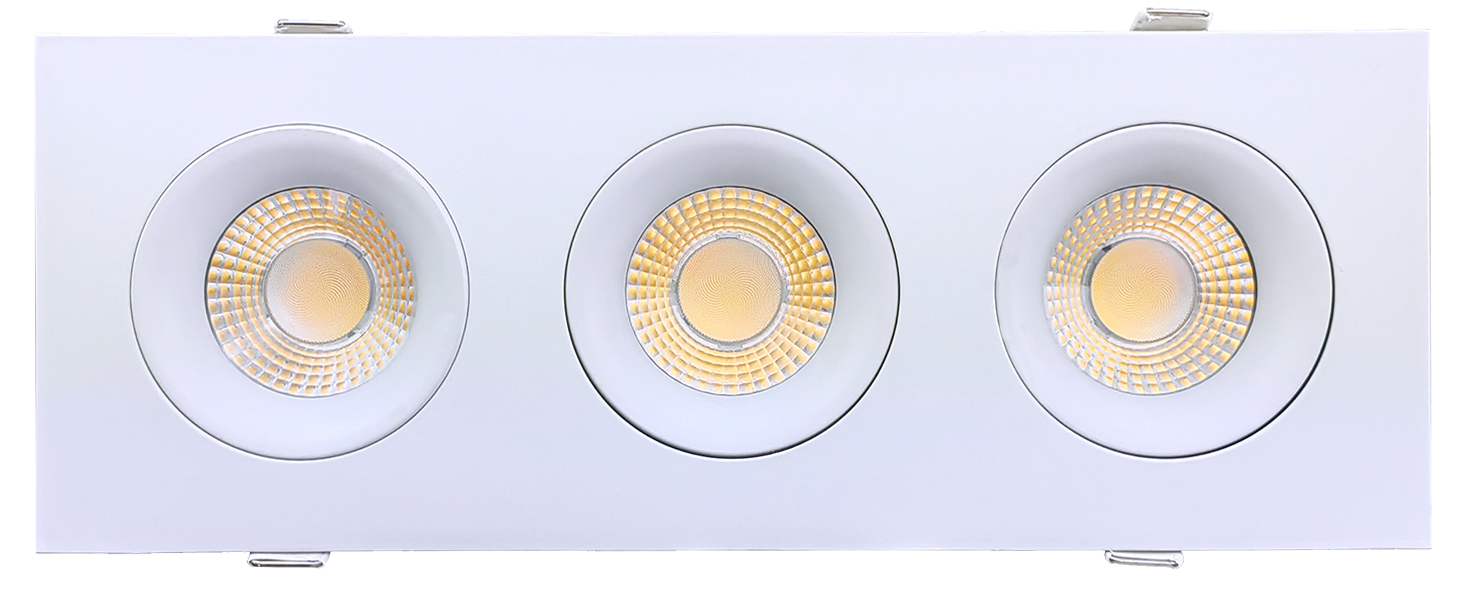

3.5” triple head multiple gimbal white

3.5” Triple Head Multiple Gimbal White

27,30,35,41,50k
Dimmable
5250/3750 Lumens
60/39 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98723
Description
PR/3.5/60W/GR/M3/5CCT/WH
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear (Default)
number of lights
3

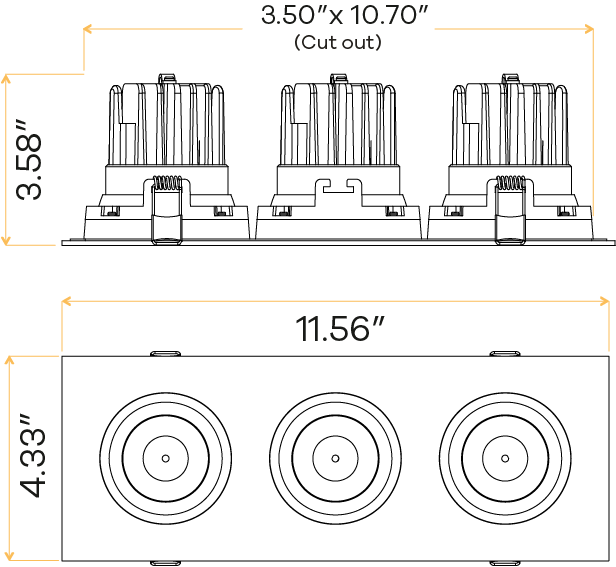

cutout
3.50” x 10.70”

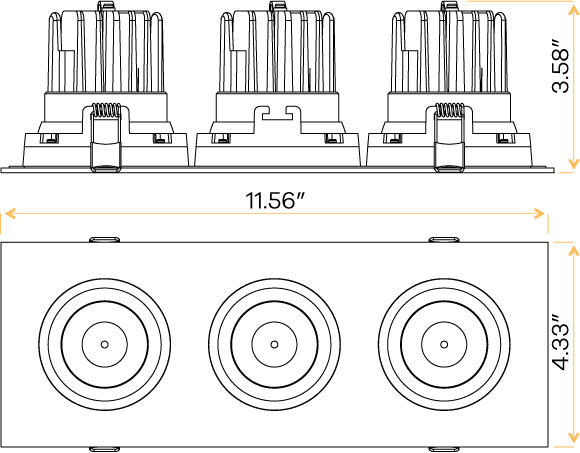

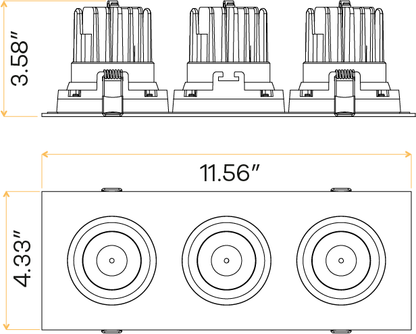

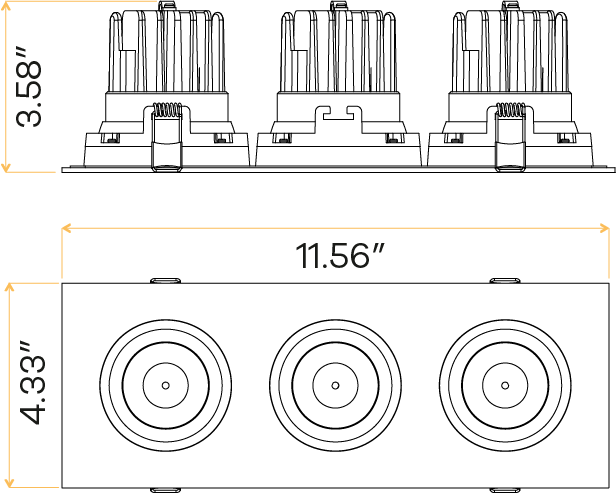

OD (Outside dimensions)
4.34" x 11.57"
height
3.78”
mounting
Clip-in
Packaging Information
master pack
6
Barcode
024431987235
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1250/1750
lumens
5250/3750
CRI
90>
beam spread deg
40° (Default)
tilt angle
20°
Electrical Specs
watt
60/39W
volts
120-277V
output current
1380/940mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Only at 39W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New Construction Plate
G-98822 (2 Punchouts)
Clear Lens Options
G-98825 24° Lens G-98826 40° Lens G-98826 60° Lens
Reflector Lens Options
G-98828 30° Lens G-98829 40° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W) G-95521 (60W)
