Pura

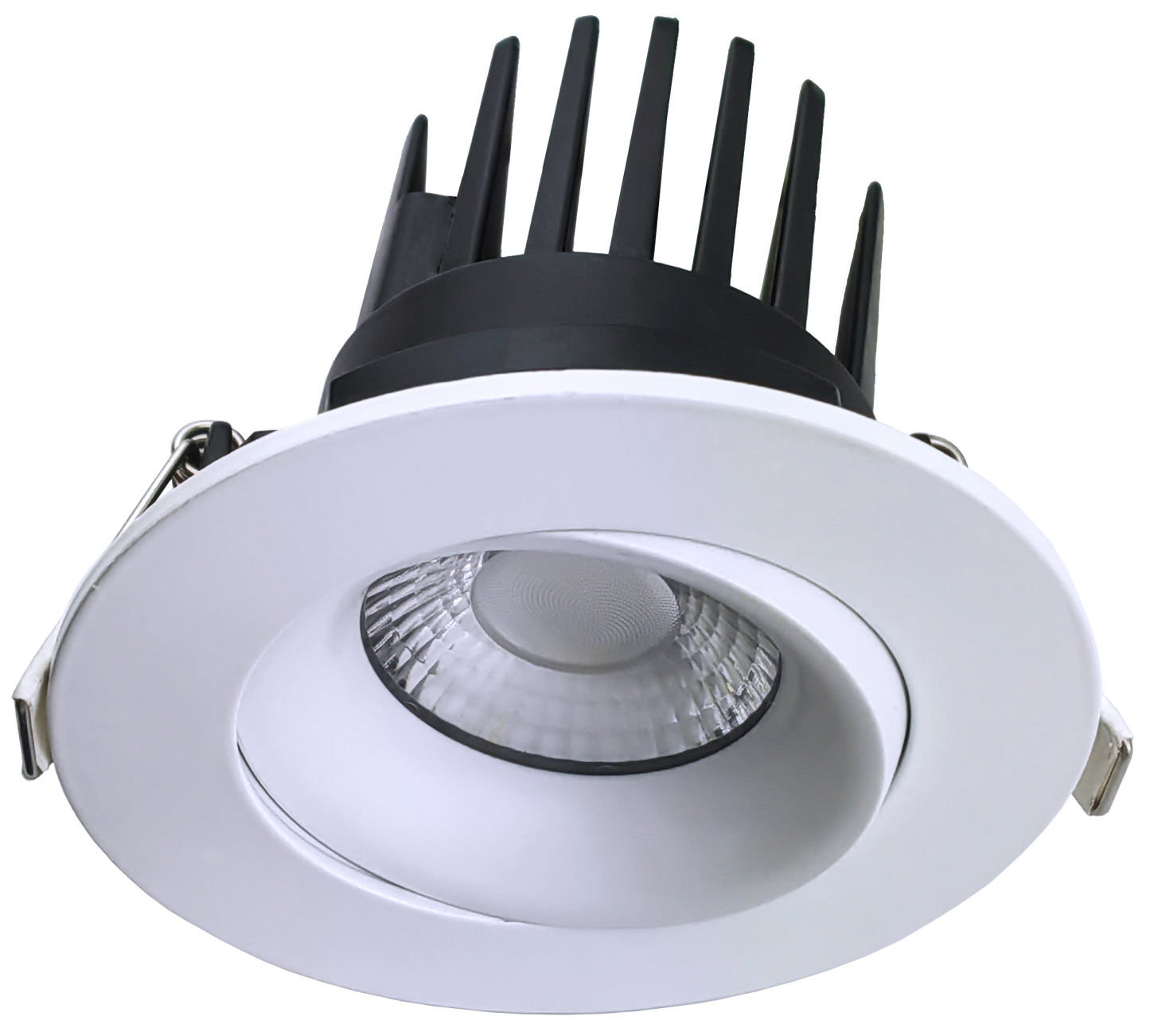

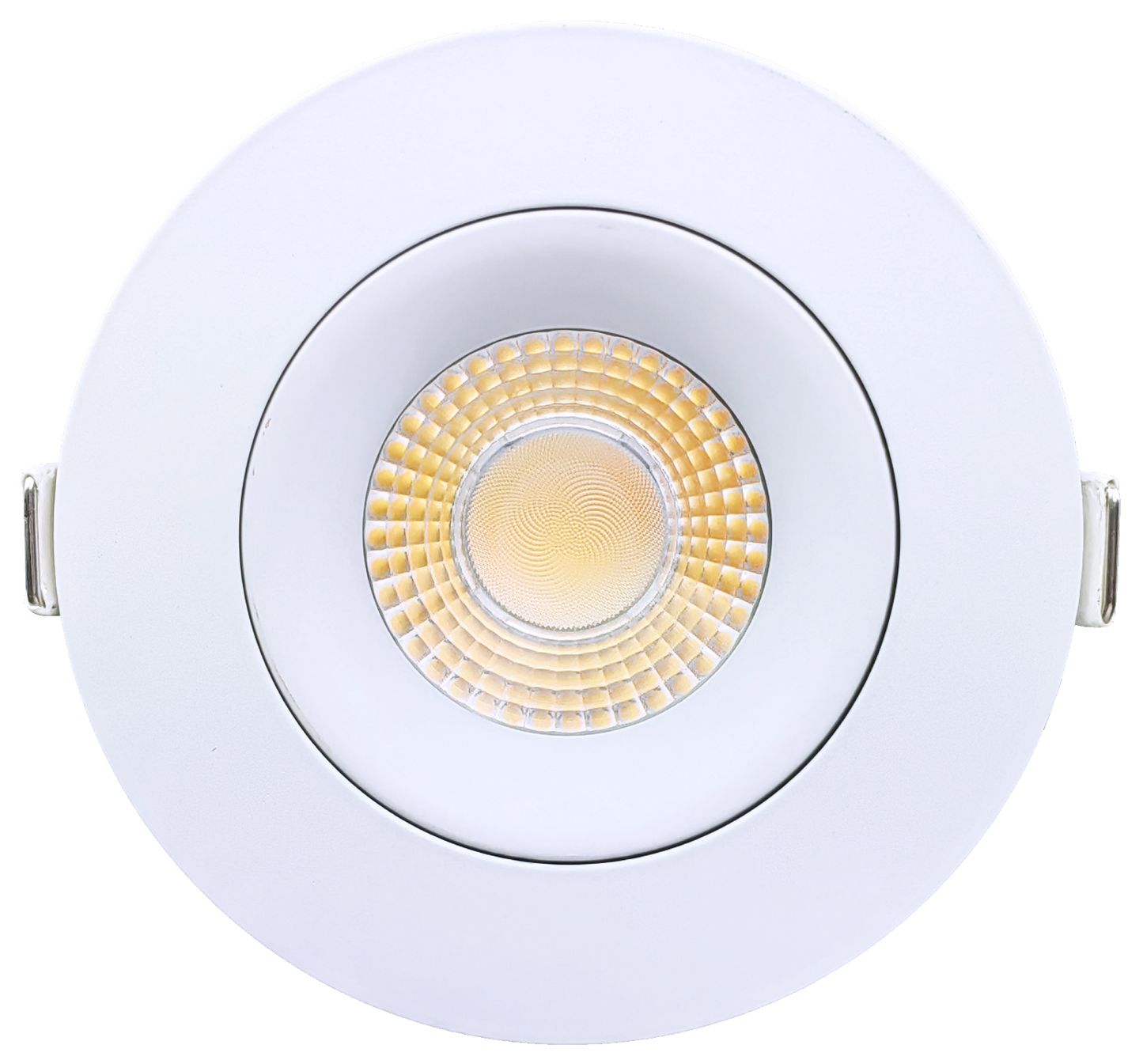

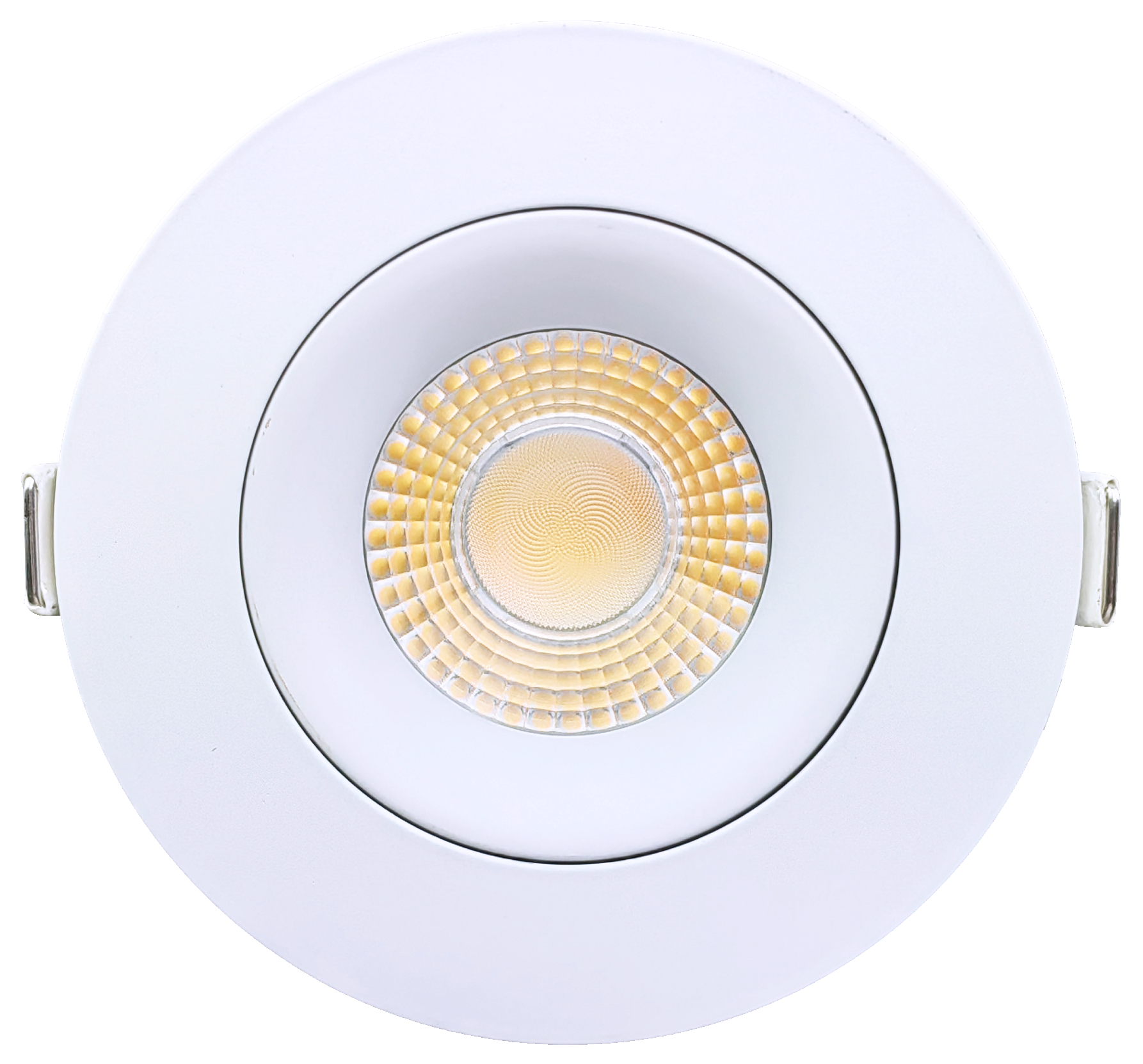

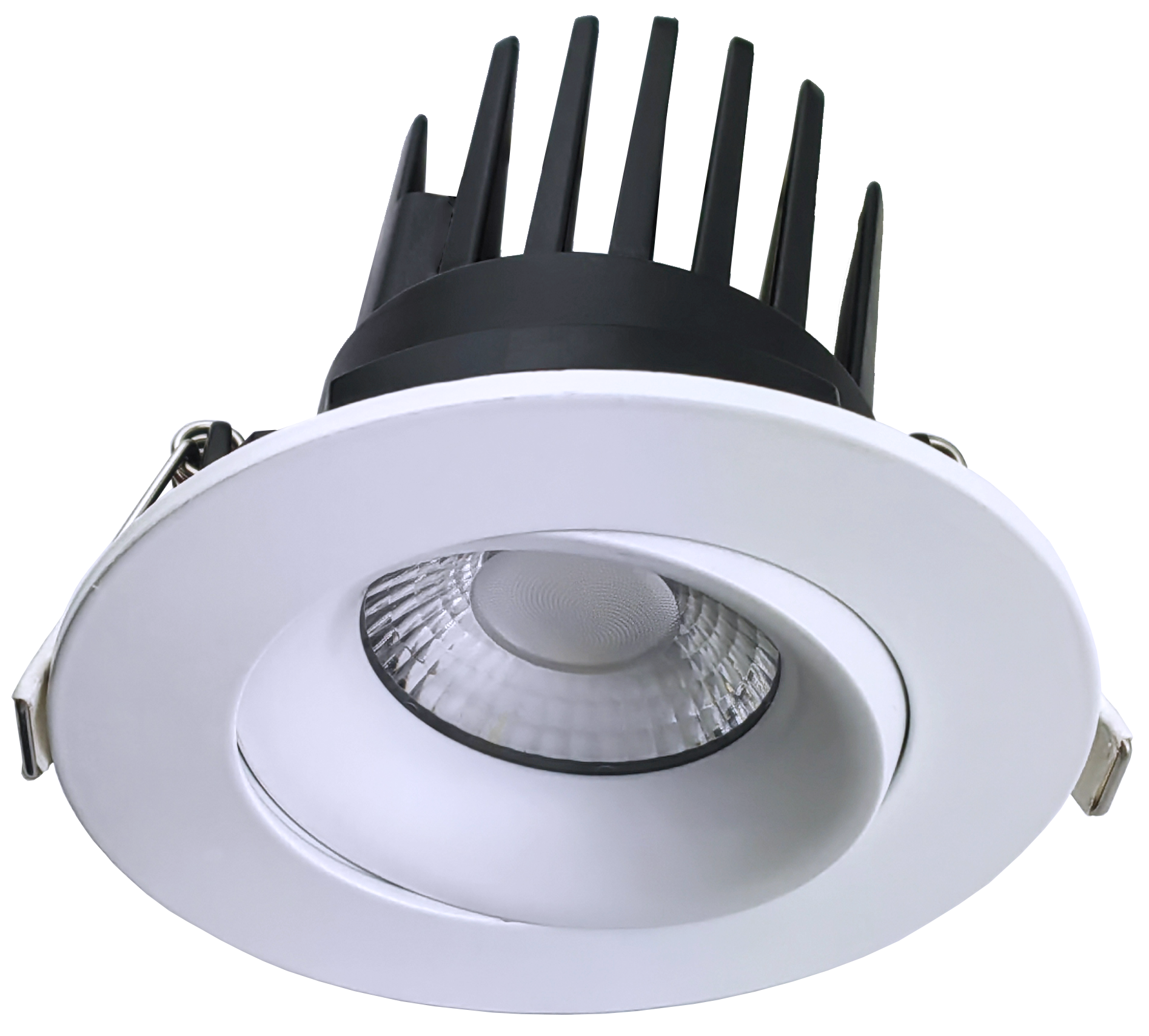

3.5" round gimbal white

3.5" Round Gimbal White

27,30,35,41,50k
Dimmable
1400/1850 Lumens
20/14 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-98720
Description
PR/3.5/19W/GR/5CCT/WH
shape
Round
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear (Default)
number of lights
1

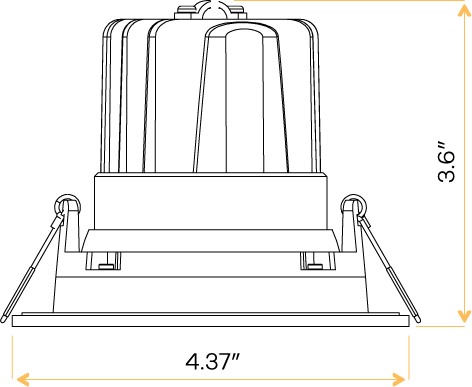

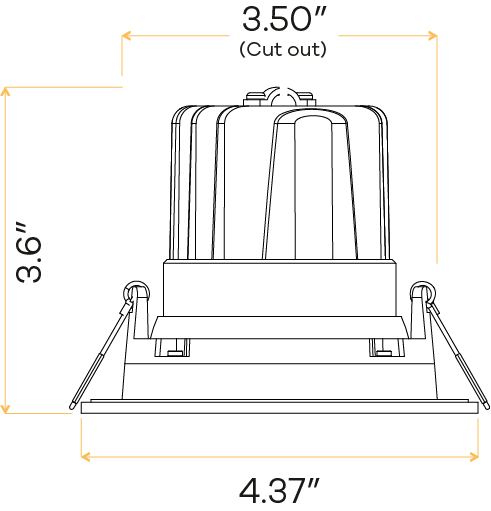

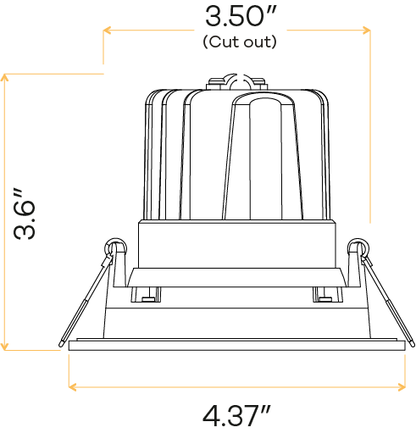

cutout
3.50”
OD (Outside dimensions)
4.40"
height
3.78”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024431987204
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1400/1850
CRI
90>
beam spread deg
40° (Default)
tilt angle
20°
Electrical Specs
watt
20/14W
volts
120-277V
output current
480/320mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Only at 14W
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New construction plate
G-98800 (5 Punchouts) G-98810 (5 Punchouts) G-19982 (3 Punchouts)
Clear Lens Options
G-98825 24° Lens G-98826 40° Lens G-98826 60° Lens
Reflector Lens Options
G-98828 30° Lens G-98829 40° Lens
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95825 14 Watt G-95826 20 Watt
