G-98727
3.5” double head multiple gimbal black

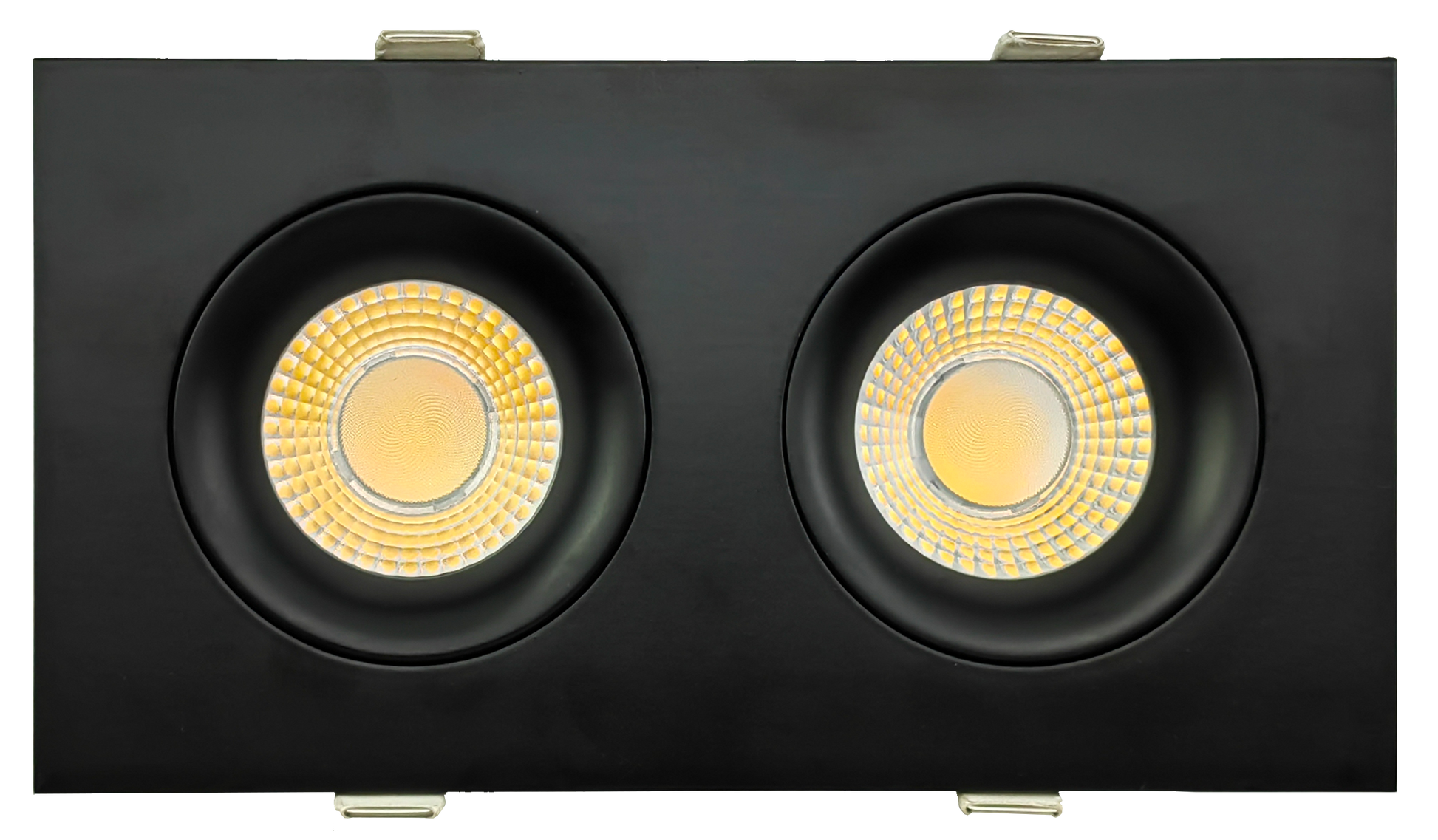

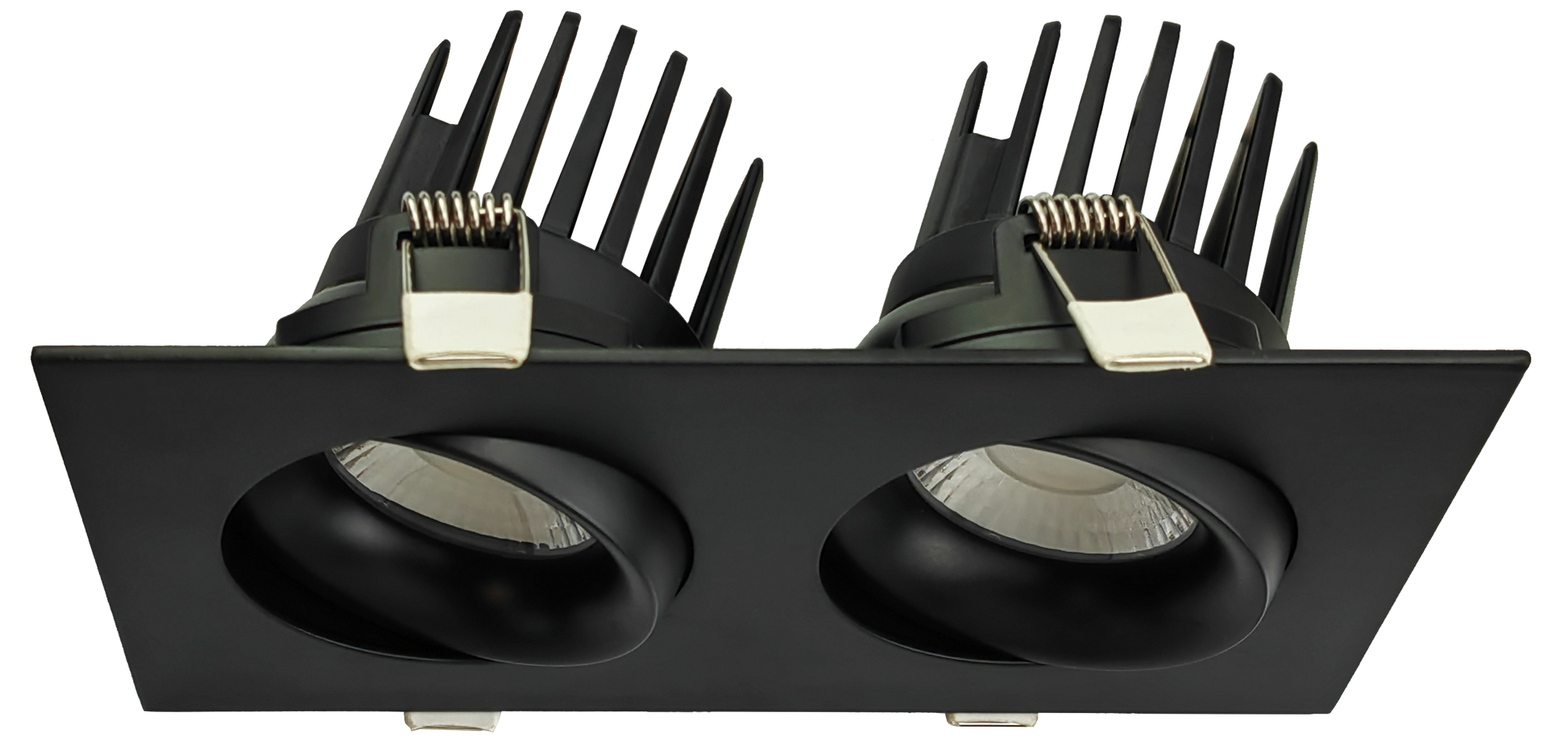

3.5” Double Head Multiple Gimbal Black
Dimmable
2600/3600 Lumens
40/27 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-98727
Description
PR/3.5/40W/GR/M2/5CCT/BK
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
Black
diffuser
Clear (Default)
number of lights
2
cutout
3.50” x 7.10”
OD (Outside dimensions)
4.34" x 8.00"
height
3.78”
mounting
Clip-in
Packaging Information
master pack
12
Barcode
024431987273
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1300/1800
lumens
2600/3600
CRI
90>
beam spread deg
40° (Default)
tilt angle
30°
Electrical Specs
watt
40/27W
volts
120-277V
output current
930/630mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 27W
classification
ETL, Title24 Listed
IES
