G-99321
Saturn multiple

4" single head trimless regress multiple gimbal black

4" Single Head Trimless Regress Multiple Gimbal Black

27,30,35,41,50k
Dimmable
1800/2700 Lumens
20/28 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-99321
Description
SN28W/GR/M1/5CCT/TL/BK
shape
Square
style
Trimless
size
4 Inch
finish
Black
diffuser
Clear
number of lights
1
cutout
Sq 4.56” - Rd 6.46”

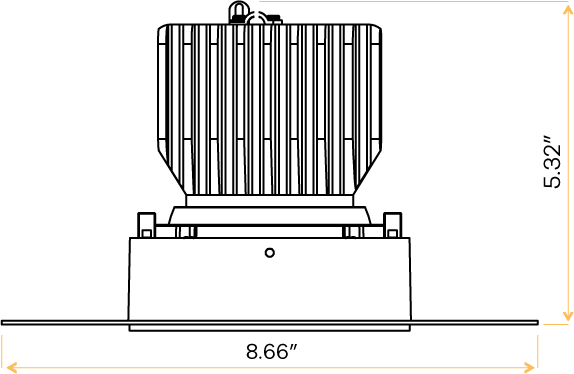

OD (Outside dimensions)
8.66"
height
5.32”
mounting
Mud-in
Packaging Information
master pack
12
Barcode
024431993212
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
1800/2700
CRI
90>
beam spread deg
60°
tilt angle
20°
rotating
360°
Electrical Specs
watt
20/28W
volts
120-277V
output current
500mA/700mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Only at 20W
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New construction plate
G-19982 (7 Punchouts)
Clear Lens Options
G-25631 40° G-25632 60°
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
Multi Driver Converter
G-95826 20 Watt
