G-99324
Saturn multiple

4" four head trimless regress multiple gimbal black

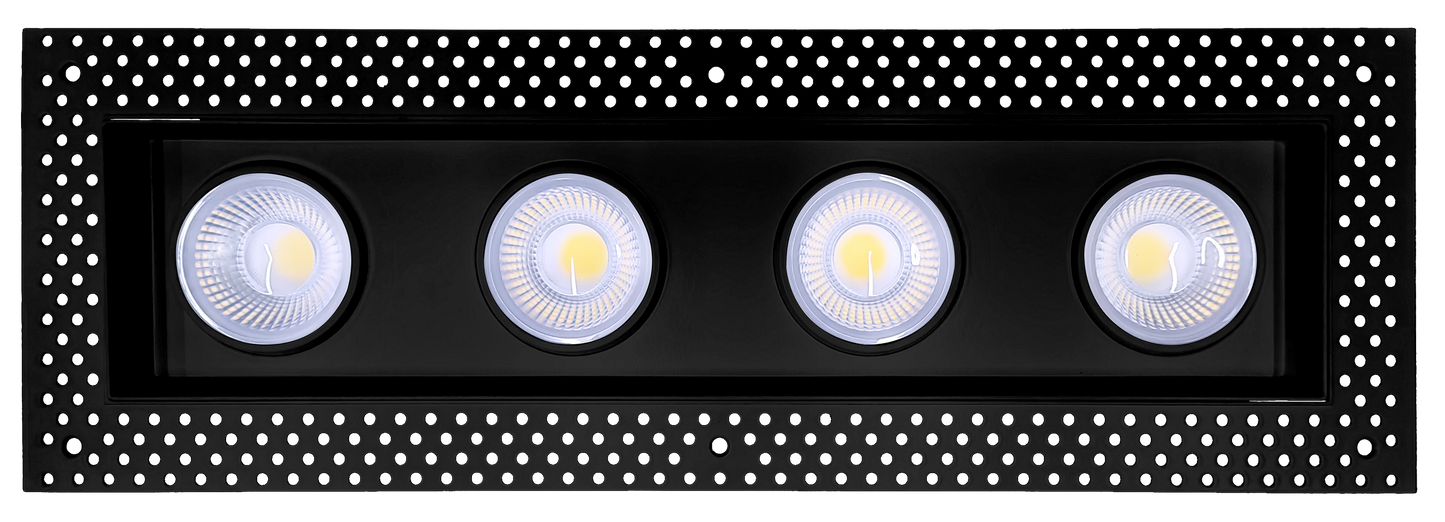

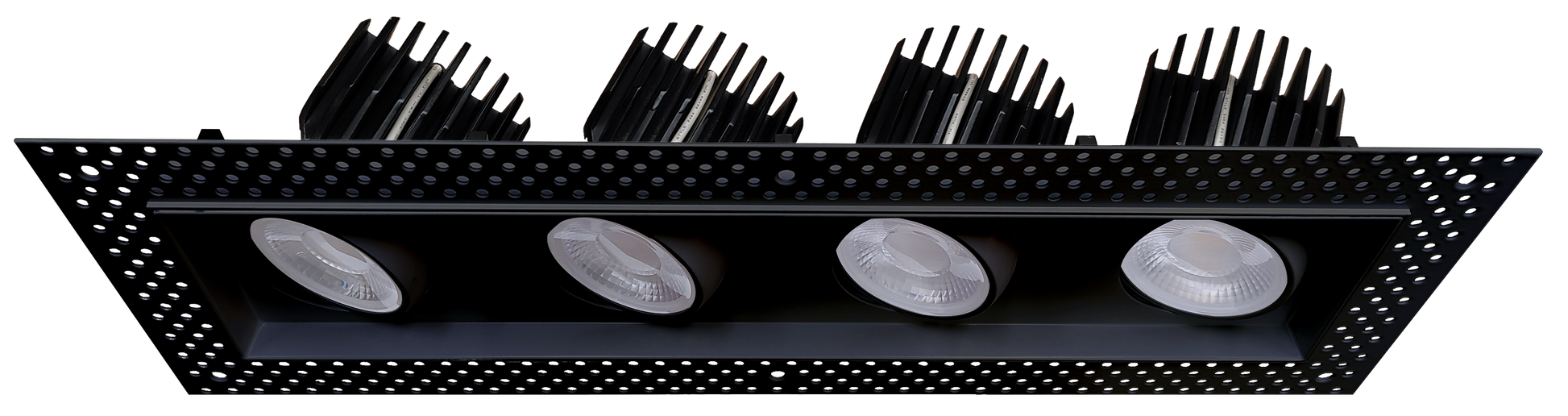

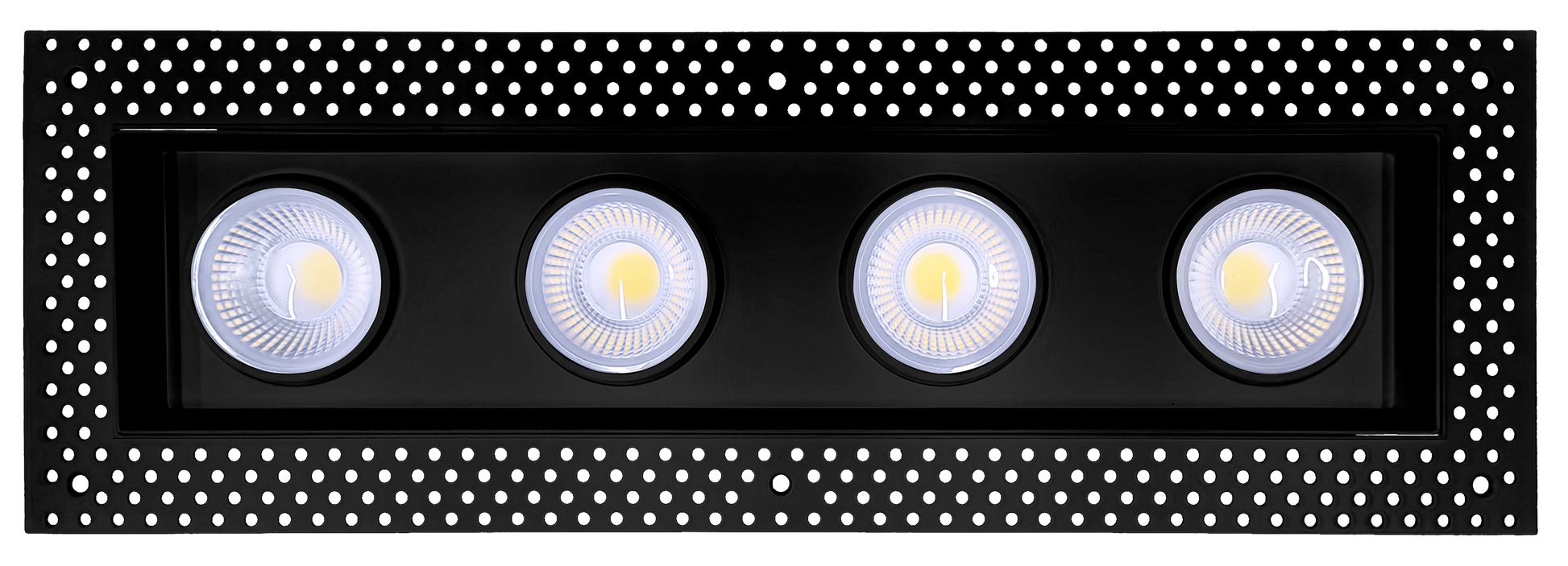

4" Four Head Trimless Regress Multiple Gimbal Black

27,30,35,41,50k
Dimmable
6400/10400 Lumens
72/112 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-99324
Description
SN112W/GR/M4/5CCT/TL/BK
shape
Multiple
style
Trimless
size
4 Inch
finish
Black
diffuser
Clear
number of lights
4
cutout
4.56” X 19.70”

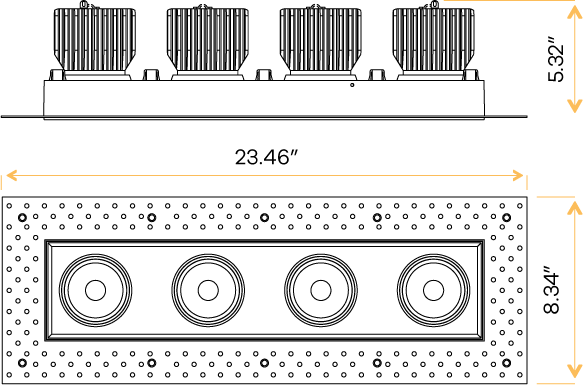

OD (Outside dimensions)
8.34" X 23.46"
height
5.32”
mounting
Mud-in
Packaging Information
master pack
2
Barcode
024431993243
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1600/2600
lumens
6400/10400
CRI
90>
beam spread deg
60°
tilt angle
20°
rotating
360°
Electrical Specs
watt
72/112W
volts
120-277V
output current
900mA x 1350mA x 2
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Only at 72W
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New Construction Plate
G-98823 (5 Punchouts)
Clear Lens Options
G-25631 40° G-25632 60°
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W)
