G-99124
Saturn multiple

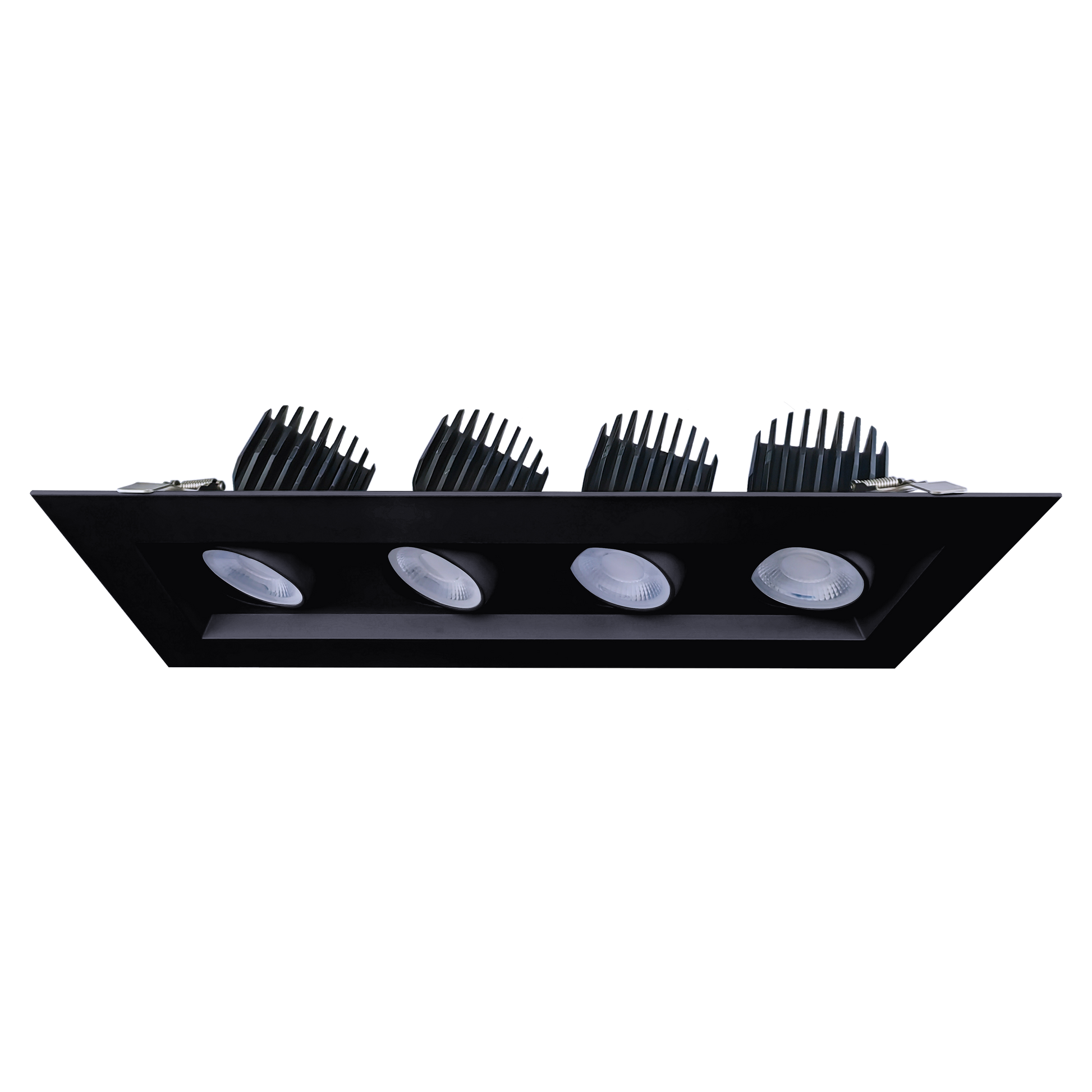

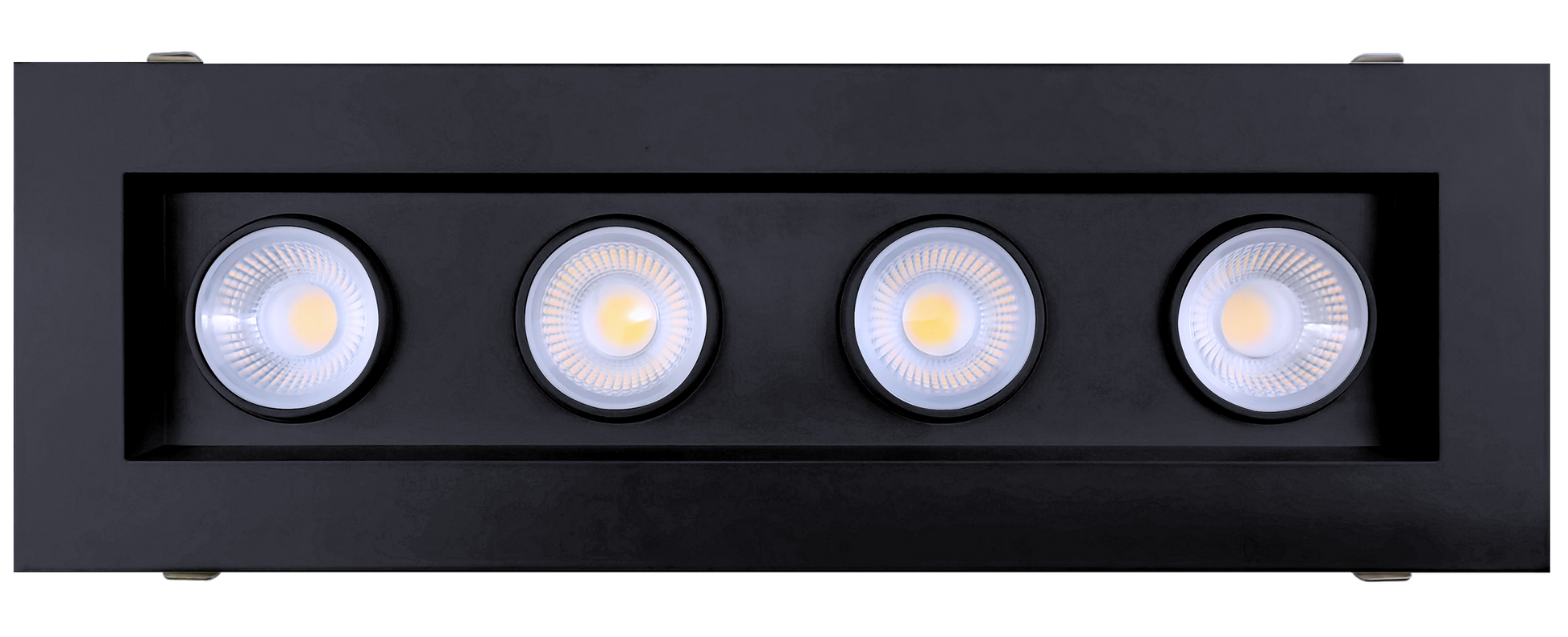

4” four head regress multiple gimbal black

4” Four Head Regress Multiple Gimbal Black

27,30,35,41,50k
Dimmable
6400/10400 Lumens
72/112 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-99124
Description
SN/4/112W/GR/M4/5CCT/BK
shape
Multiple
style
Trimmed
size
4 Inch
finish
Black
diffuser
Clear
number of lights
4
cutout
4.65” X 19.50”
OD (Outside dimensions)
7.48" X 22.59"
height
5.32”
mounting
Clip-in
Packaging Information
master pack
2
Barcode
024431991249
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1600/2600
lumens
6400/10400
CRI
90>
beam spread deg
60° (Default)
tilt angle
20°
Electrical Specs
watt
72/112W
volts
120-277V
output current
900mA x 2/1350mA x 2
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Only at 72W
classification
ETL, Title24 Listed

Downloads

Product Spec IES

Accessories

New Construction Plate
G-98823 (5 Punchouts)
Clear Lens Options
G-25631 40° G-25632 60°
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-95525 (25W)
