G-99122
Back
Saturn multiple

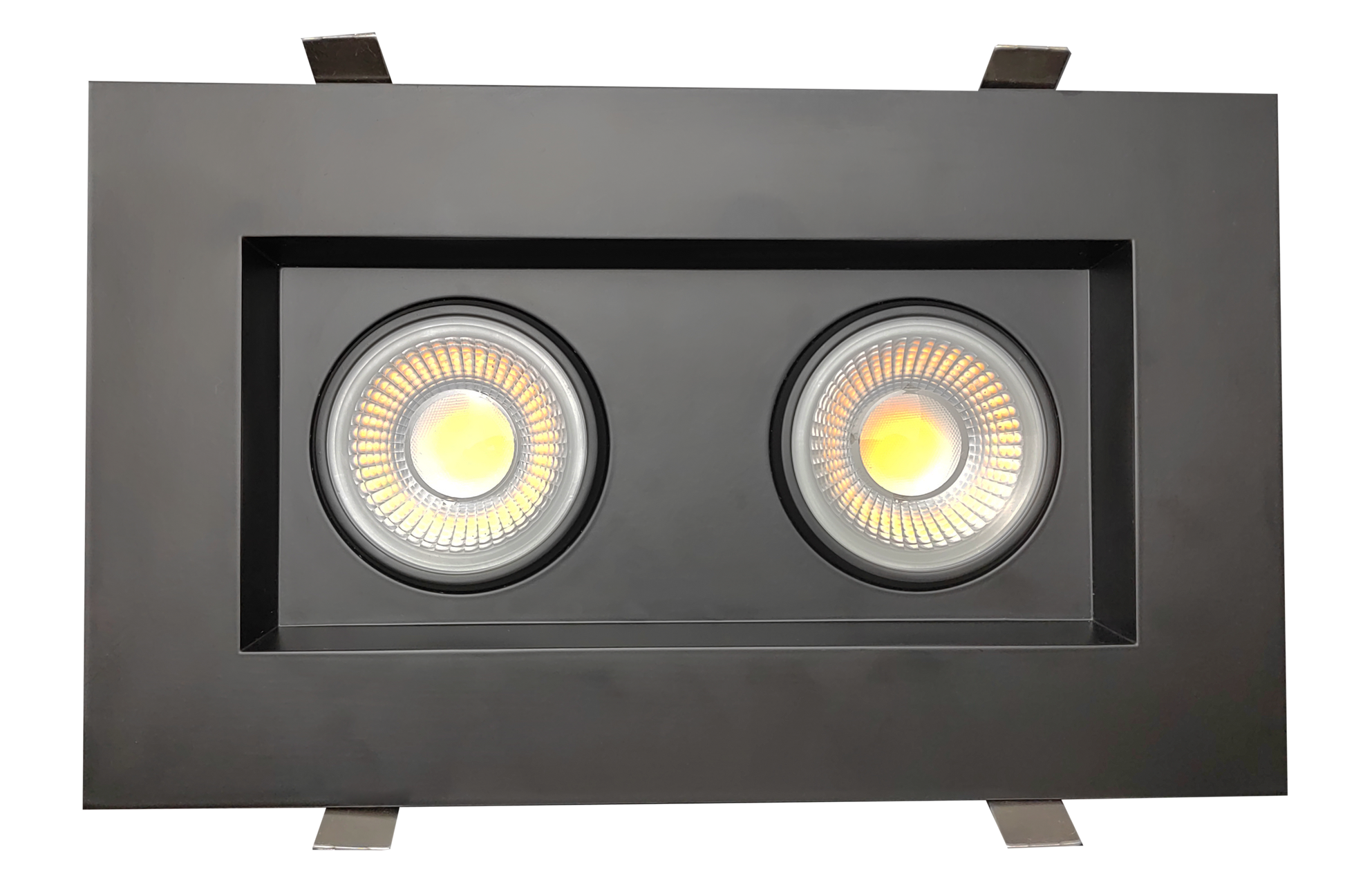

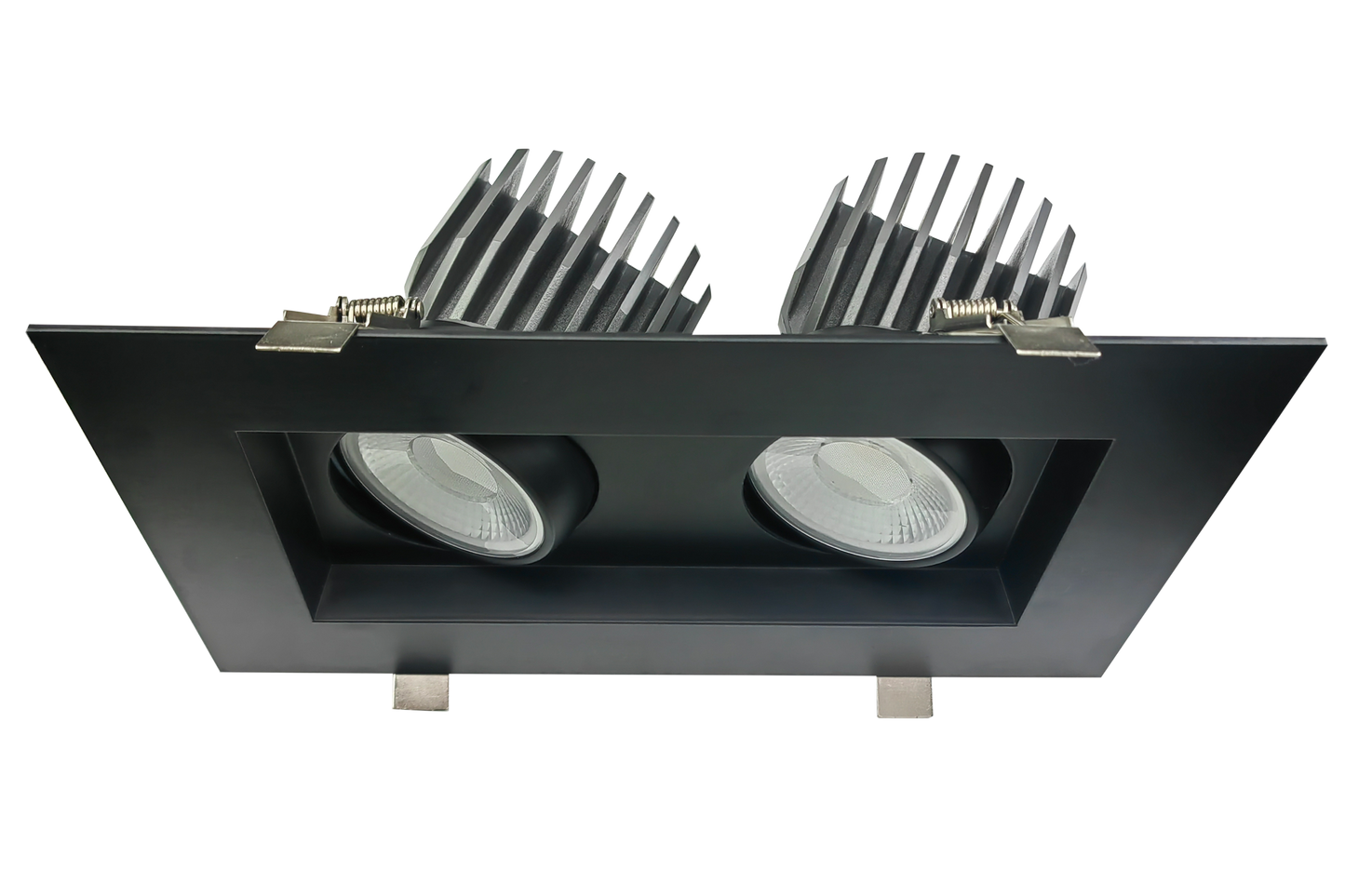

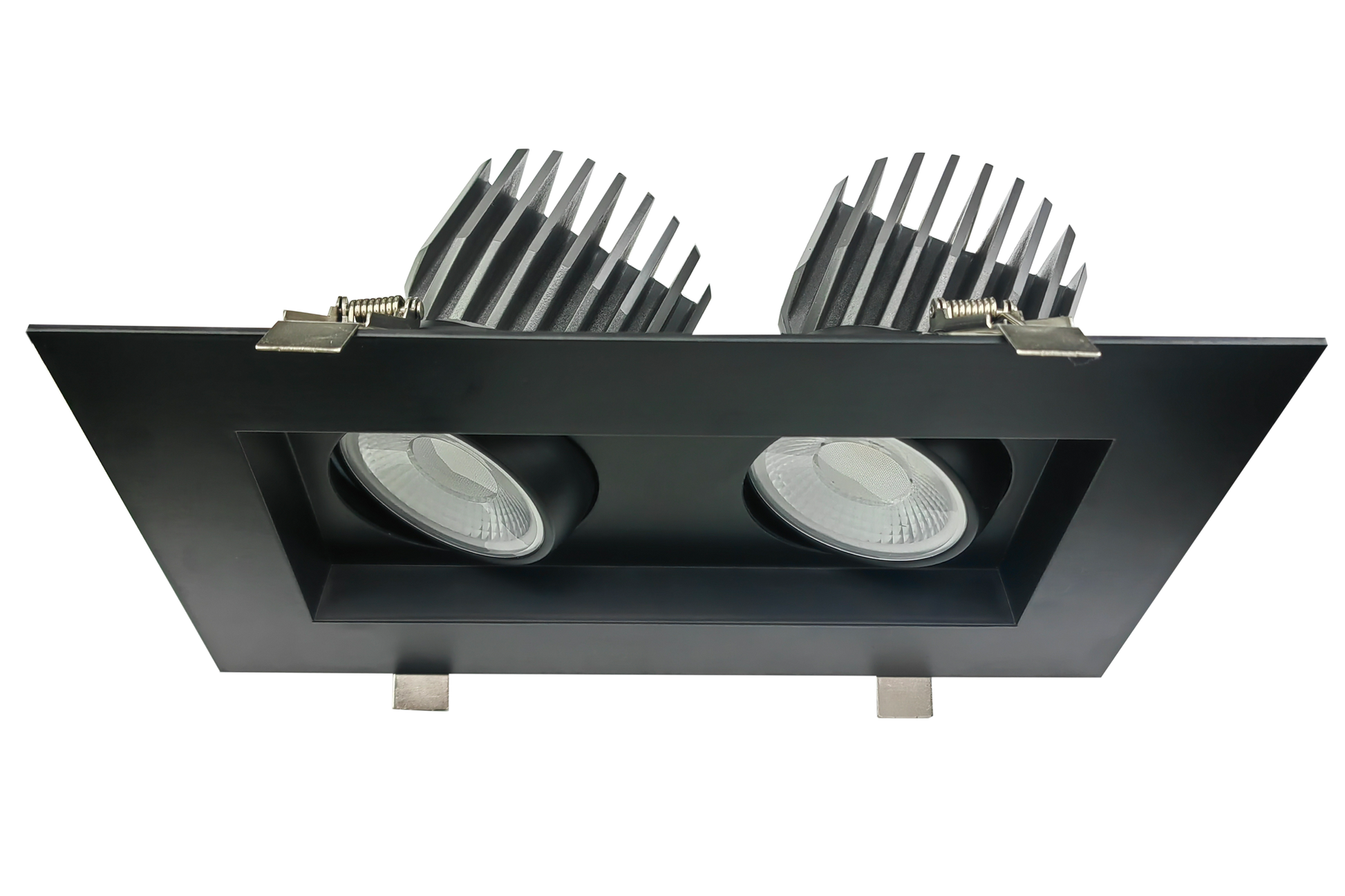

4” double head regress multiple gimbal black

4” Double Head Regress Multiple Gimbal Black

27,30,35,41,50k
Dimmable
3200/5200 Lumens
36/56 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-99122
Description
SN/4/56W/GR/M2/5CCT/BK
Shape
Multiple
Style
Trimmed
Size
4 Inch
Finish
Black
Diffuser
Clear
Number of Lights
2
Cutout
4.65” X 9.37”
OD (Outside dimensions)
7.48" X 12.51"
Height
5.32”
Mounting
Clip-in
Packaging Information
Master pack
4
Barcode
024431991225
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
Each Head Lumens
1600/2600
LUMENS
3200/5200
CRI
90>
Beam Spread Deg
60° (Default)
Tilt Angle
30°
Electrical Specs
Watt
36/56W
Volts
120-277V
Output Current
900mA/1350mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet
Warranty
3 Years
IC Rated
Only at 36W
Classification
ETL, Title24 Listed

Downloads

Product Spec IES
