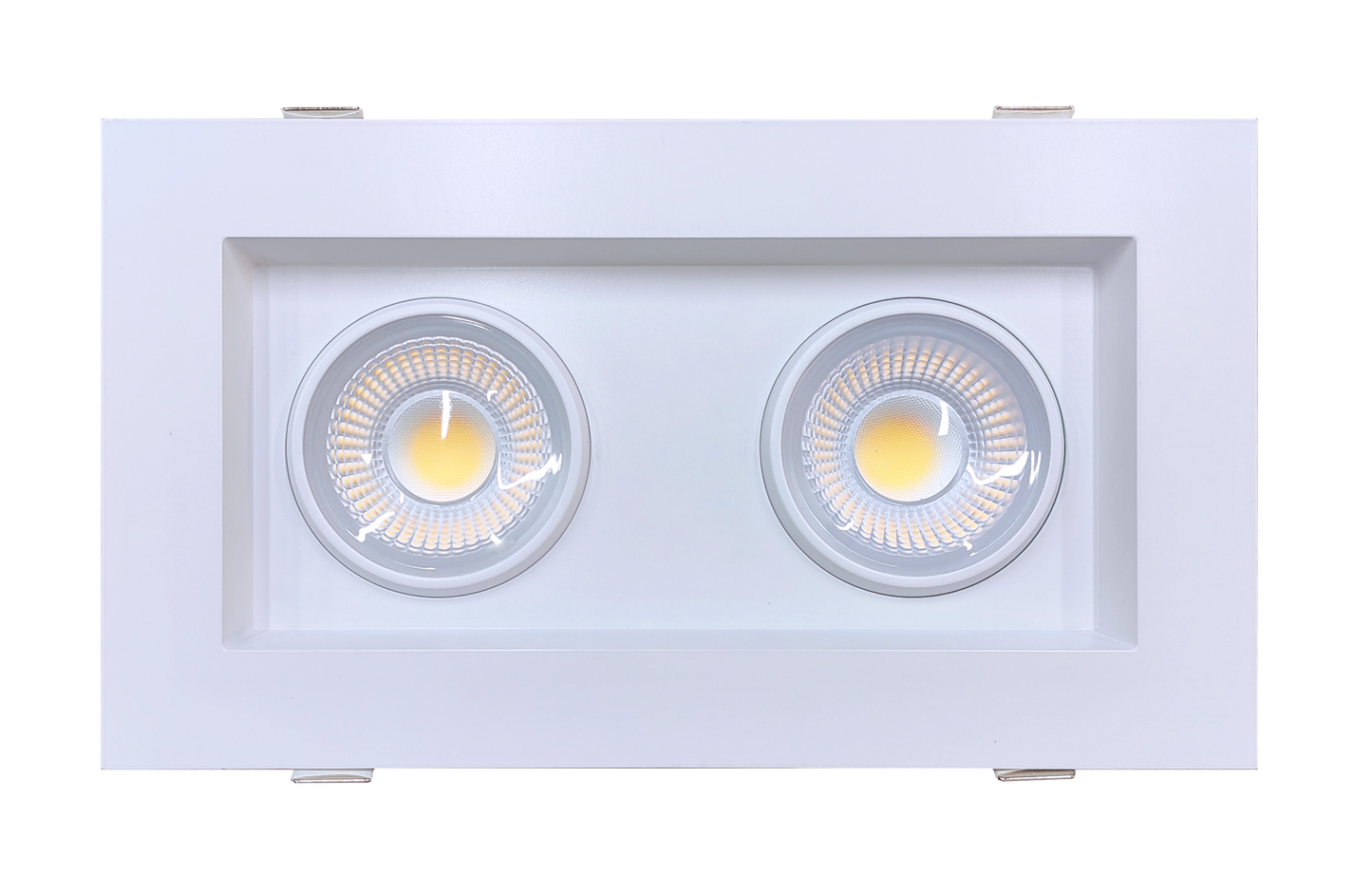

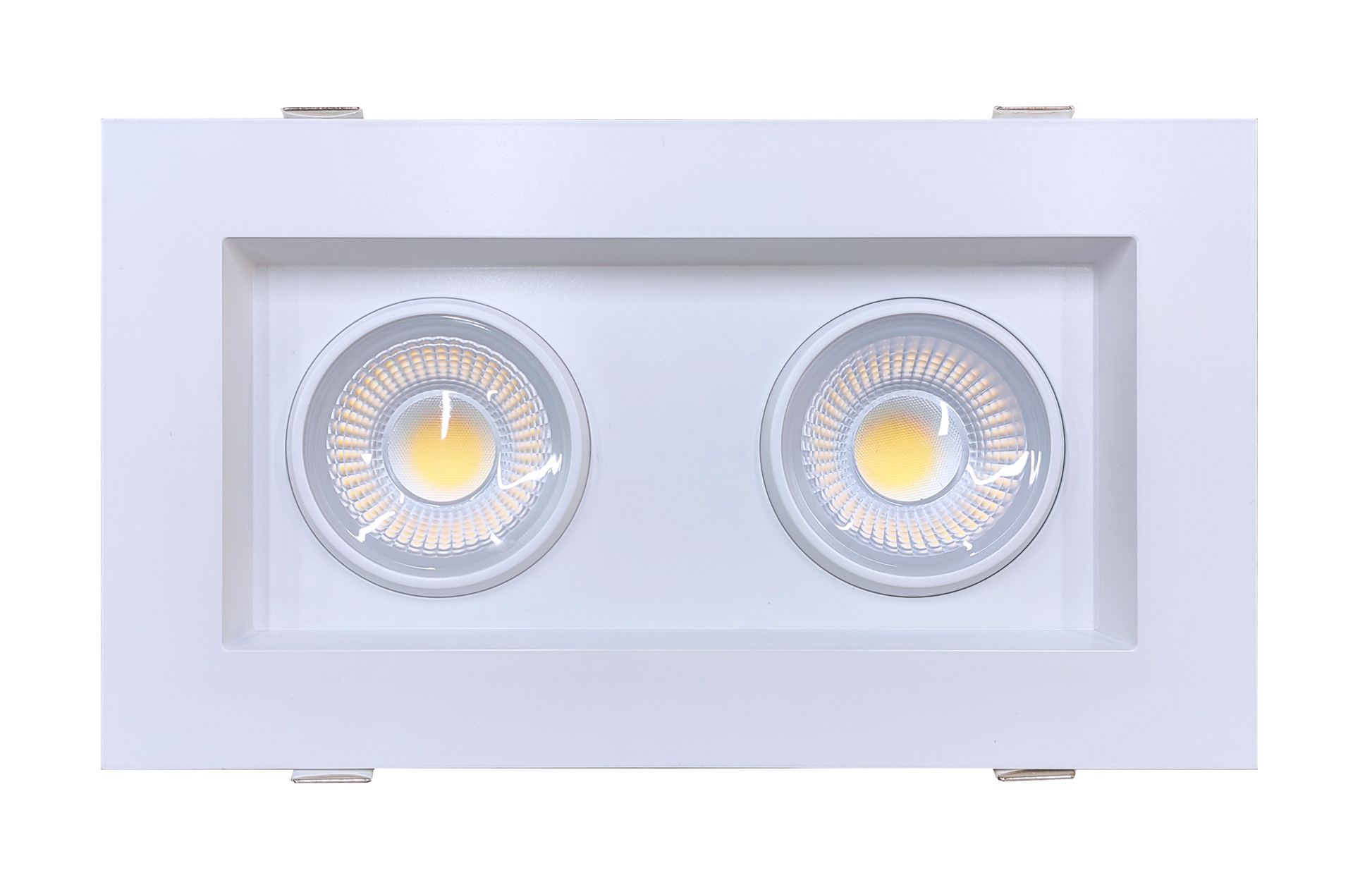

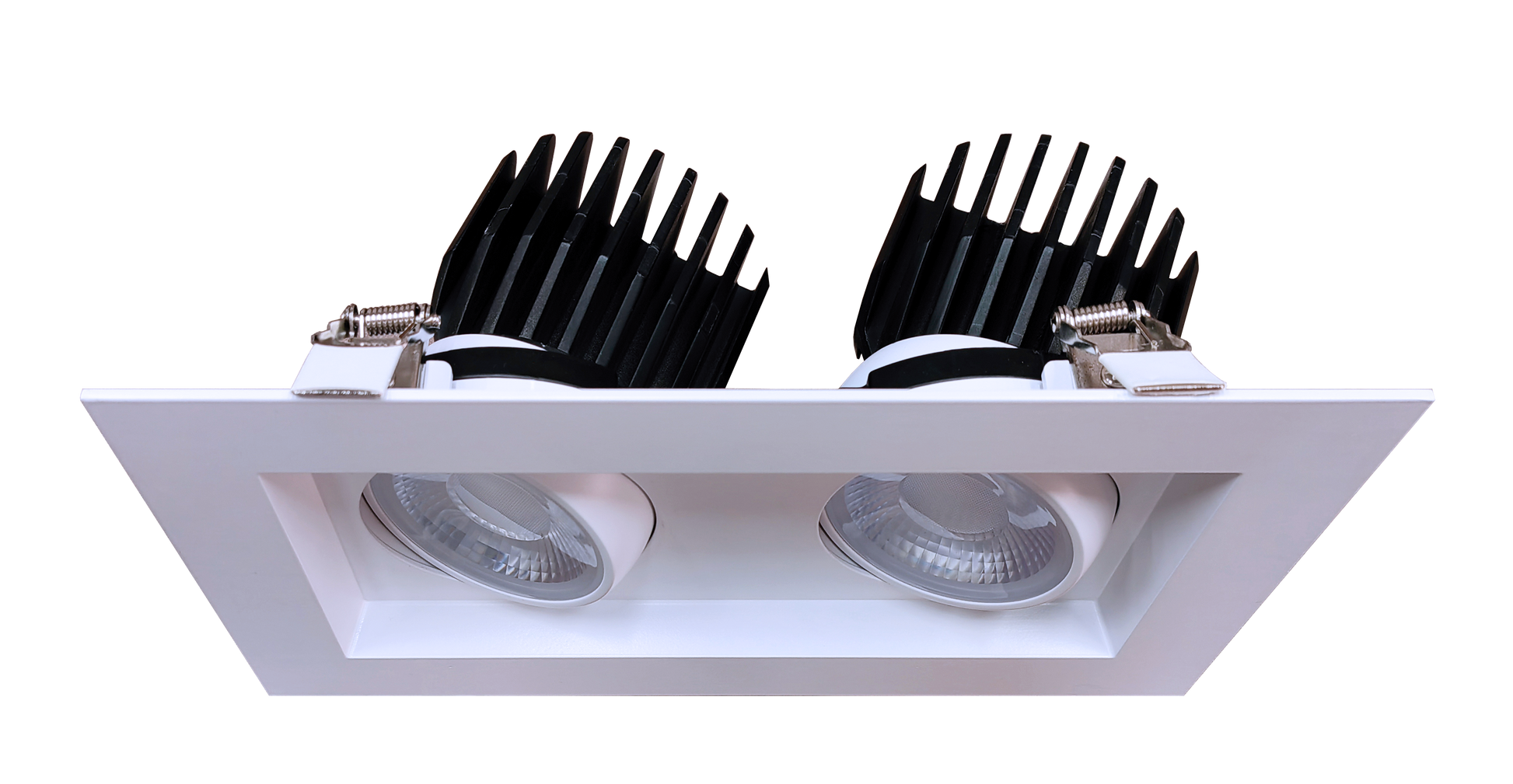

G-99022
4” double head regress multiple gimbal white
4” Double Head Regress Multiple Gimbal White
Dimmable
3200/5200 Lumens
36/56 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-99022
Description
SN/4/56W/GR/M2/5CCT/WH
shape
Multiple
style
Trimmed
size
4 Inch
finish
White
diffuser
Clear
number of lights
2

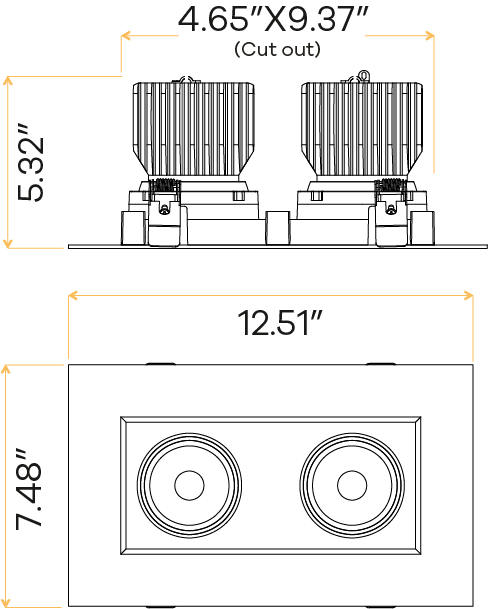

cutout
4.65” X 9.37”

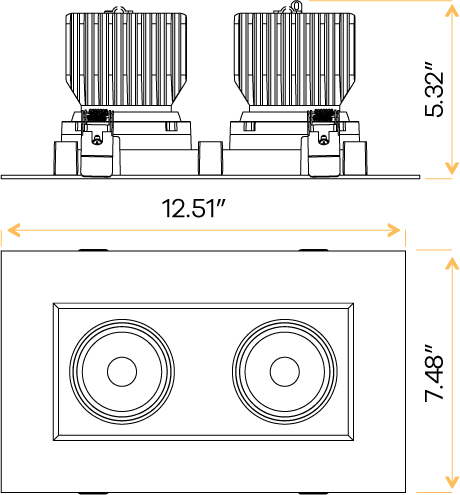

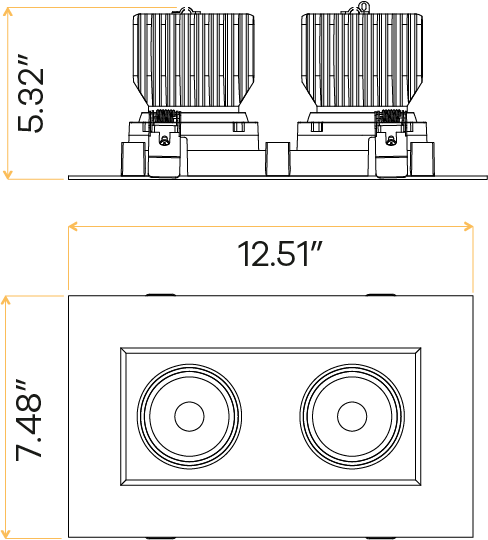

OD (Outside dimensions)
7.48" X 12.51"
height
5.32”
mounting
Clip-in
Packaging Information
master pack
4
Barcode
024431990228
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
1600/2600
lumens
3200/5200
CRI
90>
beam spread deg
60° (Default)
tilt angle
30°
Electrical Specs
watt
36/56W
volts
120-277V
output current
900mA/1350mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Only at 36W
classification
ETL, Title24 Listed
IES
