G-22505

G-22505

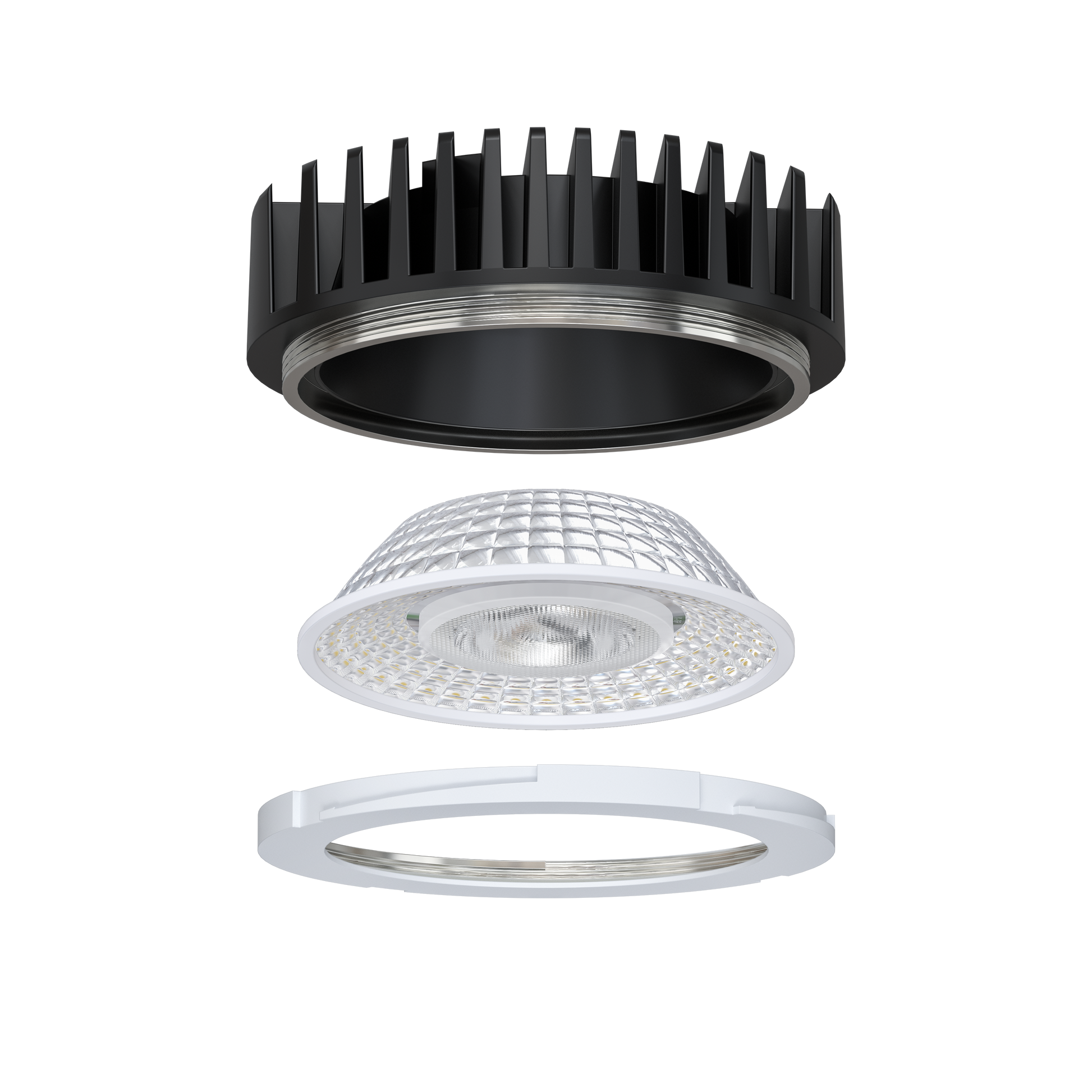

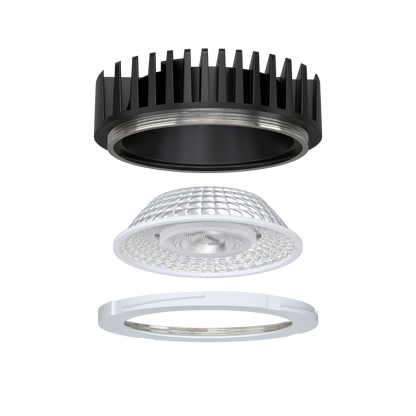

5 inch 18w interchangeable module

5 Inch 18w Interchangeable Module

Module:

Pair Trim:

27,30,35,41,50k

Dimmable

1800 Lumens

18 Watts

120-277 V

Dim to Warm

View full details

Pair Trim

View all 31

G-22510

G-22511

G-22512

G-22513

G-22514

G-22515

G-22516

G-22517

G-22550

G-22551

G-22560

G-22561

G-22520

G-22521

G-22522

G-22523

G-22524

G-22525

G-22526

G-22527

G-22530

G-22531

G-22532

G-22533

G-22534

G-22535

G-22540

G-22541

G-22542

G-22543

G-22544

Close

Pair Trim

5 Inch White Round Trim

G-22510

5 Inch Black Round Trim

G-22511

5 Inch Two-tone Round Trim

G-22512

5 Inch Bronze Round Trim

G-22513

5 Inch Brushed Nickel Round Trim

G-22514

5 Inch Brushed Brass Round Trim

G-22515

5 Inch Brushed Copper Round Trim

G-22516

5 Inch Haze Round Trim

G-22517

5 Inch White Round Shallow Trim

G-22550

5 Inch Black Round Shallow Trim

G-22551

5 Inch White Round Ultra Shallow Trim

G-22560

5 Inch Black Round Ultra Shallow Trim

G-22561

5 Inch White Square Trim

G-22520

5 Inch Black Square Trim

G-22521

5 Inch Two-tone Square Trim

G-22522

5 Inch Bronze Square Trim

G-22523

5 Inch Brushed Nickel Square Trim

G-22524

5 Inch Brushed Brass Square Trim

G-22525

5 Inch Brushed Copper Square Trim

G-22526

5 Inch Haze Square Trim

G-22527

5 Inch White Round Trimless Kit

G-22530

5 Inch Black Round Trimless Kit

G-22531

5 Inch Bronze Round Trimless Kit

G-22532

5 Inch Nickel Round Trimless Kit

G-22533

5 Inch Brass Round Trimless Kit

G-22534

5 Inch Copper Round Trimless Kit

G-22535

5 Inch White Square Trimless Kit

G-22540

5 Inch Black Square Trimless Kit

G-22541

5 Inch Bronze Square Trimless Kit

G-22542

5 Inch Nickel Square Trimless Kit

G-22543

5 Inch Brass Square Trimless Kit

G-22544

Information

General Specs

Product Code

G-22505

Description

M5/18W/LED/5CCT

size

5 Inch

diffuser

Clear (Default)

number of lights

1

mounting

Universal

Packaging Information

master pack

18

Barcode

990379225053

Light Specs

temp

Selectable CCT

Color (CCT)

27,30,35,41,50K

Dim to Warm Colors

Multi Select

lumens

1800

CRI

90>

beam spread deg

60° (Default)

Electrical Specs

watt

18W

volts

120-277V

output current

420mA

plenum rated

FT6

dimming type

Triac Or 0-10V Dimming

Compliance

location rating

Wet

warranty

3 Years

IC Rated

Yes

classification

ETL, Title24 Listed

Downloads

Product Spec Family Sheet

Accessories

Clear Lens Options

G-21630 15° Degree G-21631 24° Degree G-21632 40° Degree

Frosted Lens

Lens Covers

G-22580 PRISMATIC G-22581 SOLITE G-22582 BEAMSPLIT

Hex honeycomb

G-22579 Hex Honeycomb

Extension Cords

G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)

Emergency LED Driver

G-48411 (30W) G-95521 (60W) G-95525 (25W)
