G-01021
Flarion

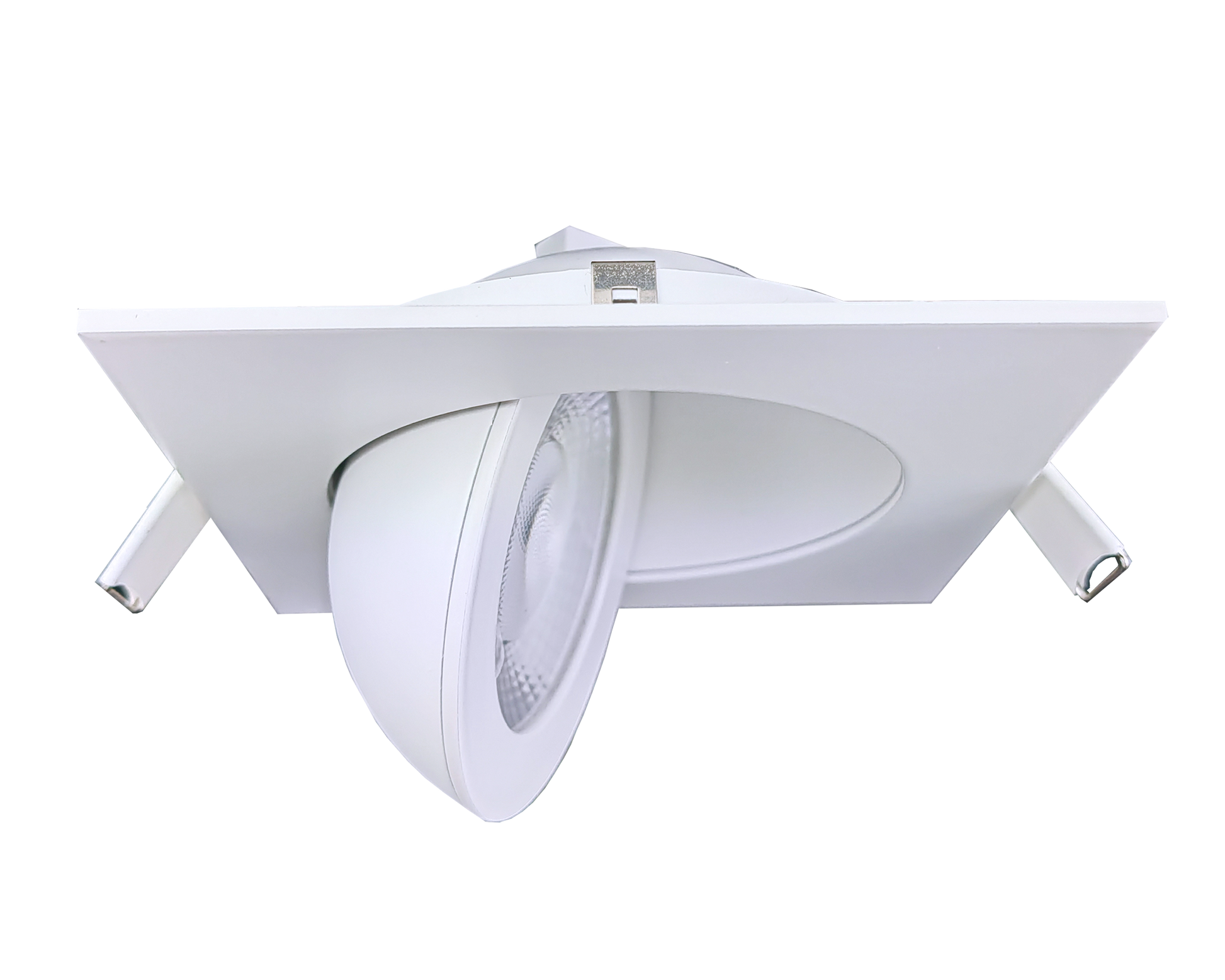

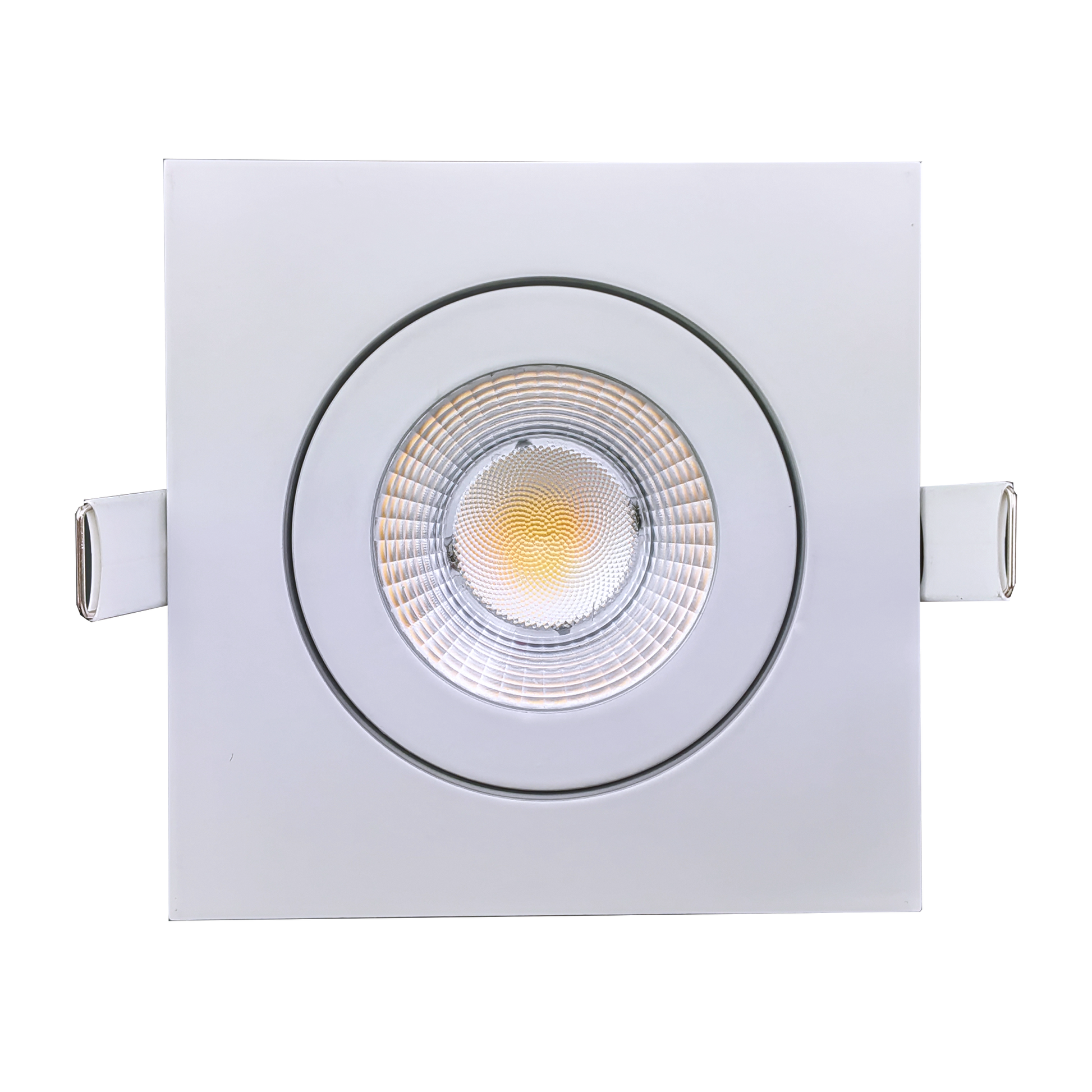

3.5" single head multiple floating gimbal white

3.5" Single head multiple floating gimbal White

27,30,35,41,50k
Dimmable
850 Lumens
10 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-01021
Description
FL/3.5/10W/G/M1/5CCT/WH
shape
Square
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
1
cutout
3.65”

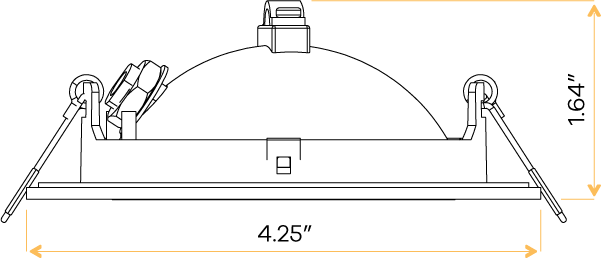

OD (Outside dimensions)
4.25"
height
1.66”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024441010213
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
850
CRI
90>
beam spread deg
40° (Default)
tilt angle
90°
rotating
360°
Electrical Specs
watt
10W
volts
120-277V
output current
230mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New construction plate
G-98800 (5 Punchouts) G-98810 (5 Punchouts)
Clear Lens Options
G-01425 G-01426 G-01427
Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Multi Driver Converter
G-95824 10 Watt
