G-01023

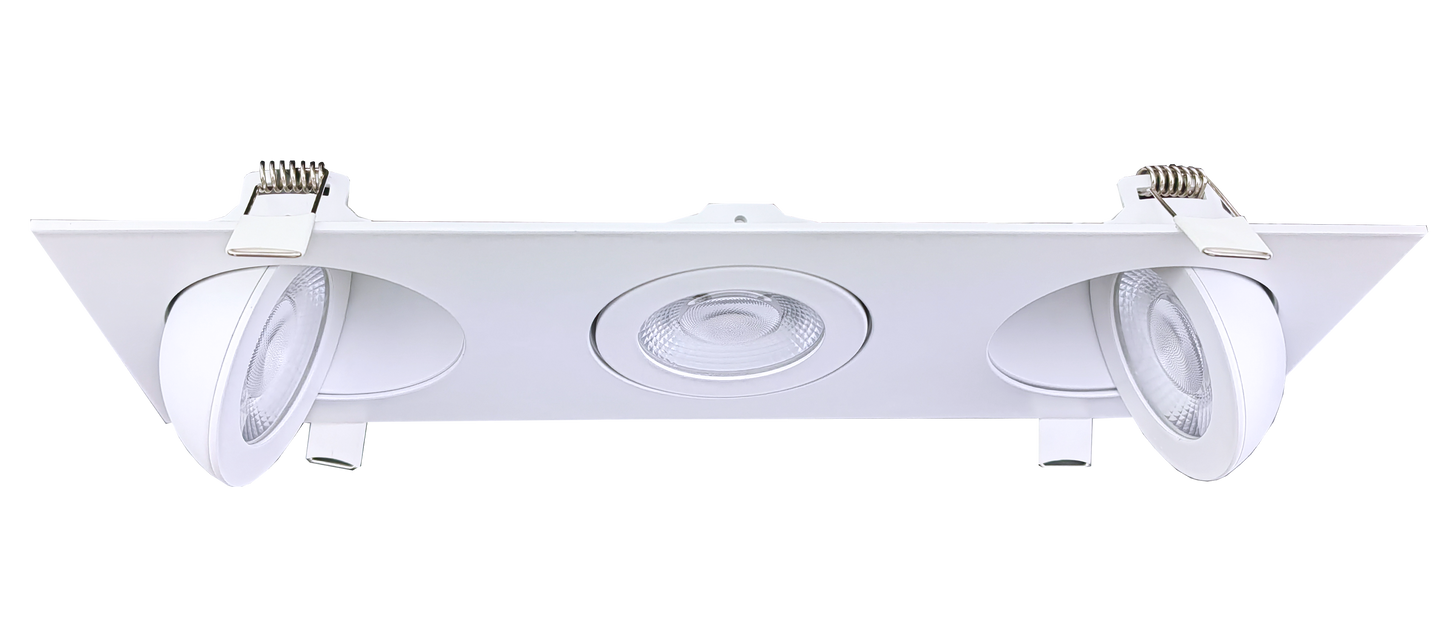

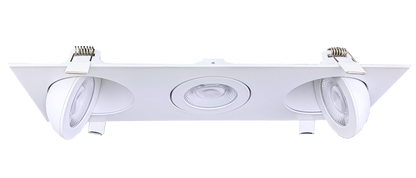

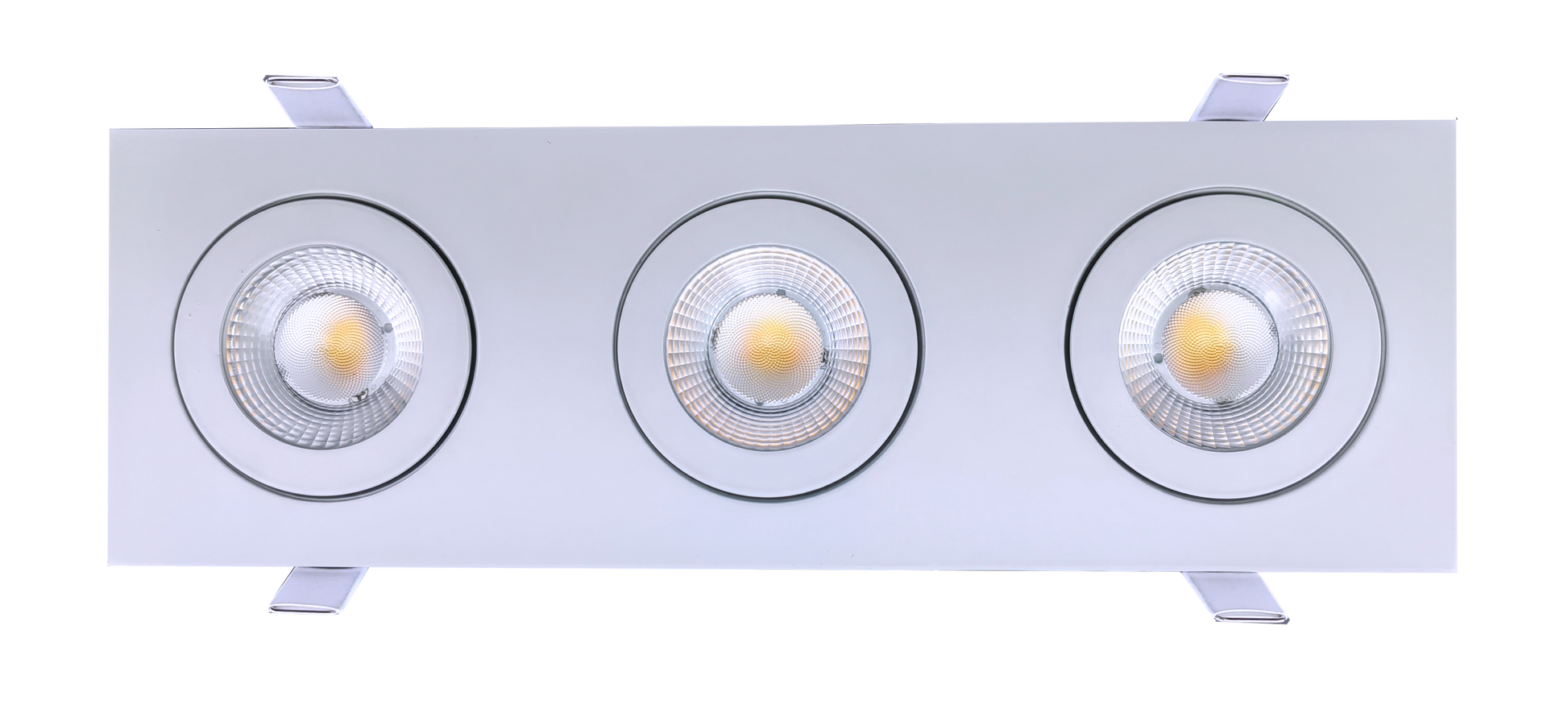

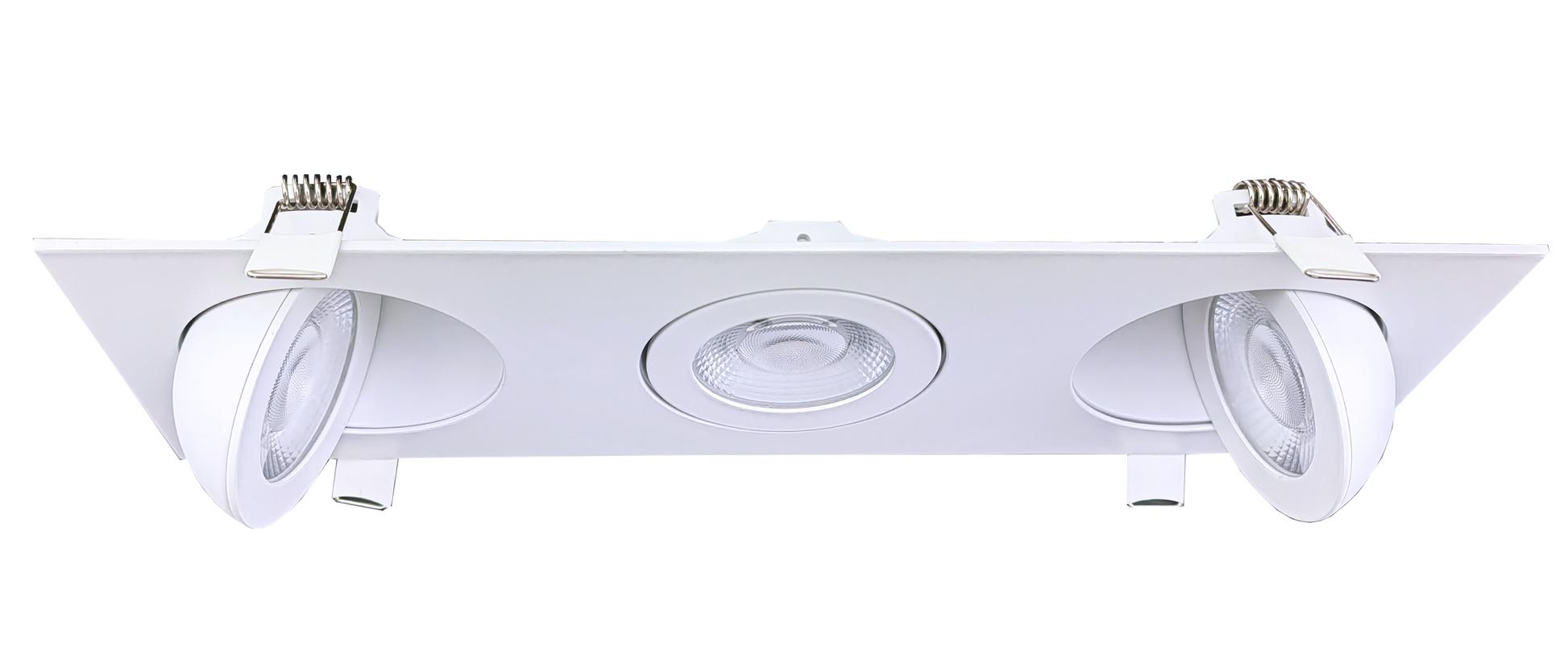

3.5" triple head multiple floating gimbal white
3.5" Triple head multiple floating gimbal White
Dimmable
2400 Lumens
27 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-01023
Description
FL/3.5/27W/GR/M3/5CCT/WH
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
3

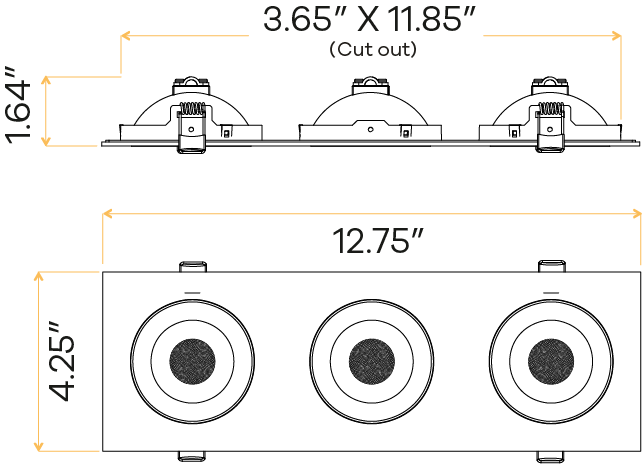

cutout
3.65” X 11.85”

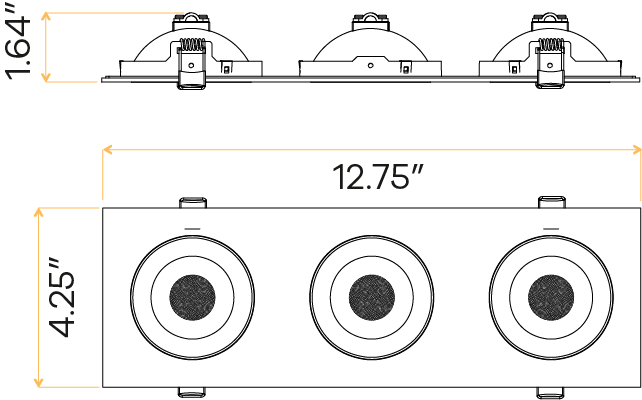

OD (Outside dimensions)
4.25" X 12.75"
height
1.66”
mounting
Clip-in
Packaging Information
master pack
12
Barcode
024441010237
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
800
lumens
2400
CRI
90>
beam spread deg
40° (Default)
tilt angle
90°
rotating
360°
Electrical Specs
watt
27W
volts
120-277V
output current
720mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet
warranty
3 Years
IC Rated
Yes
classification
ETL, Title24 Listed
IES
