G-01022
Flarion

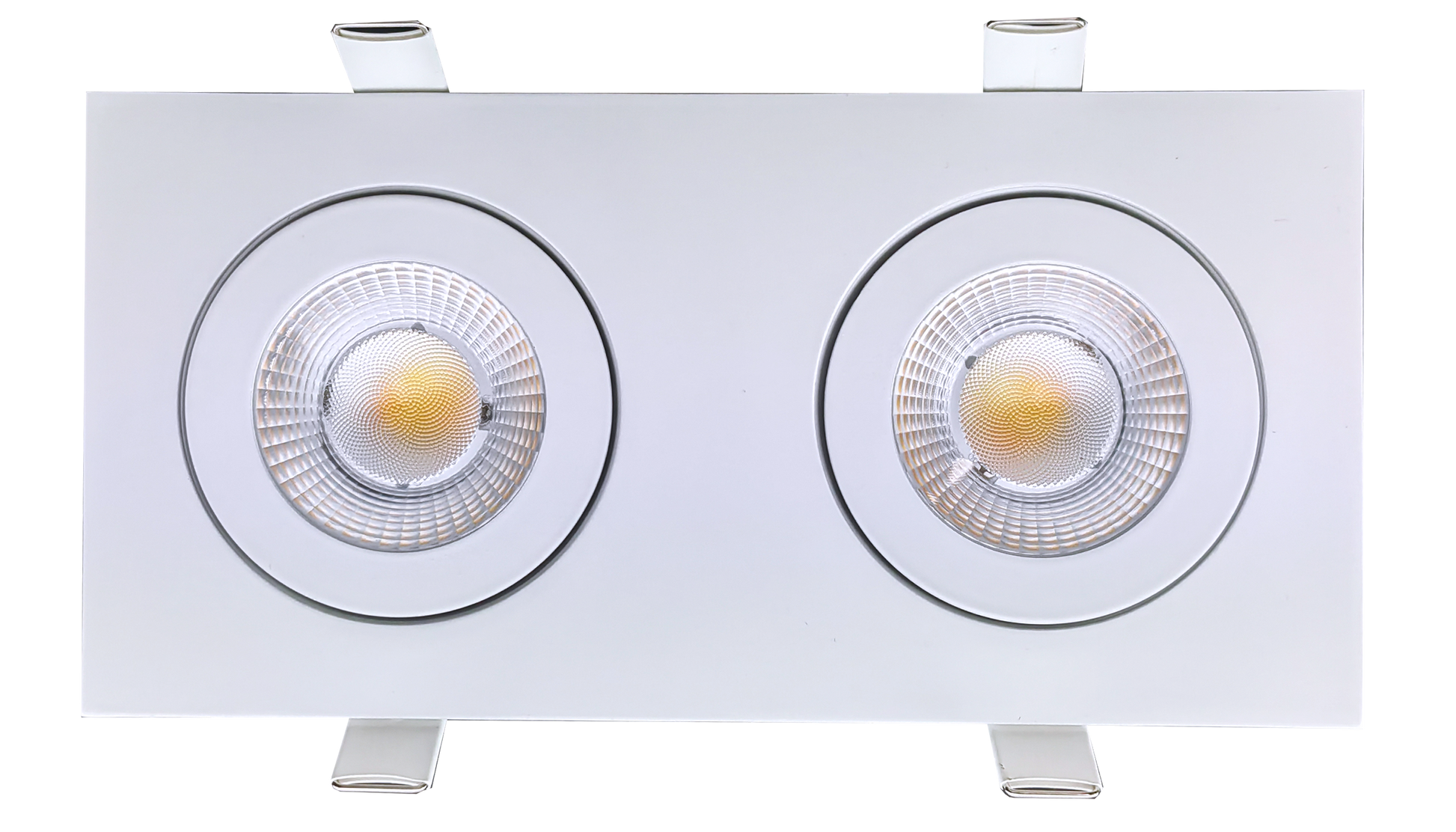

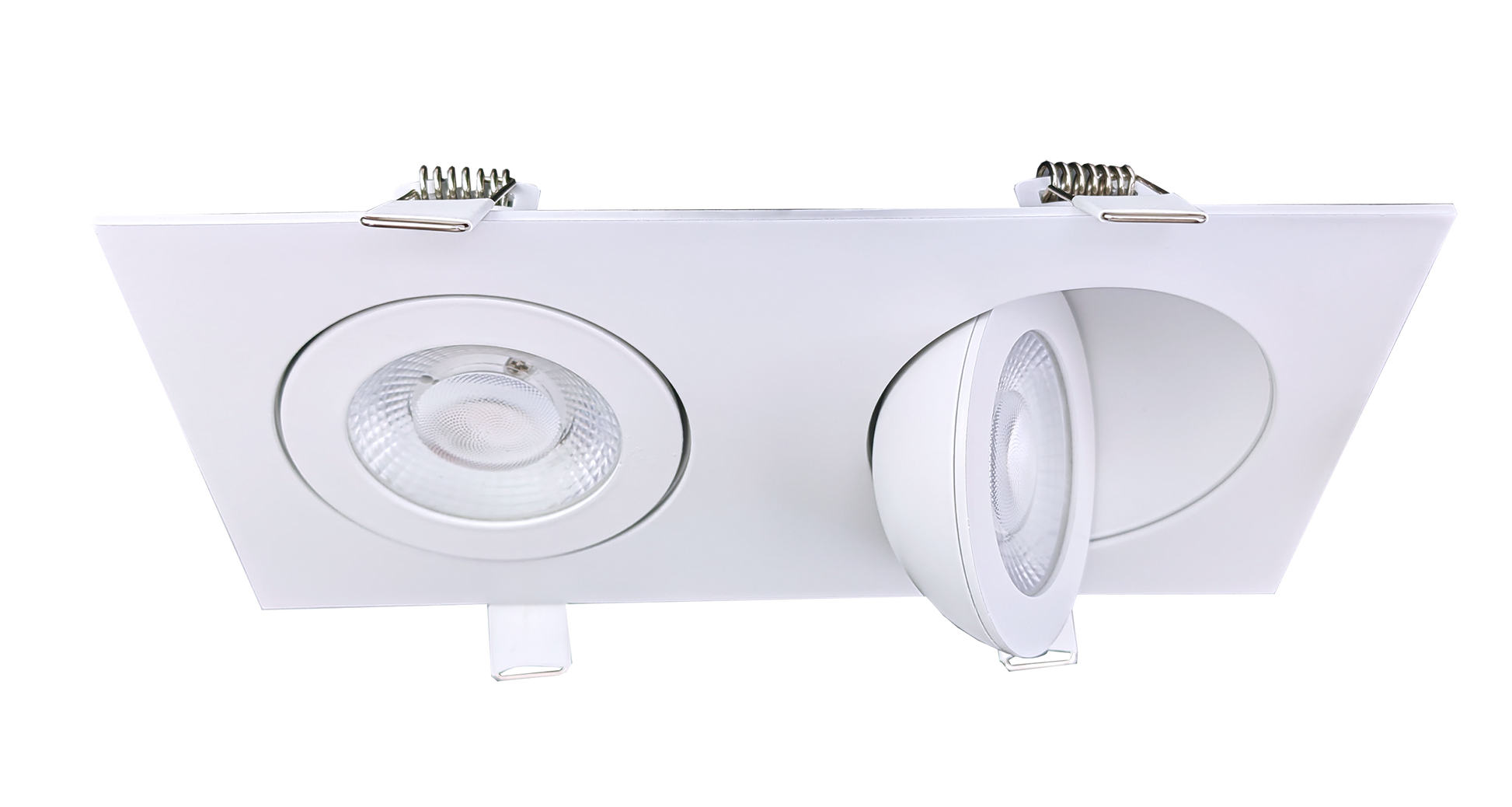

3.5" double head multiple floating gimbal white

3.5" double head multiple floating gimbal White

27,30,35,41,50k
Dimmable
1600 Lumens
20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-01022
Description
FL/3.5/20W/G/M2/5CCT/WH
shape
Multiple
style
Trimmed
size
3.5 Inch
finish
White
diffuser
Clear
number of lights
2

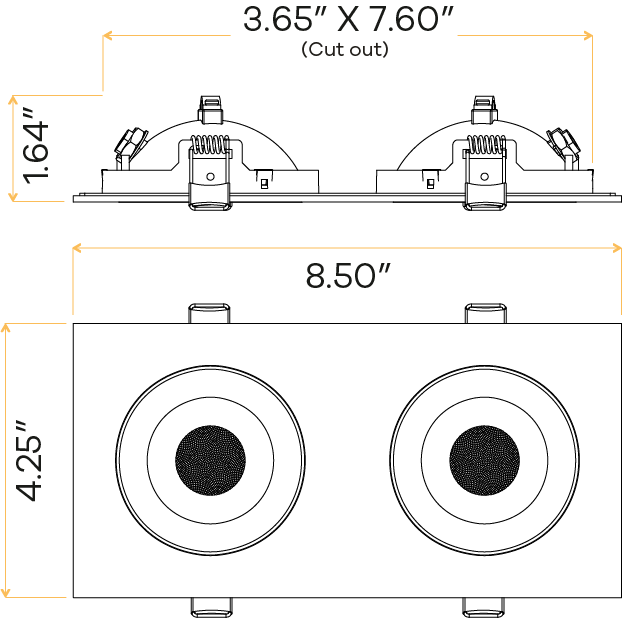

cutout
3.65” X 7.60”

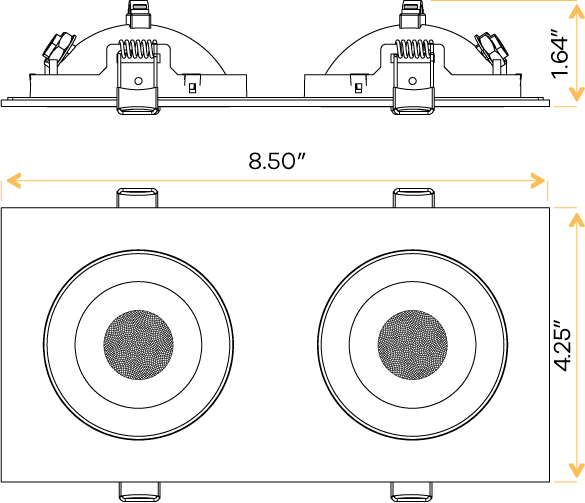

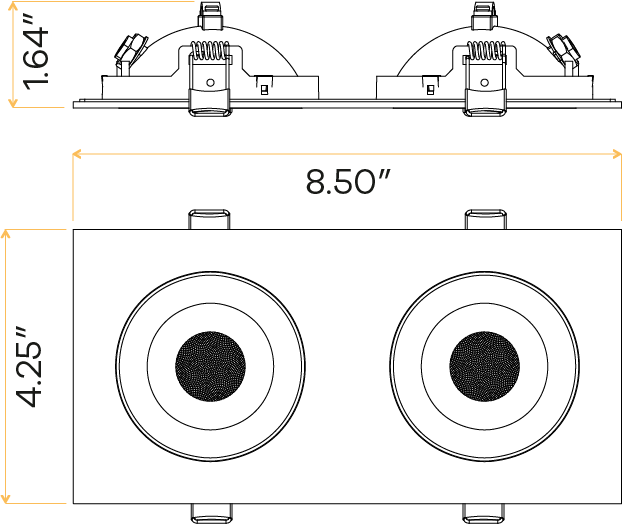

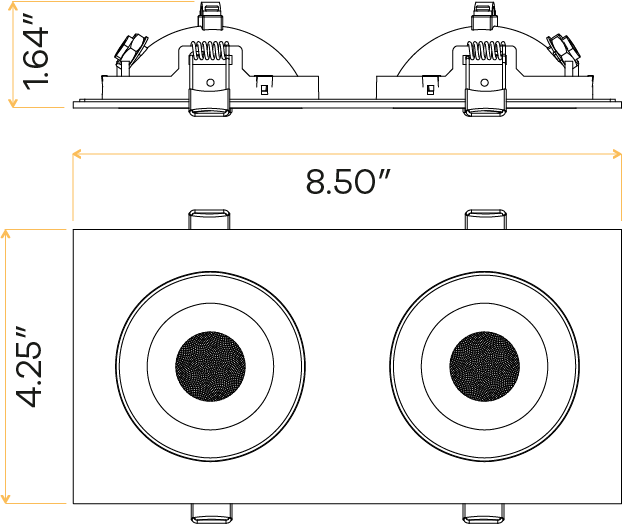

OD (Outside dimensions)
4.25" X 8.50
height
1.66”
mounting
Clip-in
Packaging Information
master pack
18
Barcode
024441010220
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
each head lumens
800
lumens
1600
CRI
90>
beam spread deg
40° (Default)
tilt angle
90°
rotating
360°
Electrical Specs
watt
20W
volts
120-277V
output current
495mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
dimming range
100 - 5%
Compliance
location rating
Wet
warranty
5 Years
IC Rated
Yes
classification
ETL, Title24 Listed

Downloads

Product Spec Family Sheet IES

Accessories

New Construction Plate
G-98822 (1 Punchouts)
Clear Lens Options
G-01425 24° G-01426 40° G-01427 60°
Extension Cords
G-20247 (5 Ft) G-20248 (10 Ft) G-19822 (20 Ft) G-19823 (30 Ft)
Emergency LED Driver
G-48411 (30W) G-95521 (60W) G-95525 (25W)
