G-12020
Glawre'

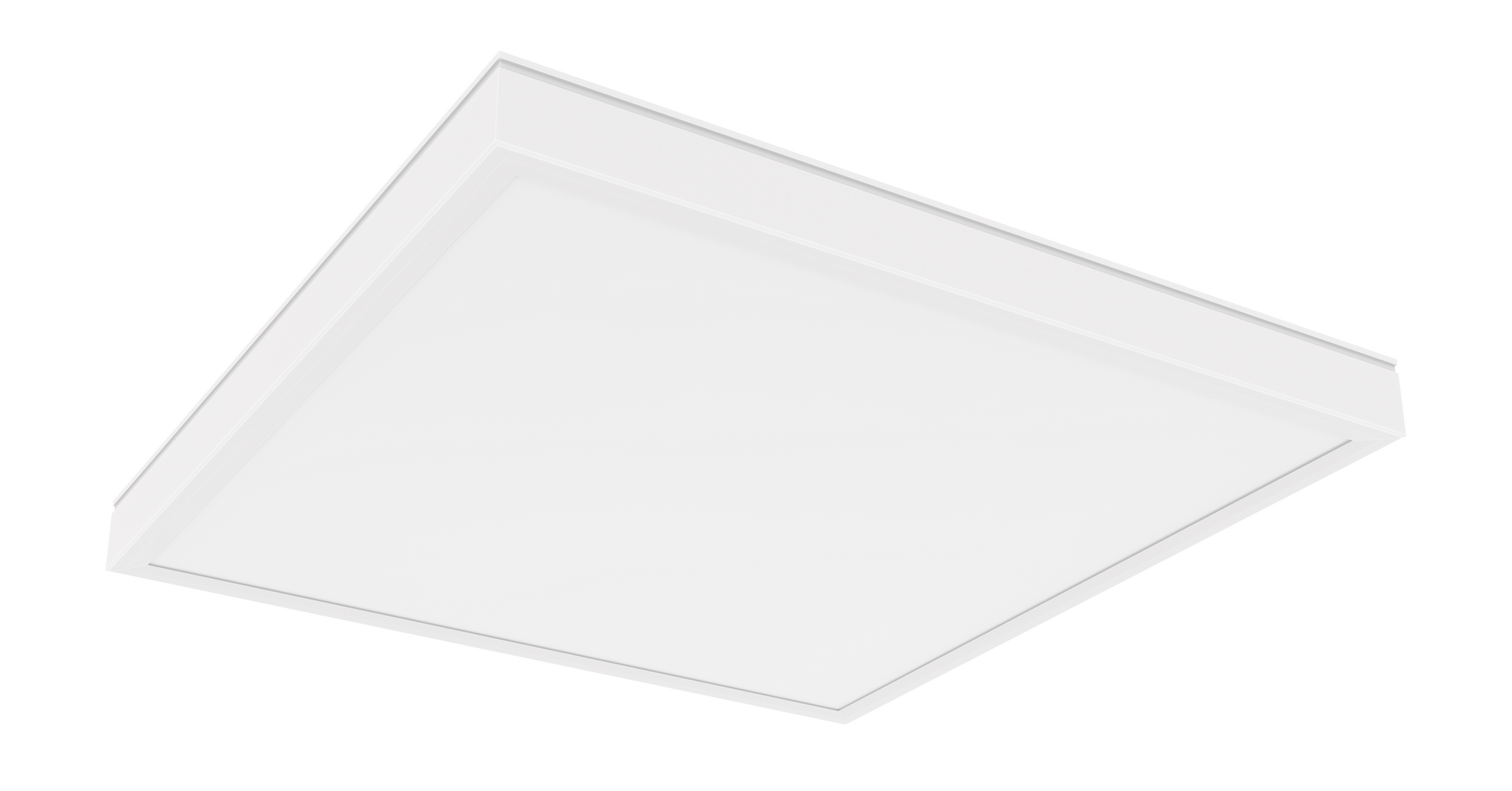

1x1 surface mount panel

1X1 Surface Mount Panel

30,35,41,50,65k
Dimmable
1400/1800/2200 Lumens
12/16/20 Watts
120-277 V
View full details

Information

General Specs
Product Code
G-12020
Description
GL/SM/1X1/20W/WS3/LED/5CCT
shape
1X1
finish
White
diffuser
Frosted
number of lights
1
OD (Outside dimensions)
11.92" X 11.92"
height
1.06"
mounting
Surface mount
Packaging Information
master pack
4
Barcode
024441120202
Light Specs
temp
Selectable CCT
Color (CCT)
30,35,41,50,65K
lumens
1400/1800/2200
CRI
80
beam spread deg
120°
Electrical Specs
watt
12/16/20W
volts
120-277V
output current
100-500mA
dimming type
0-10V Dimming
Compliance
location rating
Wet
warranty
5 Years
classification
ETL, Title 24, Energy Star

Downloads

Product Spec Family Sheet Instruction Sheet

Accessories

Emergency LED Driver
G-48410 (15W) G-48411 (30W) G-95521 (60W) G-95525 (25W)
