G-20463
3" square trimless drop lens
3" Square Trimless Drop Lens
Dimmable
700/1000 Lumens
10/15 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-20463
Description
DL3/15W/SQ/2WS/5CCT/TL
shape
Square
style
Trimless
size
3 Inch
finish
White
diffuser
Frosted
number of lights
1

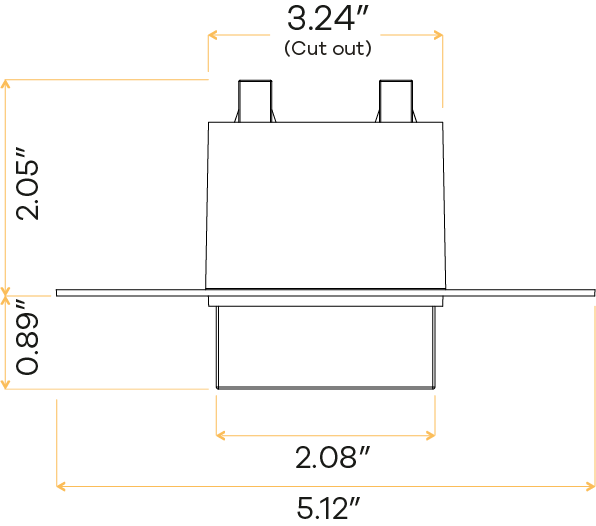

cutout
Sq 2.45” - Rd 3.24”

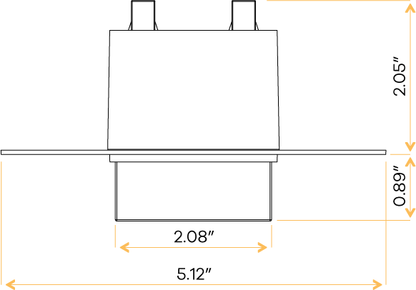

OD (Outside dimensions)
5.12"
height
2.05"
lens width
2.08"
lens drop
0.98"
mounting
Clip-in
Packaging Information
master pack
18
Barcode
990379204638
Light Specs
temp
Selectable CCT
Color (CCT)
27,30,35,41,50K
lumens
700/1000
CRI
>90
beam spread deg
130°
Electrical Specs
watt
10/15W
volts
120-277V
output current
230/355mA
plenum rated
FT6
dimming type
Triac Or 0-10V Dimming
Compliance
location rating
Wet Location
warranty
3 Years
classification
ETL, Title24 Listed
IES
