G-20453
3" round trimless drop lens
3" Round Trimless Drop Lens
Dimmable
700/1000 Lumens
10/15 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-20453
Description
DL3/15W/RD/2WS/5CCT/TL
Shape
Round
Style
Trimless
Size
3 Inch
Finish
White
Diffuser
Frosted
Number of Lights
1

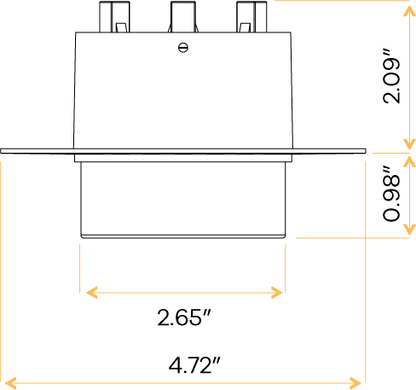

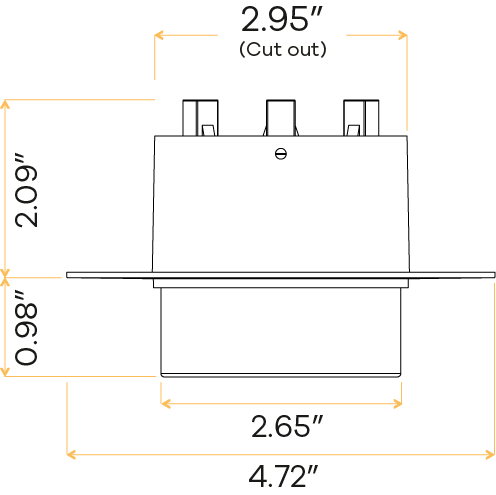

Cutout
2.95"
OD (Outside dimensions)
4.72"
Height
2.09”
Lens Width
2.65"
Lens Drop
0.98"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
990379204539
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
700/1000
CRI
>90
Beam Spread Deg
130°
Electrical Specs
Watt
10/15W
Volts
120-277V
Output Current
230/355mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet Location
Warranty
3 Years
Classification
ETL, Title24 Listed
IES
