G-20454
4" round trimless drop lens
4" Round Trimless Drop Lens
Dimmable
1200/1700 Lumens
15/20 Watts
120-277 V
Couldn't load pickup availability
Information
General Specs
Product Code
G-20454
Description
DL4/20W/RD/2WS/5CCT/TL
Shape
Round
Style
Trimless
Size
4 Inch
Finish
White
Diffuser
Frosted
Number of Lights
1

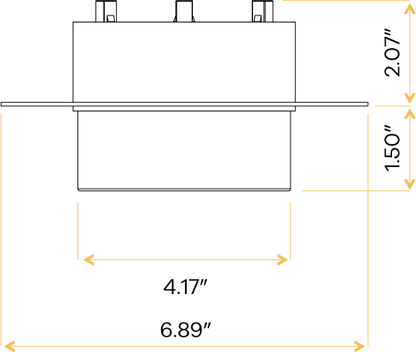

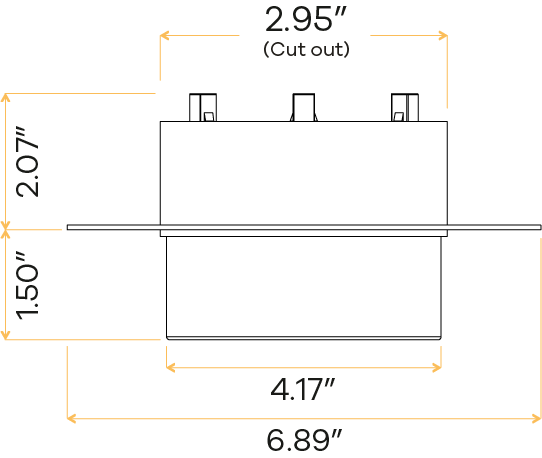

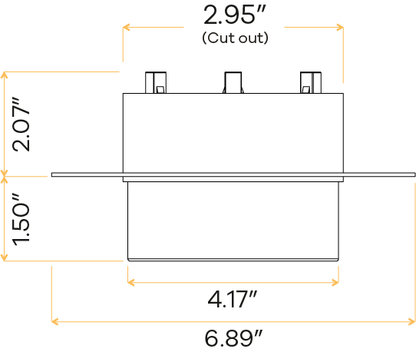

Cutout
4.17”
OD (Outside dimensions)
6.89"
Height
2.07"
Lens Width
4.17"
Lens Drop
1.50"
Mounting
Clip-in
Packaging Information
Master pack
18
Barcode
990379204546
Light Specs
TEMP
Selectable CCT
Color (CCT)
27,30,35,41,50K
LUMENS
1200/1700
CRI
>90
Beam Spread Deg
130°
Electrical Specs
Watt
15/20W
Volts
120-277V
Output Current
355/515mA
Plenum Rated
FT6
Dimming Type
Triac Or 0-10V Dimming
Compliance
Location Rating
Wet Location
Warranty
3 Years
Classification
ETL, Title24 Listed
IES
